2-21
2 Installing the NB Unit and Connecting Peripheral Devices
NB-series Programmable Terminals Setup Manual(V107)
2-4 Serial Communication Connection
2
2-4-3 Settings for each Unit
Base-mounted type for C200HE(-Z) / C200HG(-Z) / C200HX(-Z) models
C200H-LK201/LK202-V1 model
Settings for the Switches

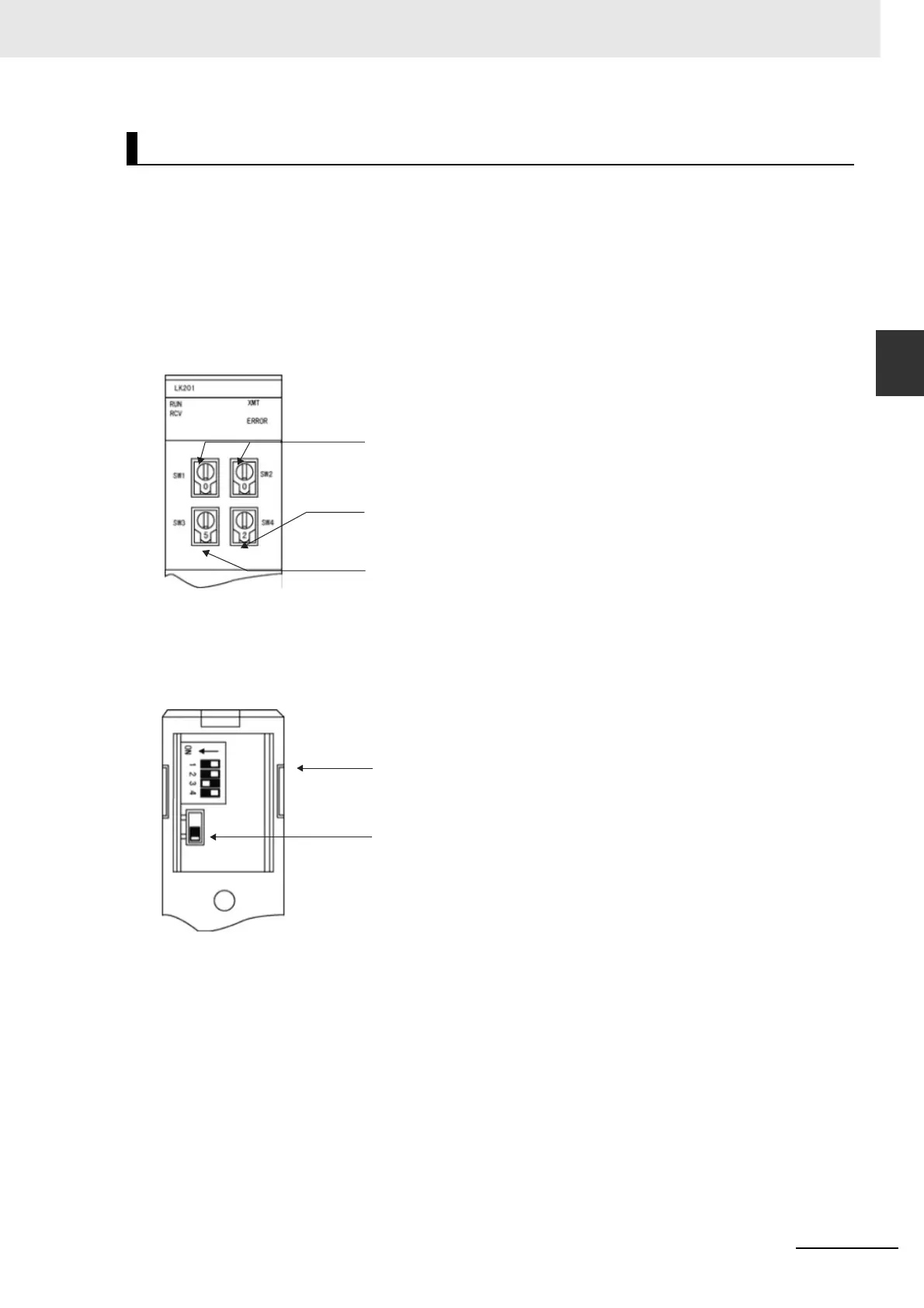

• For C200H-LK201-V1 (RS-232C)
[Front-side switches]
Each switch is a rotary switch. Use a straight screwdriver set the switches as follows to display the
numbers and symbols shown in the table.
[Back-side switches]
When connecting to Host Link Units of C-Series
• Set unit number (SW1, SW2)
SW1 and SW2 set to [0]
• Communication speed setting (SW3)
4,800Bit/s: Set SW3 to [4]
9,600Bit/s: Set SW3 to [5]
19,200Bit/s: Set SW3 to [6]
• Command level, parity check, transmit code setting (SW4)
SW4 set to [2]
• Link Type switch
Set SW3 to [ON] “1 to 1”
• CTS switch setting
Default set to [OV] (ON)
