Using NQ-Designer Section 4-2
24
To add a tag proceed as follows.
•Click Tag ( )in the toolbar and click Add....

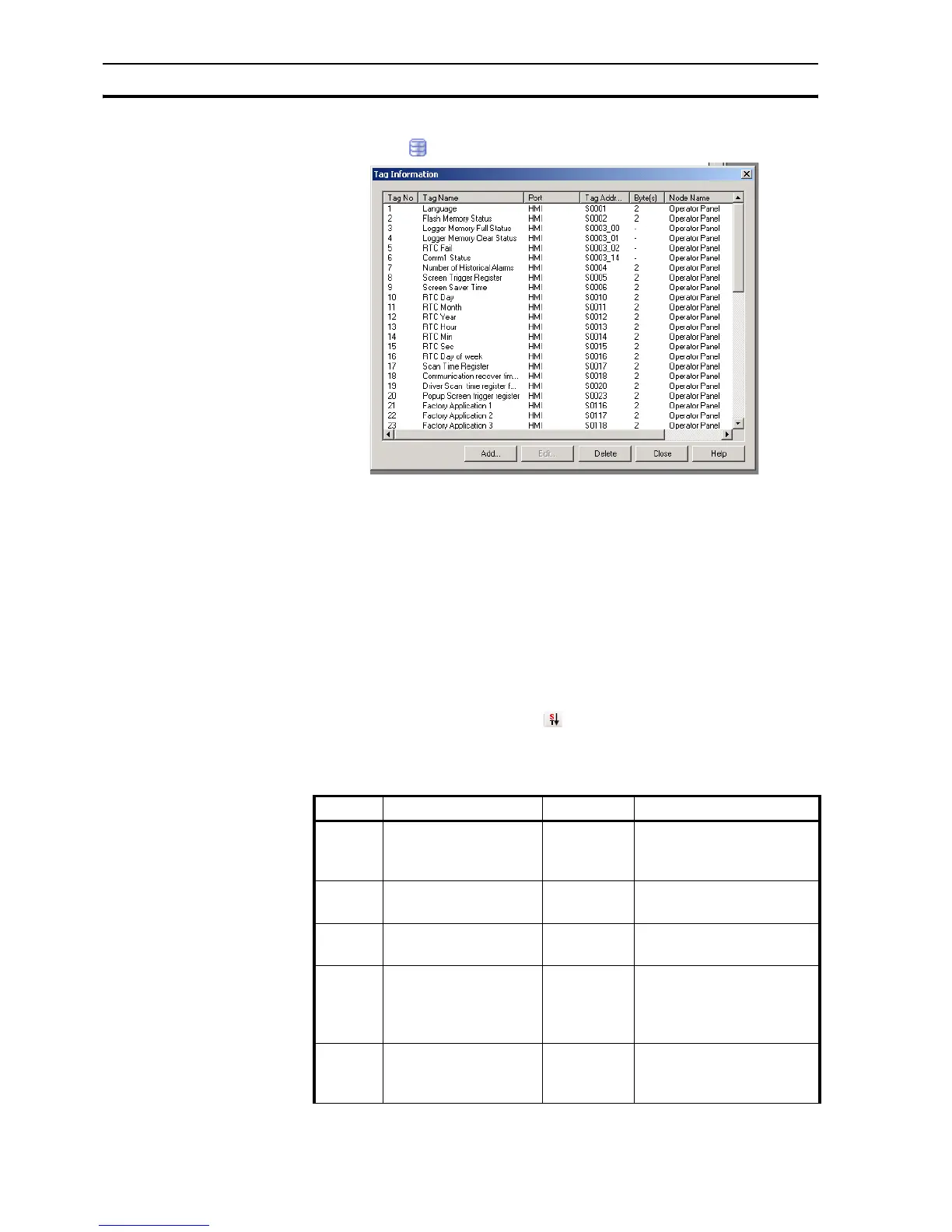

Figure 4.3: Tag information
• Enter Tag Name.
•Select Register/Coil Type.
•Select Tag Type.
•Select Auto Add to create a number of tags in sequence increasing by
word or by bit depending on tag choice. ( names can be edited afterwards)
•Select 2-Bytes (1-word).
Default system tags
The following tables contain the default system tags. Do not attempt to modify
or delete the system tags. This could affect the functionality of the NQ-Serie.
On the toolbar you find a button ( ) that allows you to display all tags or
user created tags shown in your tag list.
/i
Table 4.3: Default system tags (words)
Register Tag name Read/Write Description
S0001 Language Read/Write Writing a value will change
languages in multi language
supported objects (texts).
S0002 Flash memory status Read Shows percentage used of
logger memory.
S0004 Number of historical
alarms
Read Shows number of alarms
stored in history.
S0005 Screen trigger register Read/Write Shows active screen.
Change screen by writing a
valid screen number in the
register.
S0006 Screen saver time Read/Write The screen saver time (Sec)
can be changed during
operation.
