Appendix A
A-1 OMRON to NQ-Series configurations
A-1-1 NQ with OMRON Host Link Driver to OMRON CP1L PLC
To perform a successful communication proceed as follows.
1 Create a new project in NQ-Designer.

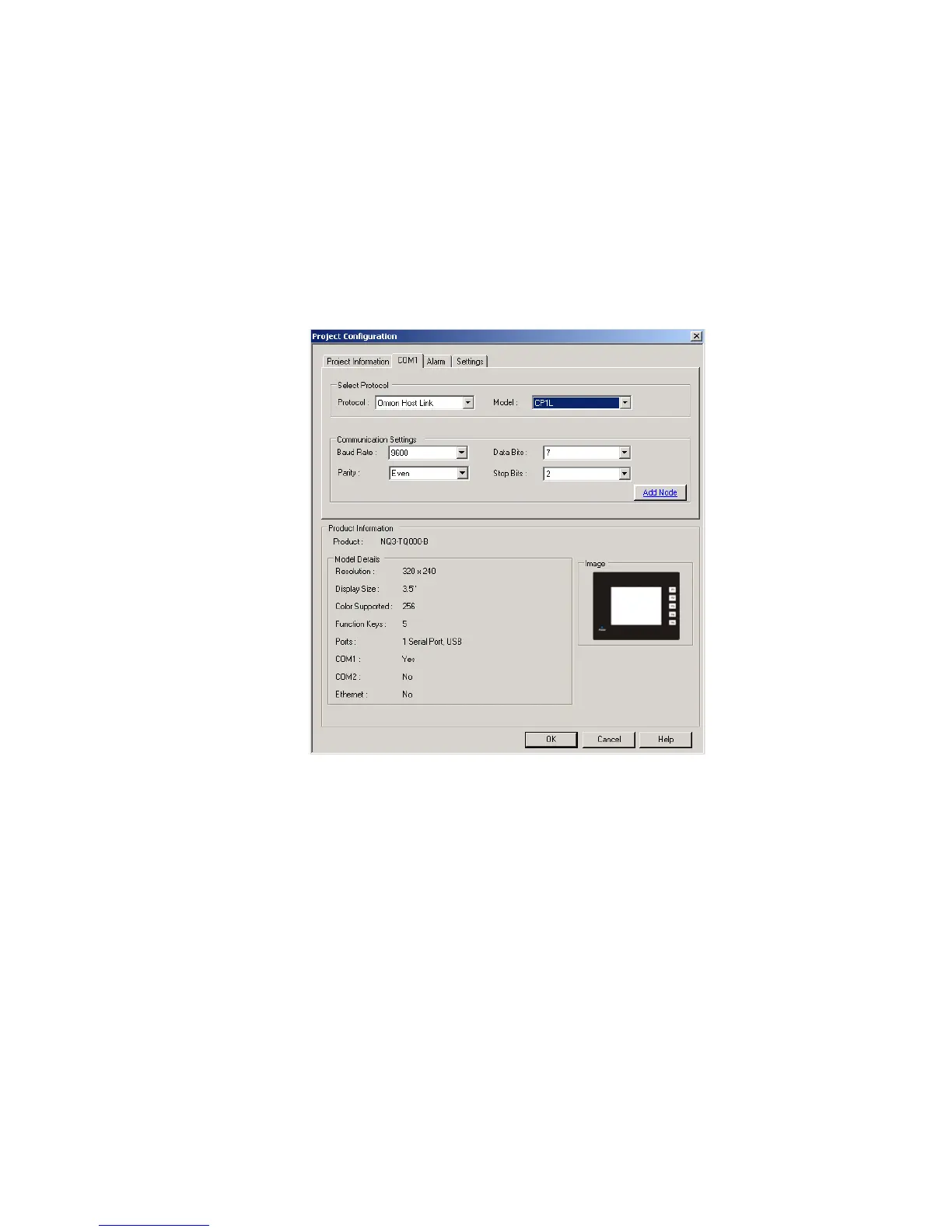

2 Add a Hostlink Node and settings as below and click Add...
3 Set all data as shown in the screenshot.
4 Create PLC tag with address DM0000.
5Add a Numerical Data Entry object with tag address DM0000 to screen1.
6 Download the application and firmware to the NQ-Series.
7 Open CX-Programmer.
8 Create a new project.
9 Select CP1L and click OK.
10 Double-click Settings in the project panel.
11 Click Serial Port 1 tab.
To Next Page
