120
A-4 Non-Omron devices communication cables
The non-Omron devices communication cables are not available from OMRON.

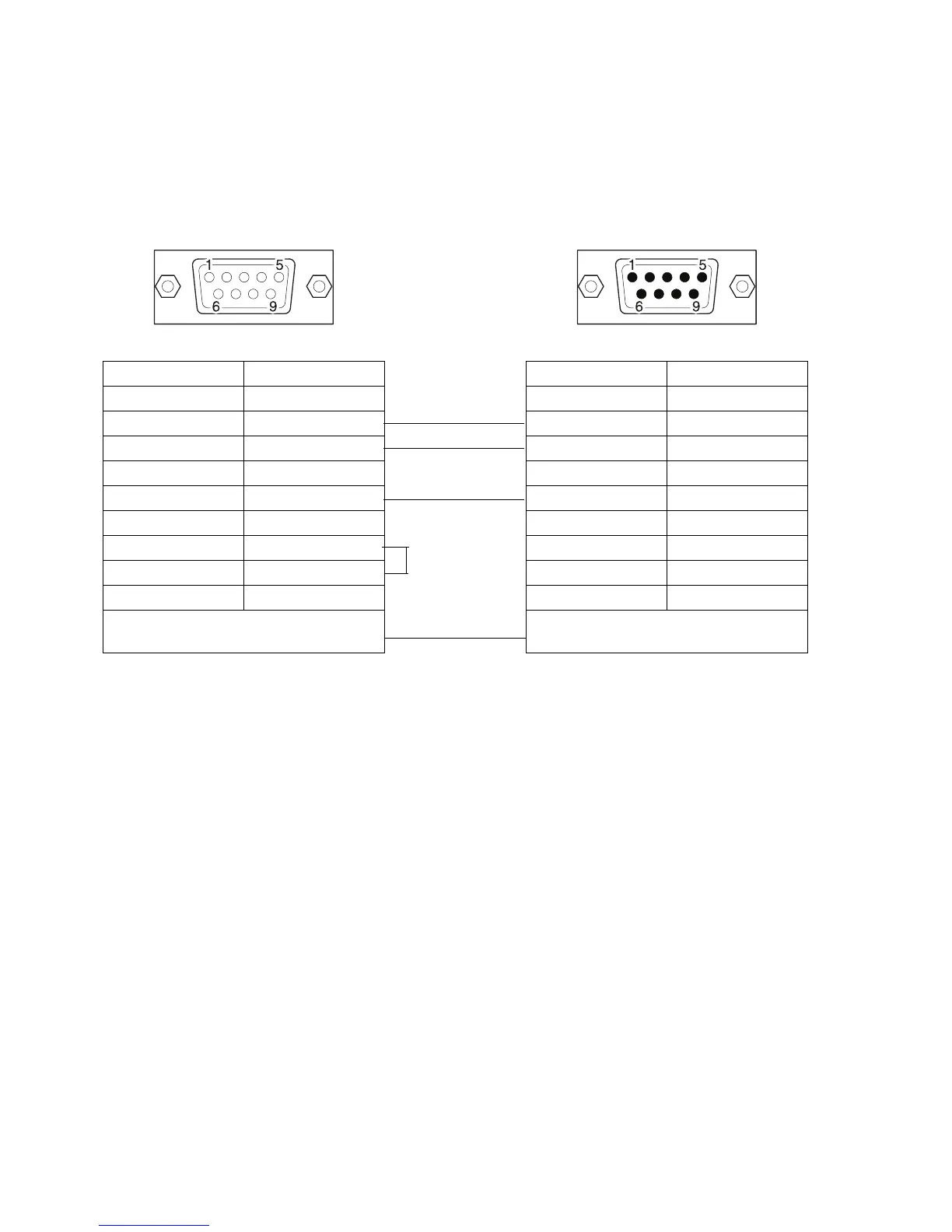

A-4-1 NQ to AB SLC Series
/i
DB9 FEMALE PINOUTS (PLC) DB9 MALE PINOUTS (NQ)
Signals Pin number Pin number Signals
11
RXD 2 2 TXD
TXD 3 3 RXD
44
SG 5 5 SG
66
RTS 7 7
CTS 8 8
99
Shield wire to DB9 body Shield wire to DB9 body
