Uploading Section 5-2
52
5-2 Uploading
An existing application can be uploaded from the NQ-Series to NQ-Designer.
During the upload process the communication to the PLC is disconnected.
After the Upload has finished the NQ-Series will restart.
5-2-1 Uploading options
The following options can be selected:
Application
Logged Data
Historical alarm data
5-2-1-1 Application option
If this option is selected, only the application will be uploaded from the NQ-
Series to NQ-Designer.
Tag names and screen names are only uploaded if Downloading Tag names
is selected on the Settings tab on the Project Configuration dialog. If this
option is not selected the tag names and screen names are uploaded with
default names.

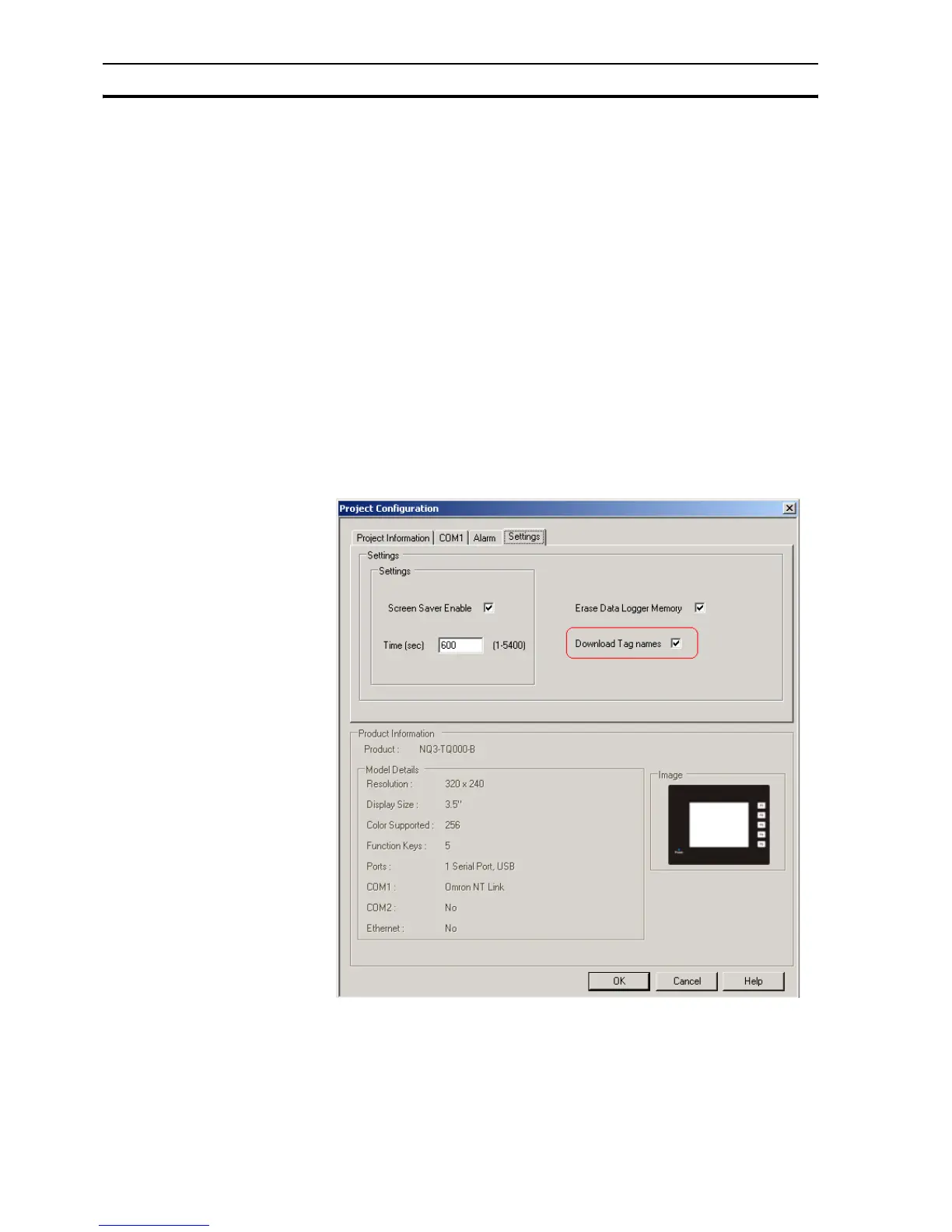

Figure 5.2: Project configuration
5-2-1-2 Logged Data option
If this option is selected, only the logged data will be uploaded from the NQ-
Series. This option must be selected in combination with the Application
option. The logged data is displayed in CSV format.
