Note 3. Supply 24 V DC to the two wires (black and red) that are taken out from the Controller’s connector. (Red
is + and black is –.)
H General Control Cables (R88A-CPWjS)
A General Control Cable is connected to the Servo Driver’s Control I/O Connector (CN1). There is no
connector on the Controller end. When connecting it to a Position Control Unit with no special cable
provided, or to a controller manufactured by another company, wire a connector to match the controller.
Note There is one method for connecting to a Controller with no special cable provided, and another
method for using connector Terminal Block cable and a connector Terminal Block.
D Cable Models
Model Length (L) Outer diameter of sheath Weight
R88A-CPW001S 1 m
12.8 dia.
Approx. 0.3 kg
R88A-CPW002S 2 m Approx. 0.6 kg

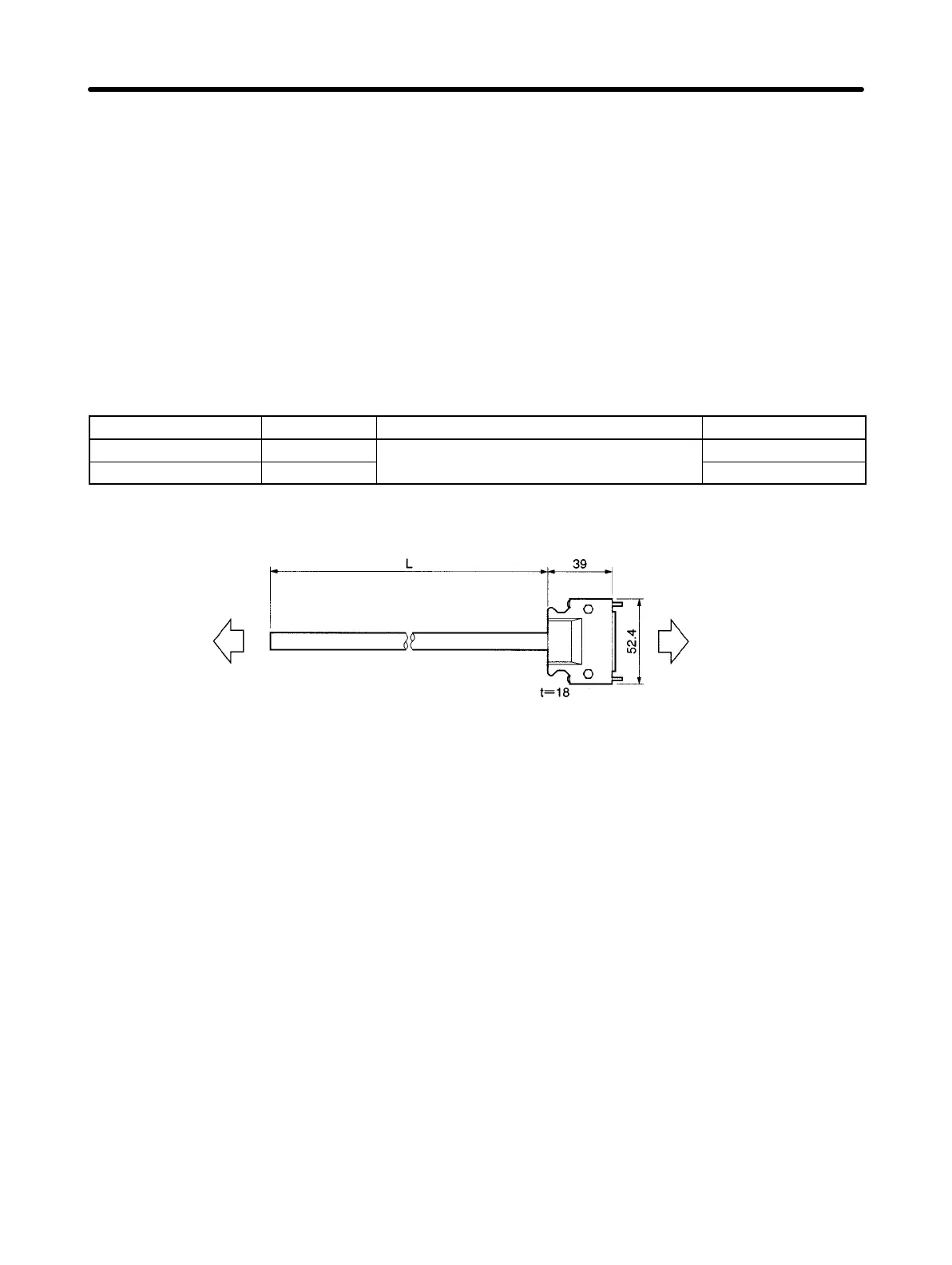

D Connection Configuration and External Dimensions
Controller
Servo Driver
R88D-WTj
Standard Models and Specifications Chapter 2
To Next Page
