2-129
Precautions

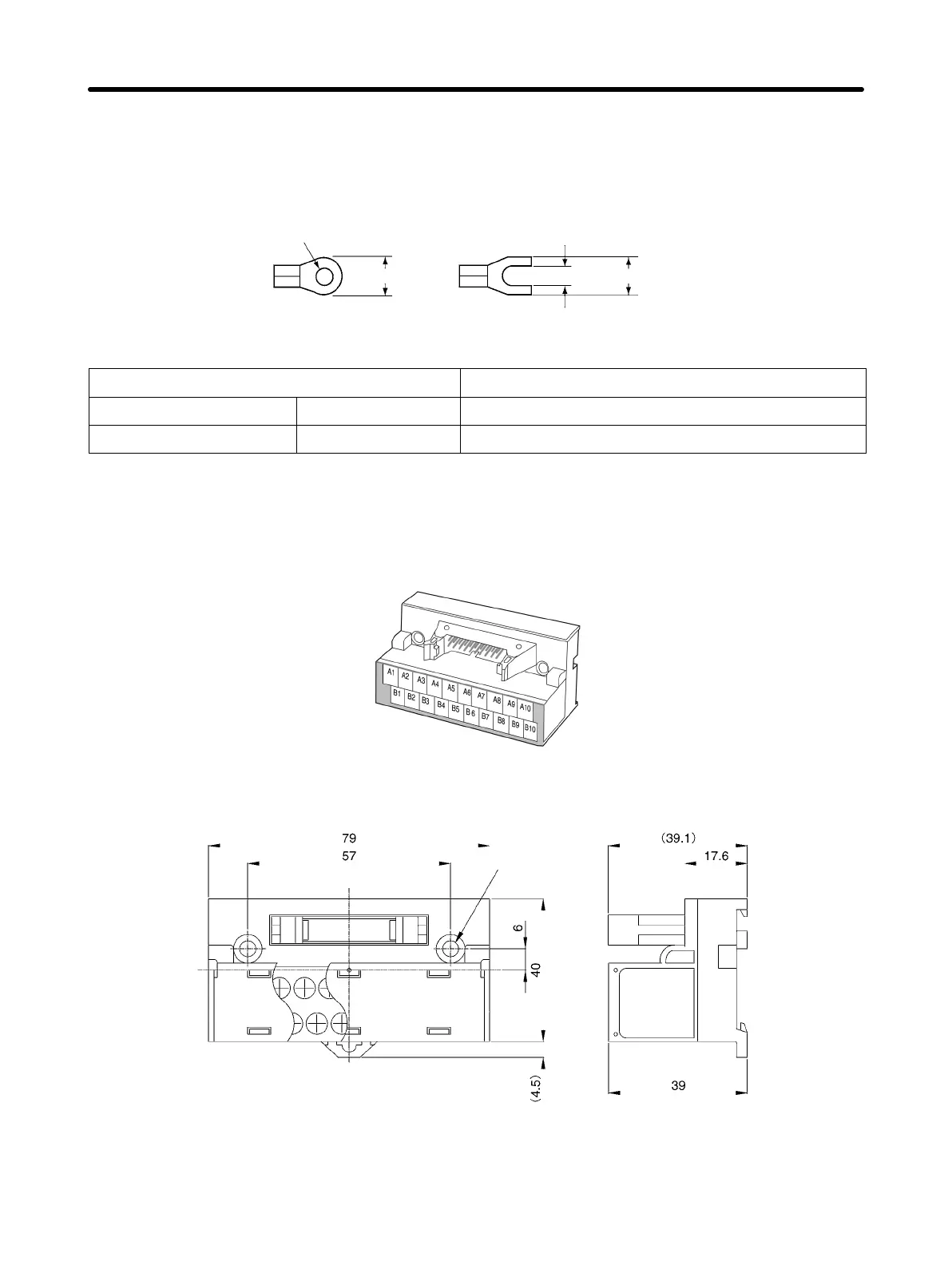

• When using crimp terminals, use crimp terminals with the following dimensions.
Round Crimp Terminals
Dia: 3.7 mm
6.8 mm max. 3.7 mm
6.8 mm max.
Fork Crimp Terminals
Applicable Crimp Terminals Applicable Wires
Round Terminals 2 to 3.5 AWG16 to AWG14 (1.25 to 2.0 mm
2
)
Fork Terminals 2Y to 3.5 AWG16 to AWG14 (1.25 to 2.0 mm
2
)
D Terminal Blocks
XW2D-20G6
The XW2D-20G6 is an M3 screw terminal block.
D External Dimensions
Two, 4.5 dia.
Standard Models and Specifications Chapter 2
