H R88A-CAWDjR
The R88A-CAWDjR Cables are for 3,000-r/min Servomotors (3 to 5 kW), 1,000-r/min Servomotors
(1.2 to 3 kW), and 1,500-r/min Servomotors (1.8 to 4.4 kW).
D Cable Models
For Servomotors without Brakes
Model Length (L) Outer diameter of sheath Weight
R88A-CAWD003SR 3 m
13.5 dia.
Approx. 1.1 kg
R88A-CAWD005SR 5 m Approx. 1.7 kg
R88A-CAWD010SR 10 m Approx. 3.3 kg
R88A-CAWD015SR 15 m Approx. 4.9 kg
R88A-CAWD020SR 20 m Approx. 6.4 kg
R88A-CAWD030SR 30 m Approx. 9.5 kg
R88A-CAWD040SR 40 m Approx. 12.6 kg
R88A-CAWD050SR 50 m Approx. 15.7 kg
For Servomotors with Brakes
Model Length (L) Outer diameter of sheath Weight
R88A-CAWD003BR 3 m
16.5 dia.
Approx. 1.7 kg
R88A-CAWD005BR 5 m Approx. 2.6 kg
R88A-CAWD010BR 10 m Approx. 4.9 kg
R88A-CAWD015BR 15 m Approx. 7.2 kg
R88A-CAWD020BR 20 m Approx. 9.4 kg
R88A-CAWD030BR 30 m Approx. 14.1 kg
R88A-CAWD040BR 40 m Approx. 18.7 kg
R88A-CAWD050BR 50 m Approx. 23.3 kg

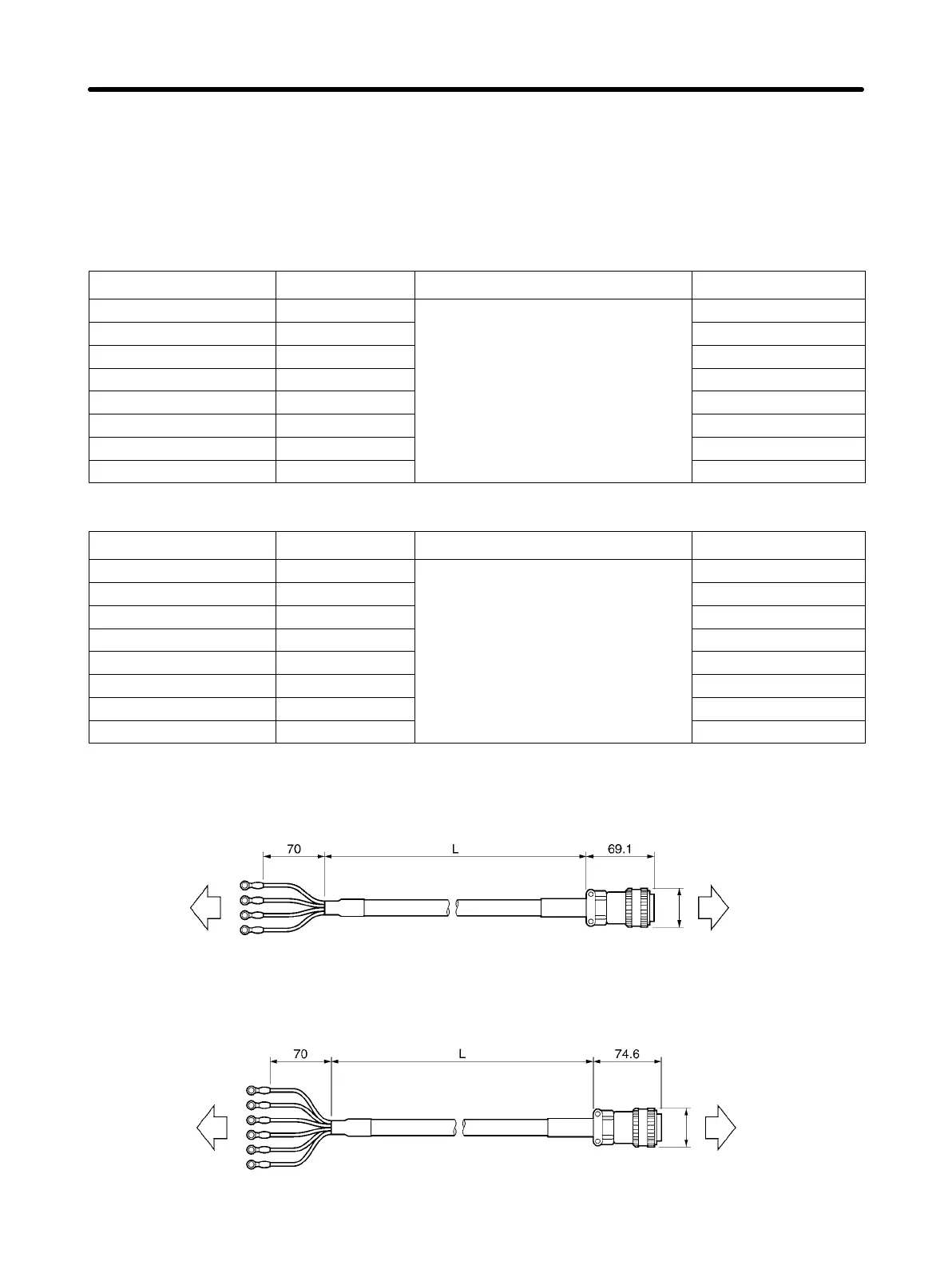

D Connection Configuration and External Dimensions
For Servomotors without Brakes
Servo Driver Servomotor
R88D-WTj
R88M-Wj
40.5 dia.
For Servomotors with Brakes
D Wiring
Servo Driver Servomotor
R88D-WTj
R88M-Wj
43.6 dia.
