D Wiring
Connector socket:
DF11-4DS-2C (Hirose Electric)
Connector contacts:
DF11-2428SCF (Hirose Electric)
Cable: AWG24 × 4C UL1007
Servo Driver
Red
White
Black
Black
Symbol

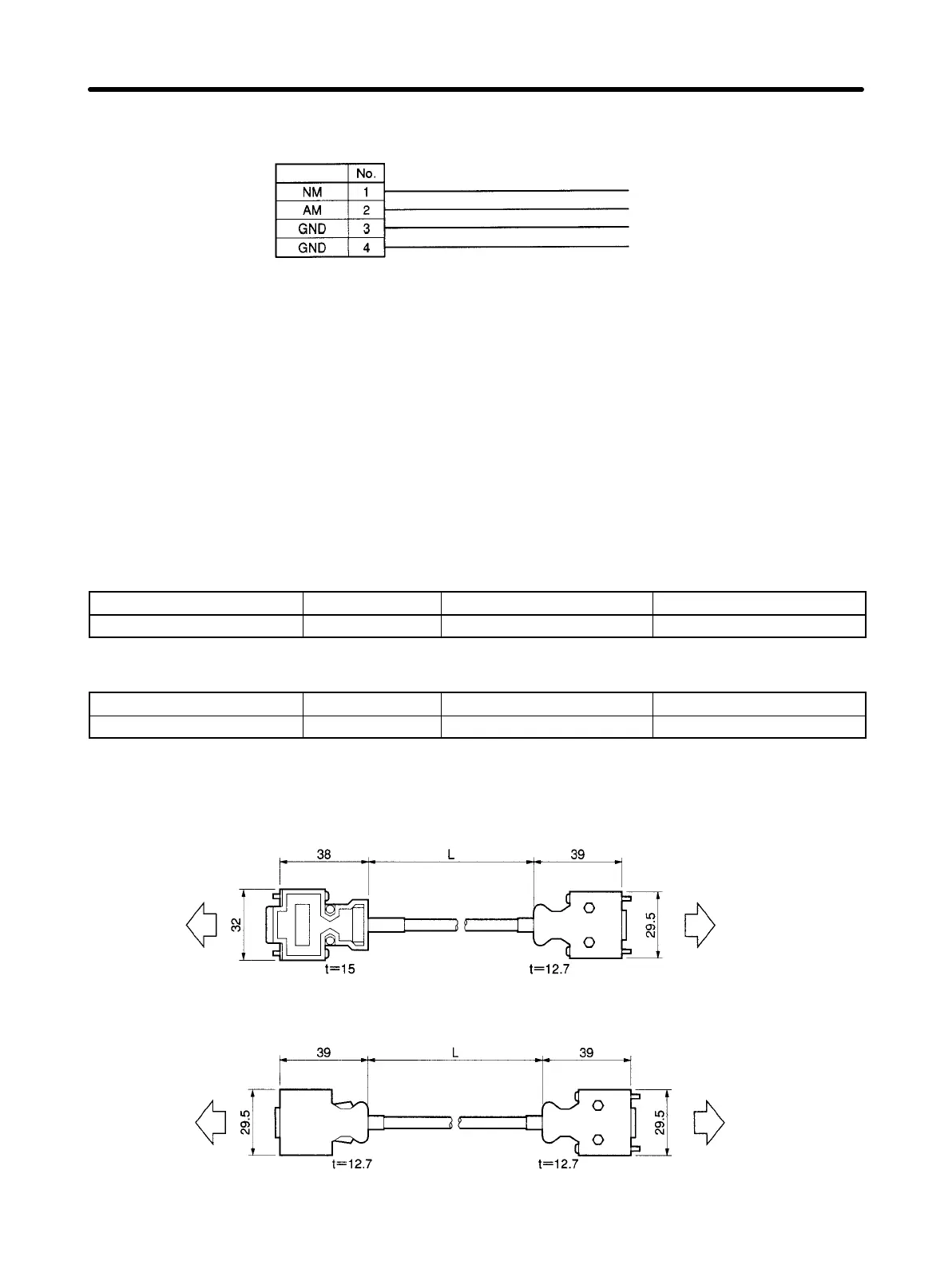

H Computer Monitor Cables (R88A-CCW002jP)
Computer Monitor Cable and computer monitoring software (run on Windows95) for OMNUC W-series
Servo Drivers are required in order to use a personal computer for monitoring and setting parameters
for a Servo Driver. There are two kinds of cable, one for DOS/V computers, and the other for NEC PC98
notebook computers (but not for PC98 desktop computers).
D Cable Models
For DOS/V Computers
Model Length (L) Outer diameter of sheath Weight
R88A-CCW002P2 2 m 6 dia. Approx. 0.1 kg
For NEC PC98 Notebook Computers
Model Length (L) Outer diameter of sheath Weight
R88A-CCW002P3 2 m 6 dia. Approx. 0.1 kg
D Connection Configuration and External Dimensions
For DOS/V Computers
Personal
computer
(DOS/V)
Servo Driver
R88D-WTj
For NEC PC98 Notebook Computers
Servo Driver
R88D-WTj
Notebook
computer
(NEC PC98)
Standard Models and Specifications Chapter 2
