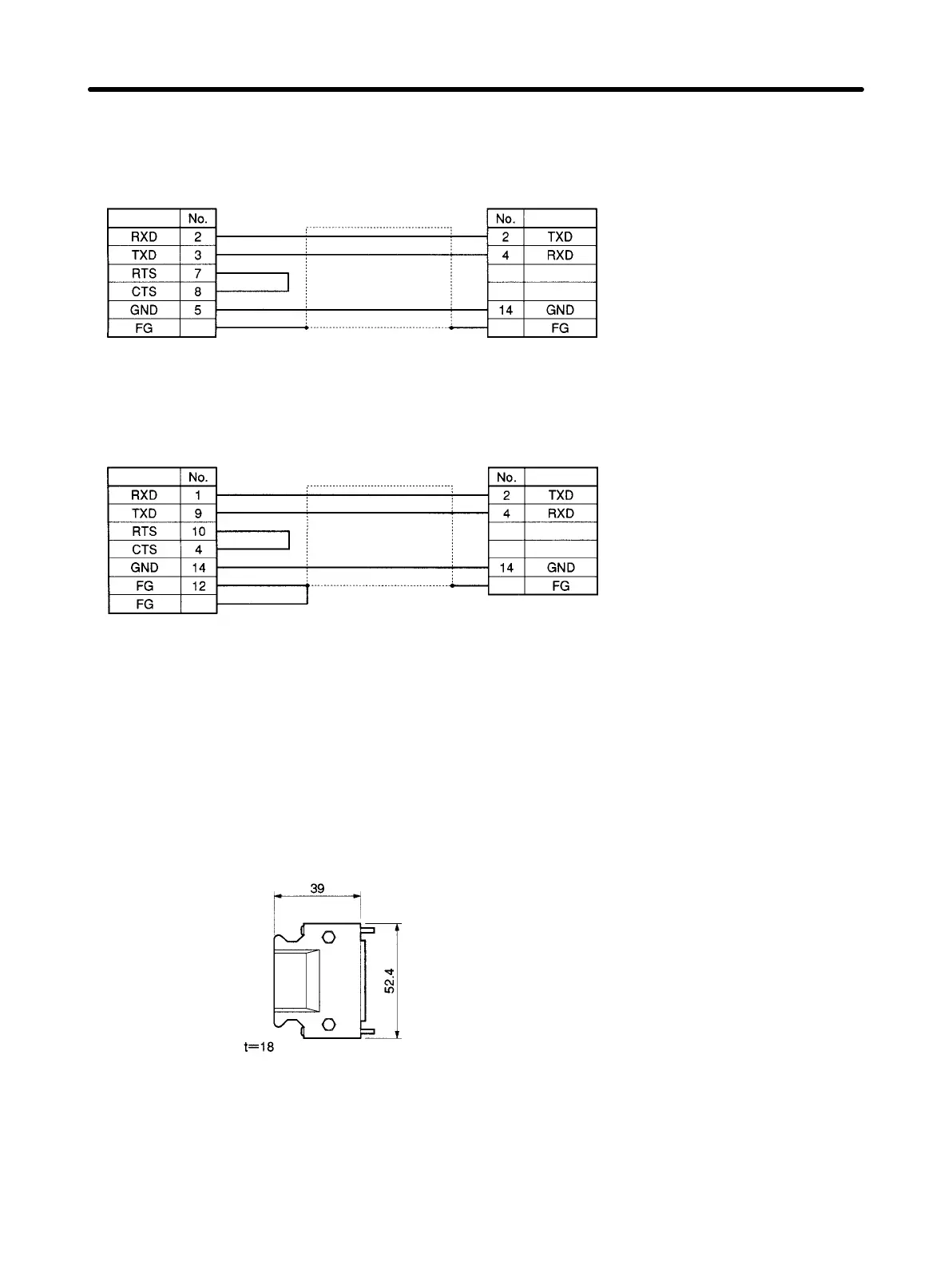

D Wiring
For DOS/V Computers
Computer
Symbol
Symbol
Connector plug:
10114-3000VE (Sumitomo 3M)
Connector case:
10314-52A0-008 (Sumitomo 3M)
Connector:
17JE-13090-02 (D8A) (DDK Ltd.)
Cable: AWG26 × 3C UL2464
Servo Driver
ShellShell
For NEC PC98 Notebook Computers
Computer
Symbol
Symbol
Connector plug:
10114-3000VE (Sumitomo 3M)
Connector case:
10314-52A0-008 (Sumitomo 3M)
Cable: AWG26 × 3C UL2464
Servo Driver
Shell
Shell
Connector plug:
10114-3000VE (Sumitomo 3M)
Connector case:
10314-52F0-008 (Sumitomo 3M)
H Control I/O Connector (R88A-CNU11C)
This is the connector for connecting to the Servo Driver’s Control I/O Connector (CN1). This connector
is used when the cable is prepared by the user.
D External Dimensions
Connector plug:
10150-3000VE (Sumitomo 3M)
Connector case:
10350-52A0-008 (Sumitomo 3M)
H Encoder Connectors (R88A-CNW0VR)
These are the connectors for the encoder cable. These connectors are used when the cable is prepared
by the user. They are solder-type connectors. Use the following cable.
Standard Models and Specifications Chapter 2
