2-155
• Wire size: AWG16 max.
• Stripped outer diameter: 2.1 mm max.
• Outer diameter of sheath: 6.7 ± 0.5 mm

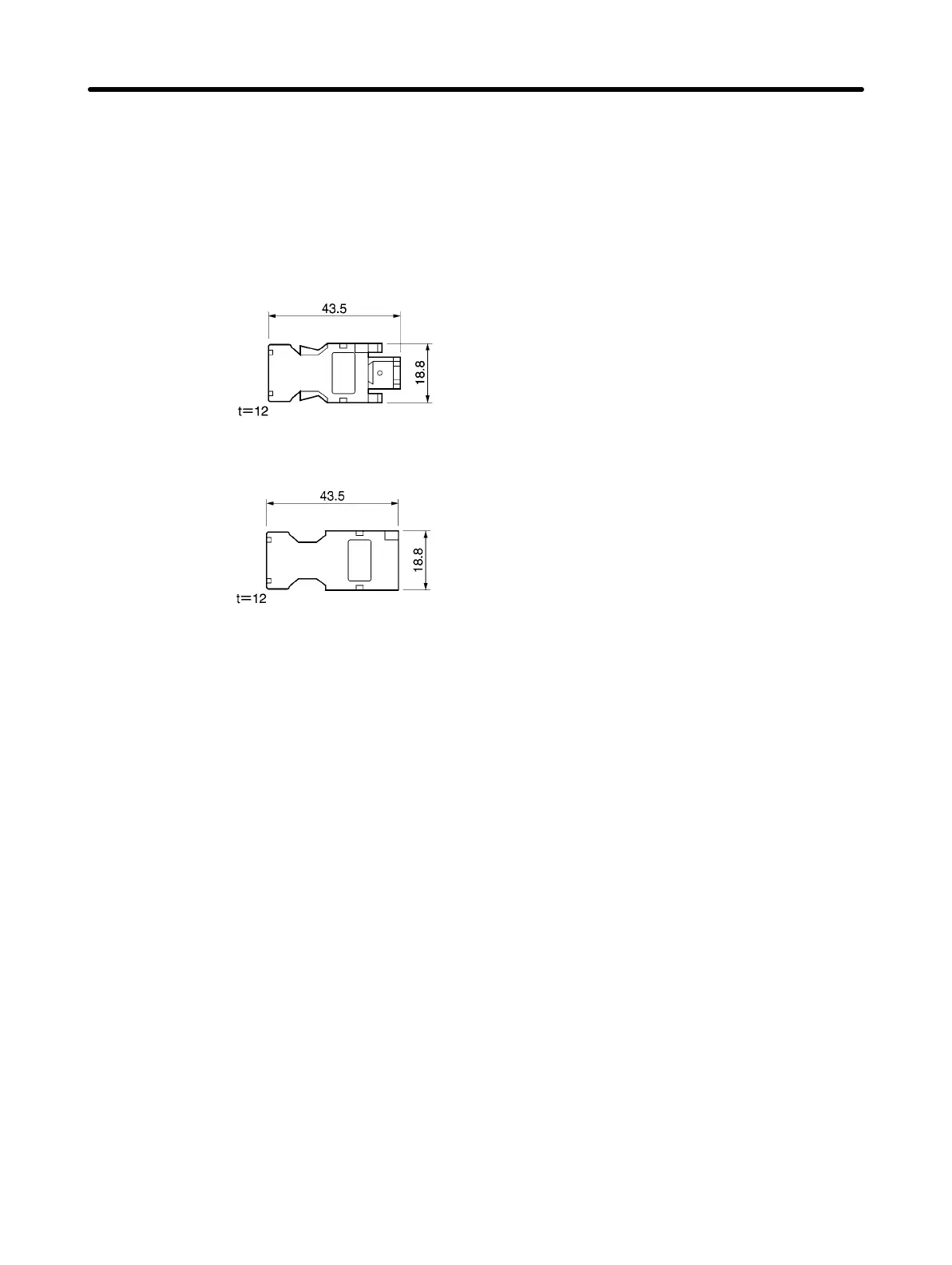

D External Dimensions
R88A-CNW01R (For Driver’s CN2 Connector)
Connector Plug Model Number
55100-0670 (Molex)
R88A-CNW02R (For Motor Connector)
Connector Plug Model Number
54280-0609 (Molex)
Standard Models and Specifications Chapter 2
