2-163

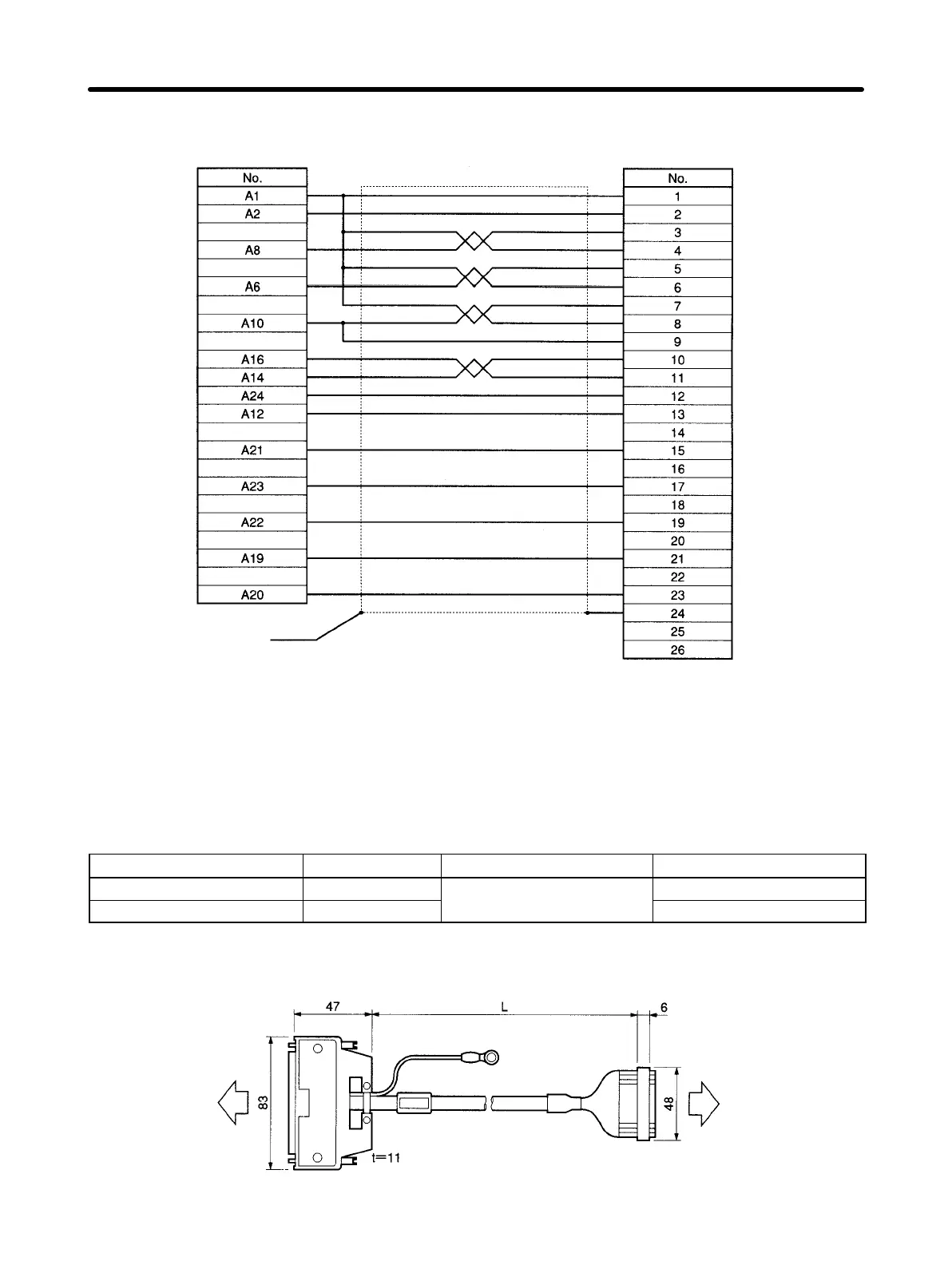

D Wiring
Position Control Unit
Cable: AWG28 × 4P + AWG28 ×10C
Servo Relay Unit
Crimp terminal
H Position Control Unit Cable (XW2Z-jJ-A7)
This is the cable for connecting between a CS1W-NC213, CS1W-NC413, C200HW-NC213 or
C200HW-NC413 Position Control Unit and an XW2B-40J6-2B Servo Relay Unit.
D Cable Models
Model Length (L) Outer diameter of sheath Weight
XW2Z-050J-A7 50 cm
10.0 dia.
Approx. 0.1 kg
XW2Z-100J-A7 1 m Approx. 0.2 kg
D Connection Configuration and External Dimensions
Position Control Unit
CS1W-NC213
CS1W-NC413
C200HW-NC213
C200HW-NC413
XW2B-40J6-2B
Servo Relay Unit
Standard Models and Specifications Chapter 2
