2-169
D Wiring
Position Control Unit

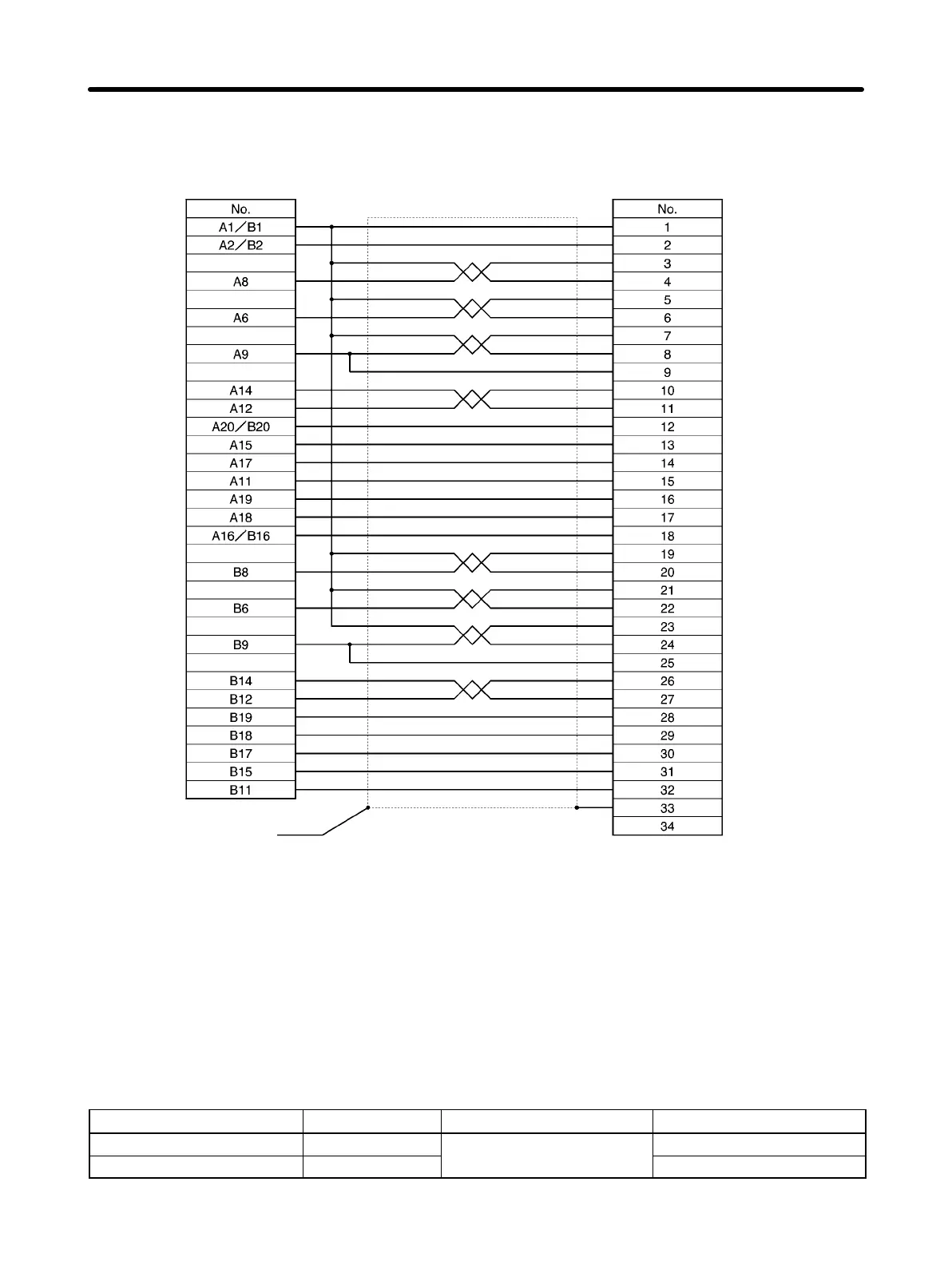

Cable: AWG28 × 8P + AWG28 ×16C
Servo Relay Unit
Crimp terminal
H Position Control Unit Cable (XW2Z-jJ-A18)
This is the cable for connecting between a CJ1W-NC133 Position Control Unit and an XW2B-20J6-1B
Servo Relay Unit.
D Cable Models
Model Length (L) Outer diameter of sheath Weight
XW2Z-050J-A18 50 cm
10.0 dia.
Approx. 0.1 kg
XW2Z-100J-A18 1 m Approx. 0.2 kg
Standard Models and Specifications Chapter 2
