2-170

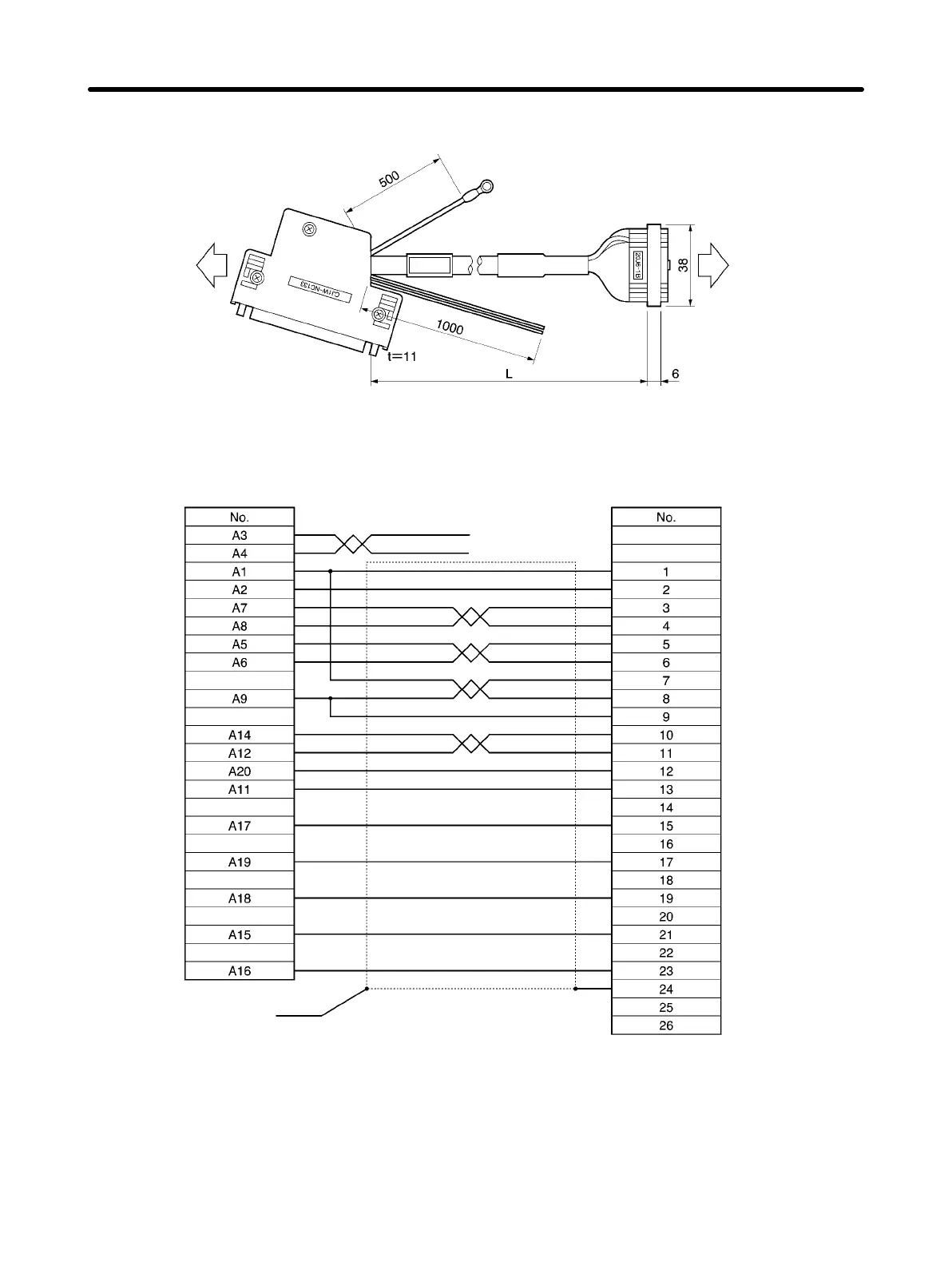

D Connection Configuration and External Dimensions
Position Control Unit
CS1W-NC133
XW2B-20J6-1B
Servo Relay Unit
D Wiring
Position Control Unit
Cable: AWG28 × 4P + AWG28 ×10C
Servo Relay Unit
Crimp terminal
AWG20, black
AWG20, red
H Position Control Unit Cable (XW2Z-jJ-A19)
This is the cable for connecting between a CJ1W-NC233/NC433 Position Control Unit and an
XW2B-40J6-2B Servo Relay Unit.
