2-174

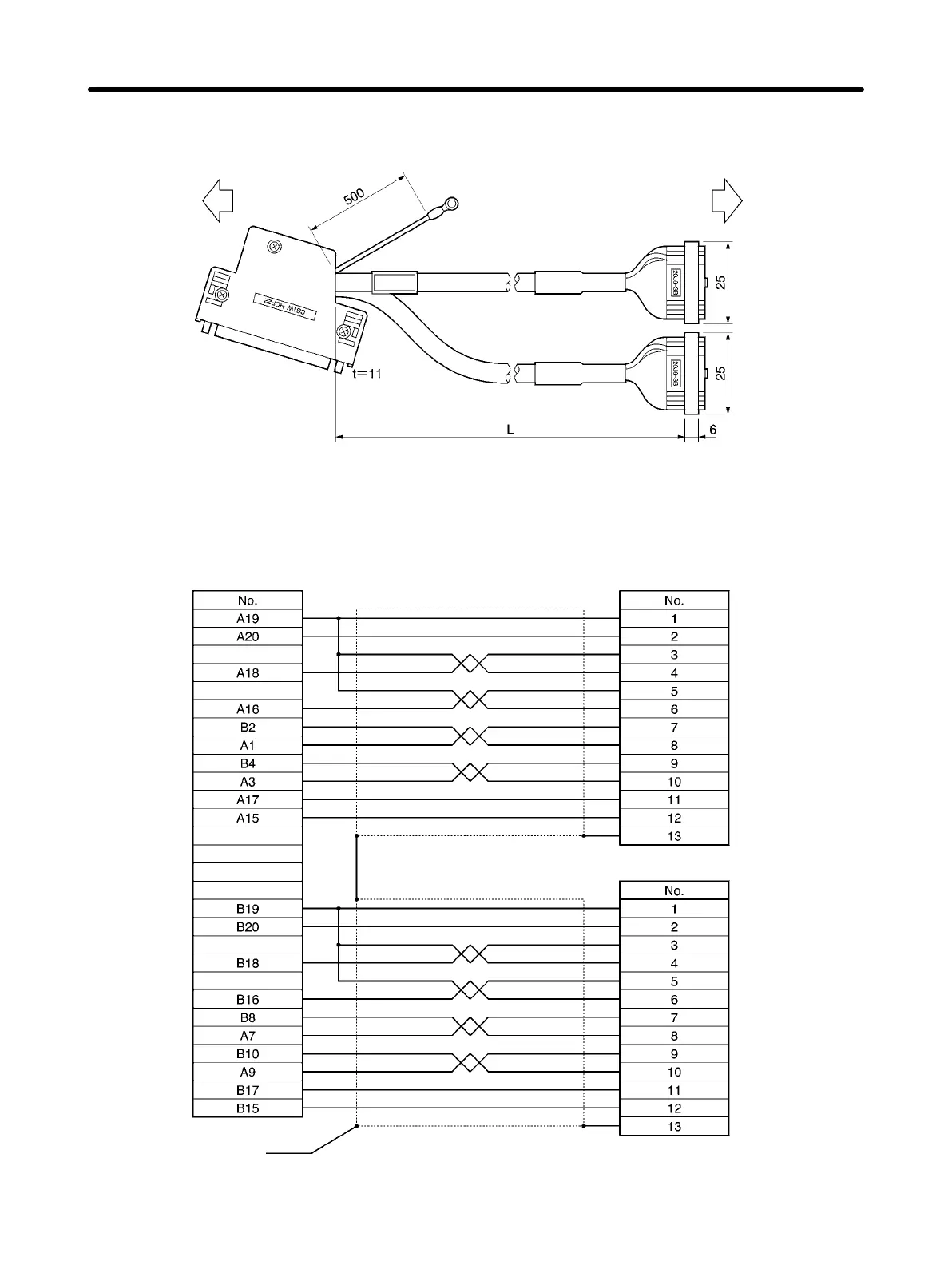

D Connection Configuration and External Dimensions
Position Control Unit
CS1W-HCP22-V1
XW2B-20J6-3B
Servo Relay Unit
D Wiring
Position Control Unit
Cable: AWG28 × 4P + AWG28 ×4C
Servo Relay Unit
Crimp terminal
Cable: AWG28 × 4P + AWG28 ×4C
Servo Relay Unit
Standard Models and Specifications Chapter 2
