2-175

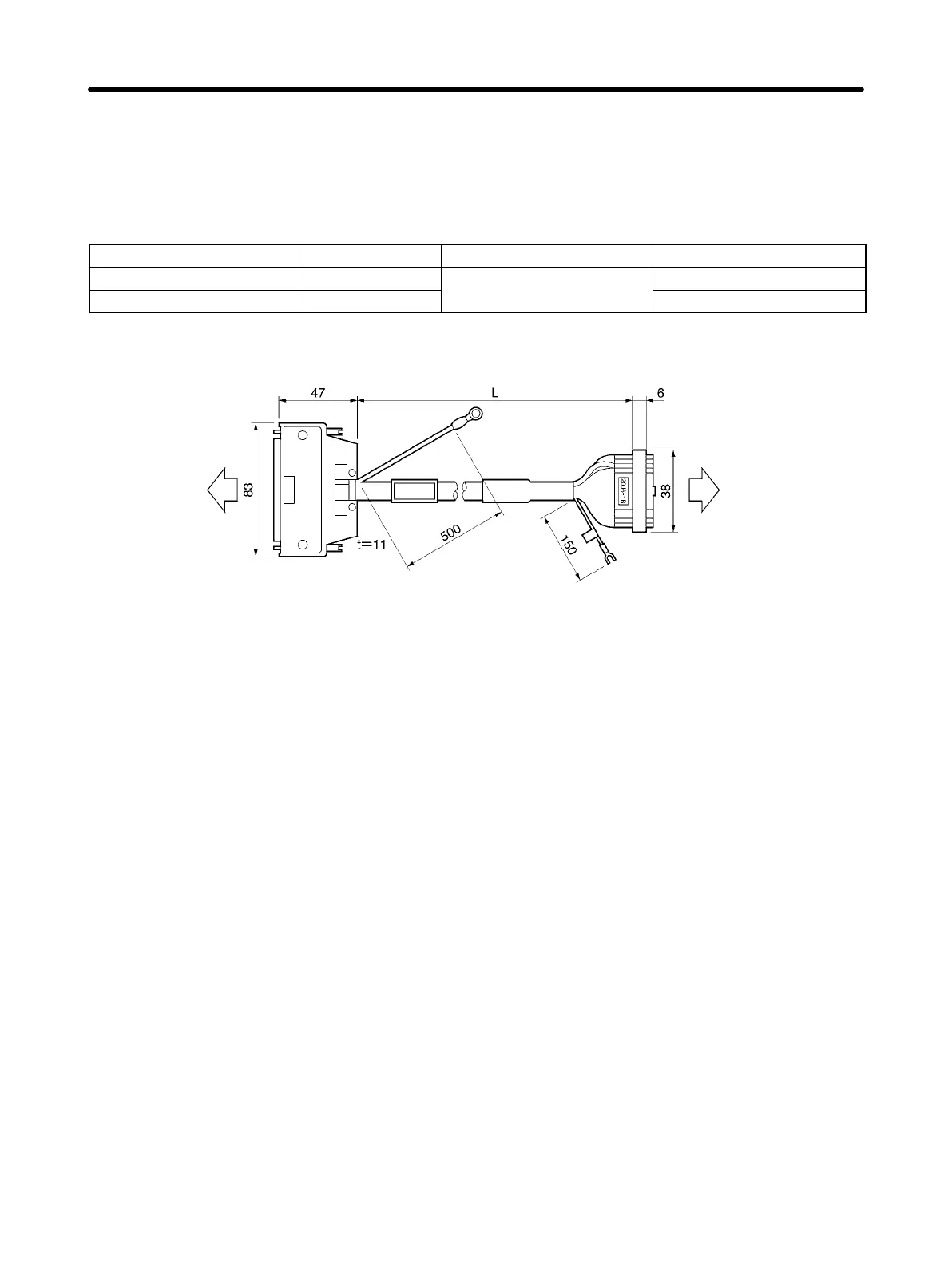

H Position Control Unit Cable (XW2Z-jJ-A24)
This is the cable for connecting between a 3F88M-DRT141 DeviceNet Single-axis Positioner and an
XW2B-20J6-1B Servo Relay Unit.
D Cable Models
Model Length (L) Outer diameter of sheath Weight
XW2Z-050J-A24 50 cm
10.0 dia.
Approx. 0.1 kg
XW2Z-100J-A24 1 m Approx. 0.2 kg
D Connection Configuration and External Dimensions
Single-axis
Positioner
3F88M-DRT141
XW2B-20J6-1B
Servo Relay Unit
Standard Models and Specifications Chapter 2
