H 3,000-r/min Servomotors with a Brake
D 100 V AC: 30 W/50 W/100 W
R88M-W03030L-B(S1)/-W05030L-B(S1)/-W10030L-B(S1) [Incremental]
R88M-W03030S-B(S1)/-W05030S-B(S1)/-W10030S-B(S1) [Absolute]
D 200 V AC: 30 W/50 W/100 W
R88M-W03030H-B(S1)/-W05030H-B(S1)/-W10030H-B(S1) [Incremental]
R88M-W03030T-B(S1)/-W05030T-B(S1)/-W10030T-B(S1) [Absolute]
Two, 4.3 dia.
46 dia.
30h7 dia.
S dia.

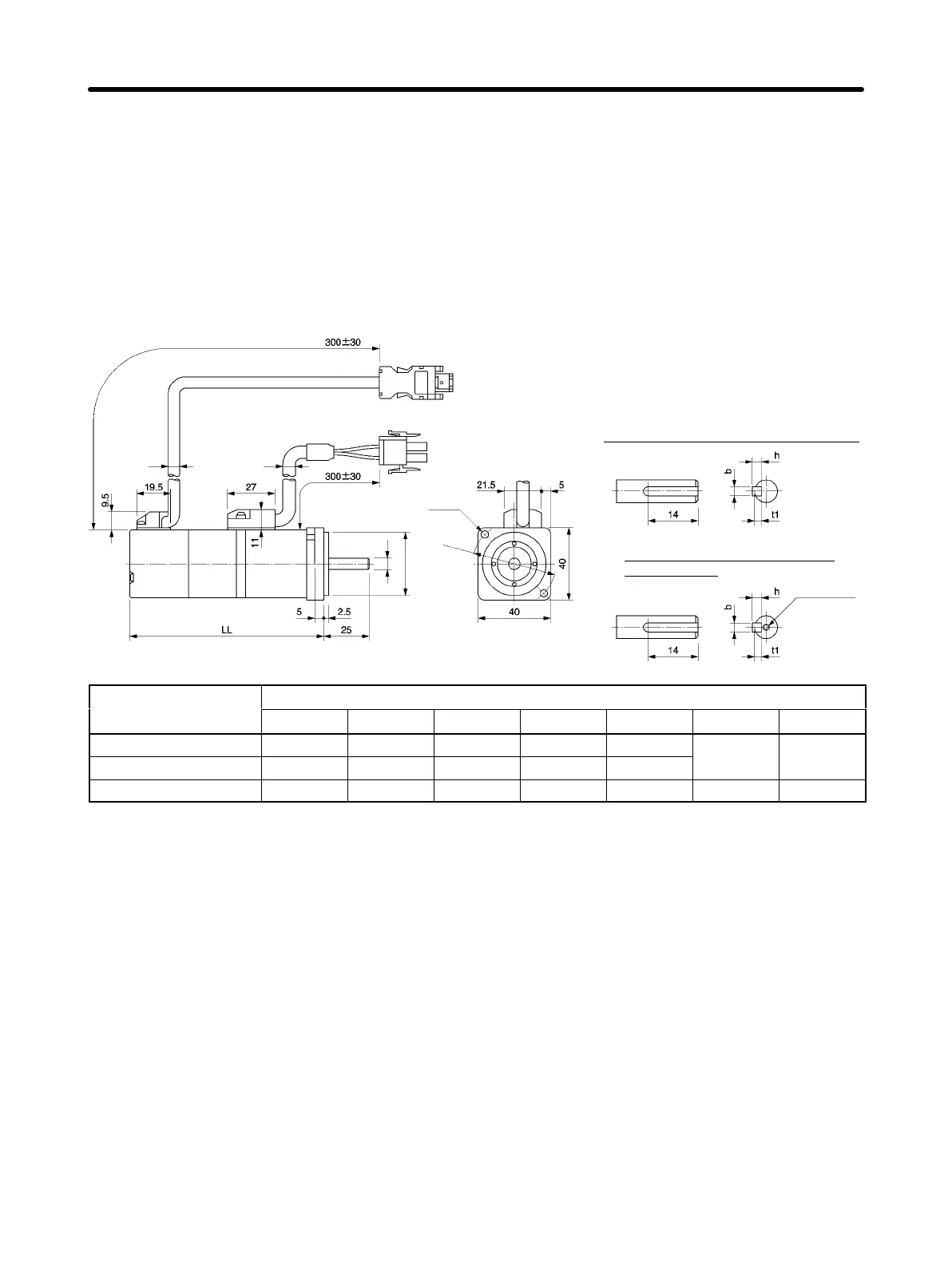

Dimensions of shaft end with key (-BS1)
Dimensions of shaft end with key
and tap (-BS2)
M (effective
depth: )
7 dia.
6 dia.
Model
Dimensions (mm)
LL S b h t1 M

R88M-W03030j-Bj
101 6h6 2 2 1.2
M2.5 5
R88M-W05030j-Bj
108.5 6h6 2 2 1.2
R88M-W10030j-Bj
135 8h6 3 3 1.8 M3 6
