2-35

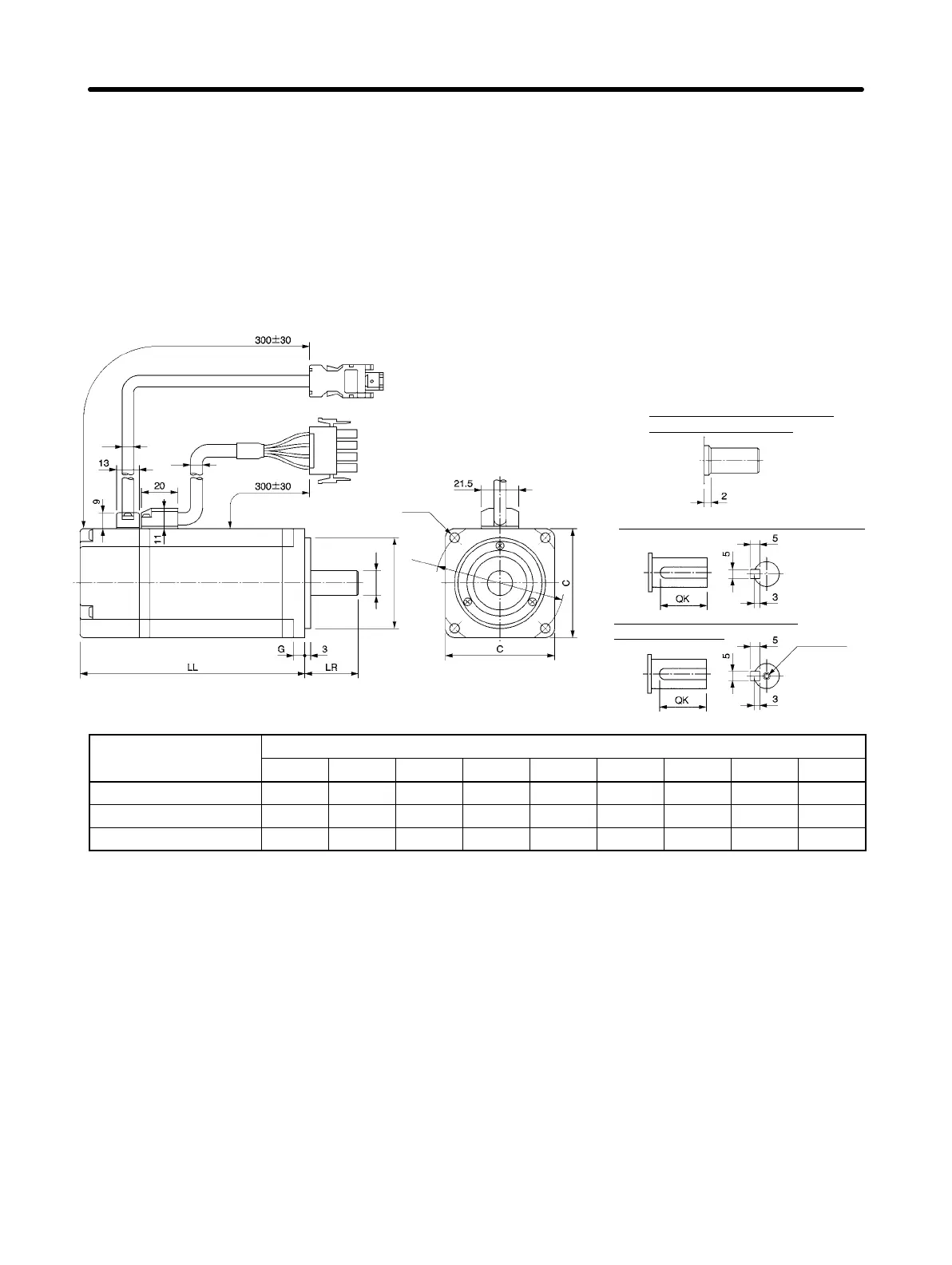

H 3,000-r/min Servomotors without a Brake
D 100 V AC: 200 W
R88M-W20030L(-S1) [Incremental]
R88M-W20030S(-S1) [Absolute]
D 200 V AC: 200 W/400 W/750 W
R88M-W20030H(-S1)/-W40030H(-S1)/-W75030H(-S1) [Incremental]
R88M-W20030T(-S1)/-W40030T(-S1)/-W75030T(-S1) [Absolute]
Dimensions of output section
of 750-W Servomotors
Four, Z dia.
D1 dia.
D2 dia.
S dia.
Dimensions of shaft end with key (-S1)
Dimensions of shaft end with
key and tap (-S2)
7 dia.
6 dia.
M5 (effective
depth: 8)
Model
Dimensions (mm)
LL LR C D1 D2 G Z S QK
R88M-W20030j-j
96.5 30 60 70 50h7 6 5.5 14h6 20
R88M-W40030j-j
124.5 30 60 70 50h7 6 5.5 14h6 20
R88M-W75030j-j
145 40 80 90 70h7 8 7 16h6 30
Standard Models and Specifications
Chapter 2
