2-36

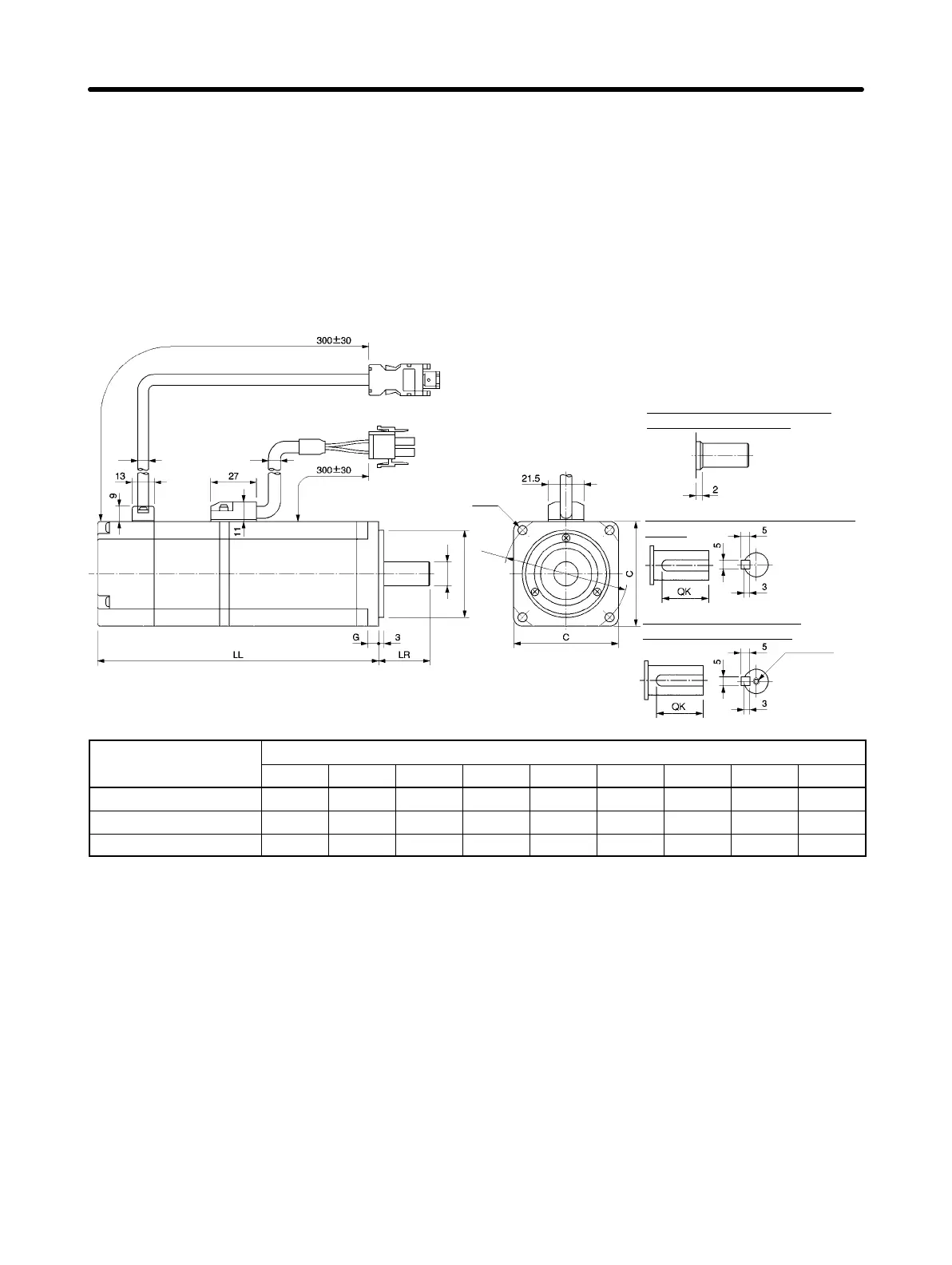

H 3,000-r/min Servomotors with a Brake
D 100 V AC: 200 W
R88M-W20030L-B(S1) [Incremental]
R88M-W20030S-B(S1) [Absolute]
D 200 V AC: 200 W/400 W/750 W
R88M-W20030H-B(S1)/-W40030H-B(S1)/-W75030H-B(S1) [Incremental]
R88M-W20030T-B(S1)/-W40030T-B(S1)/-W75030T-B(S1) [Absolute]
Four, Z dia.
D1 dia.
D2 dia.
S dia.
Dimensions of output section
of 750-W Servomotors
Dimensions of shaft end with key
(-BS1)
Dimensions of shaft end
with key and tap (-BS2)
7 dia.6 dia.
M5 (effective
depth: 8)
Model
Dimensions (mm)
LL LR C D1 D2 G Z S QK
R88M-W20030j-Bj
136 30 60 70 50h7 6 5.5 14h6 20
R88M-W40030j-Bj
164 30 60 70 50h7 6 5.5 14h6 20
R88M-W75030j-Bj
189.5 40 80 90 70h7 8 7 16h6 30
Standard Models and Specifications
Chapter 2
