Omron OMNUC R88D-WT15HF User Manual

2-38

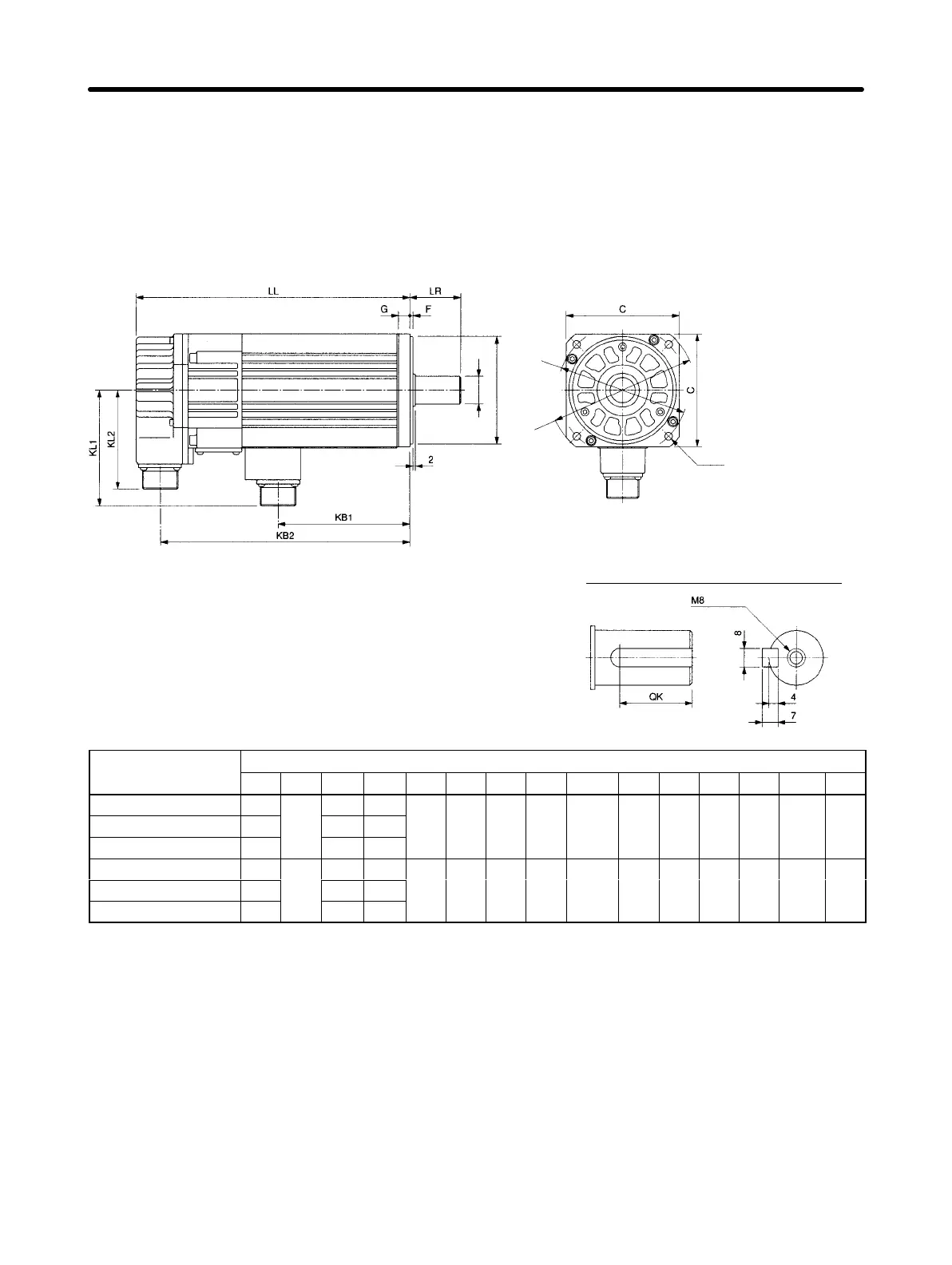

H 3,000-r/min Servomotors with a Brake
D 200 V AC: 1 kW/1.5 kW/2 kW/3 kW/4.0 kW/5.0 kW
R88M-W1K030H-B(S2)/-W1K5030H-B(S2)/-W2K030H-B(S2)/-W3K030H-B(S2)/
-W4K030H-B(S2)/-W5K030H-B(S2) [Incremental]
R88M-W1K030T-B(S2)/-W1K5030T-B(S2)/-W2K030T-B(S2)/-W3K030T-B(S2)/
-W4K030T-B(S2)/-W5K030T-B(S2) [Absolute]
(Effective depth: 16)
Four, Z dia.
D1 dia.
D2 dia.
D3 dia.
S dia.
Dimensions of shaft end with key (-BS2)
Model
Dimensions (mm)
LL LR KB1 KB2 KL1 KL2 C D1 D2 D3 F G Z S QK
R88M-W1K030j-Bj
193
45
67 171
102 88 100 115 95h7 130 3 10 7 24h6 32
R88M-W1K530j-Bj
219 93 197
R88M-W2K030j-Bj
242 116 220
R88M-W3K030j-Bj
237
63
114 216
119 88 130 145 110h7 165 6 12 9 28h6 50
R88M-W4K030j-Bj
274 151 253
R88M-W5K030j-Bj
314 191 293
Note The external dimensions are the same for IP67 (waterproof) models (-BOj).
Standard Models and Specifications
Chapter 2
