Omron OMNUC R88D-WT15HF User Manual

2-44

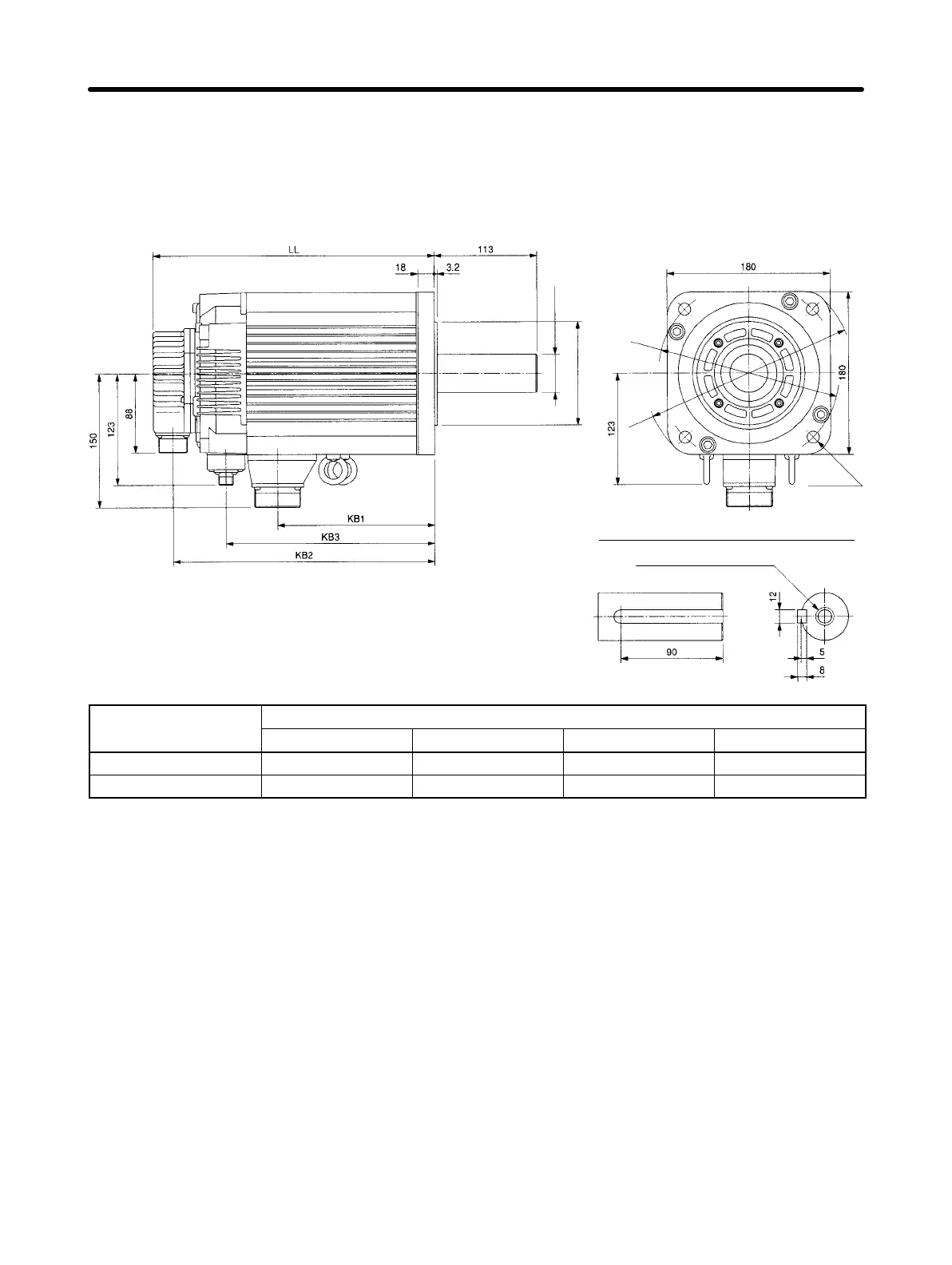

H 1,000-r/min Servomotors with a Brake
D 200 V AC: 4 kW/5.5 kW
R88M-W4K010H-B(S2)/-W5K510H-B(S2) [Incremental]
R88M-W4K010T-B(S2)/-W5K510T-B(S2) [Absolute]
Four,
13.5 dia.
200 dia.
42h6 dia.
230 dia.
Dimensions of shaft end with key (-BS2)
M16 (Effective depth: 32)
114.3 dia.
0
–0.025
Model
Dimensions (mm)
LL KB1 KB2 KB3
R88M-W4K010j-Bj
311 174 289 231
R88M-W5K510j-Bj
365 248 363 305
Note The external dimensions are the same for IP67 (waterproof) models (-BOj).
Standard Models and Specifications
Chapter 2
