Regular Payload Series-Hardware Installation Manual TM5 Series Hardware Version: 3.2 53

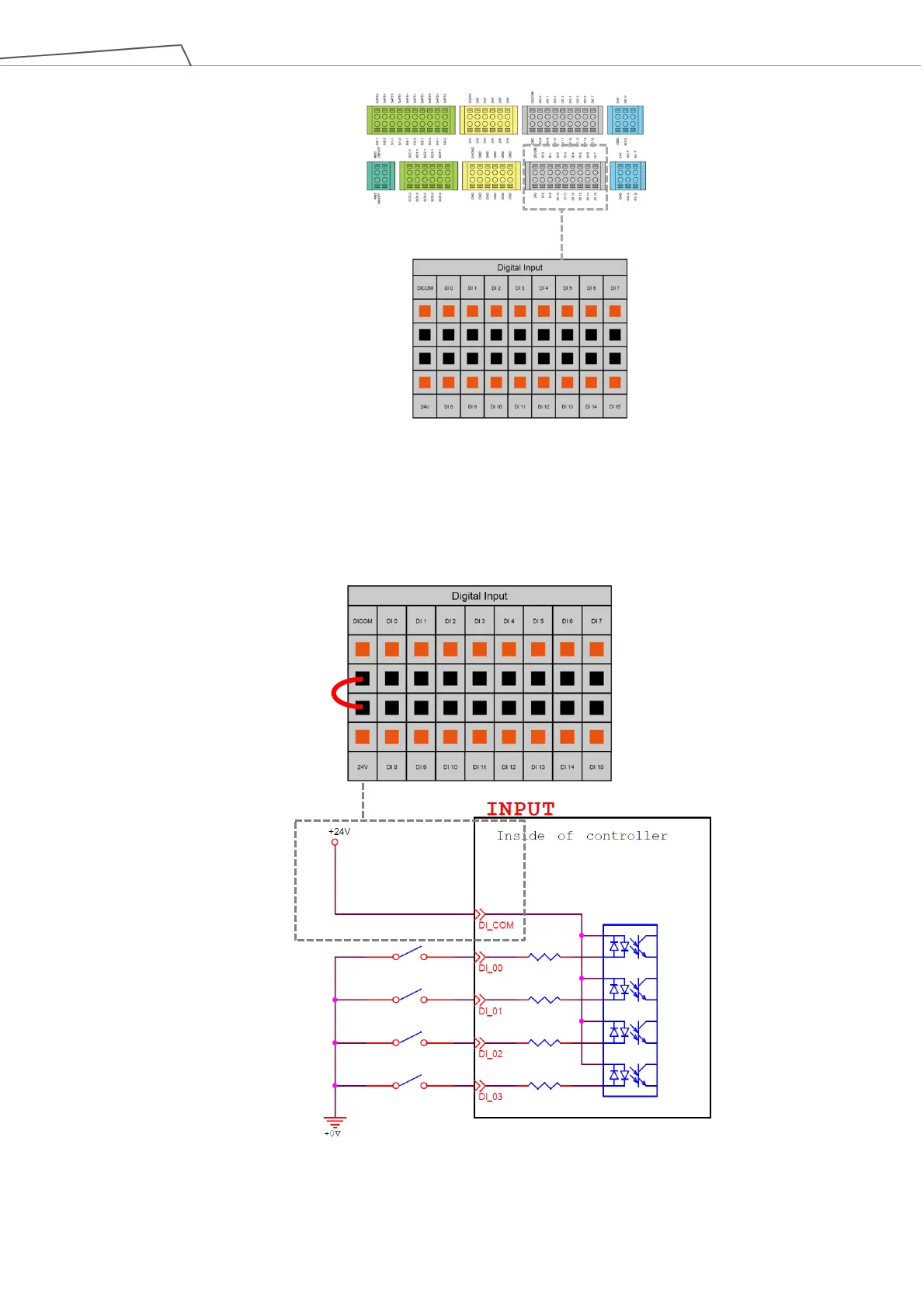

Figure 45: Digital Input
Set to sink input type
When a device such as a transistor output sensor is connected, NPN open collector transistor output
can be used.
Figure 46: Set to Sink Input Type
