4-129
4-3 Functions When PG Option Board (3G3AX-PG01) Is Used
4
Functions

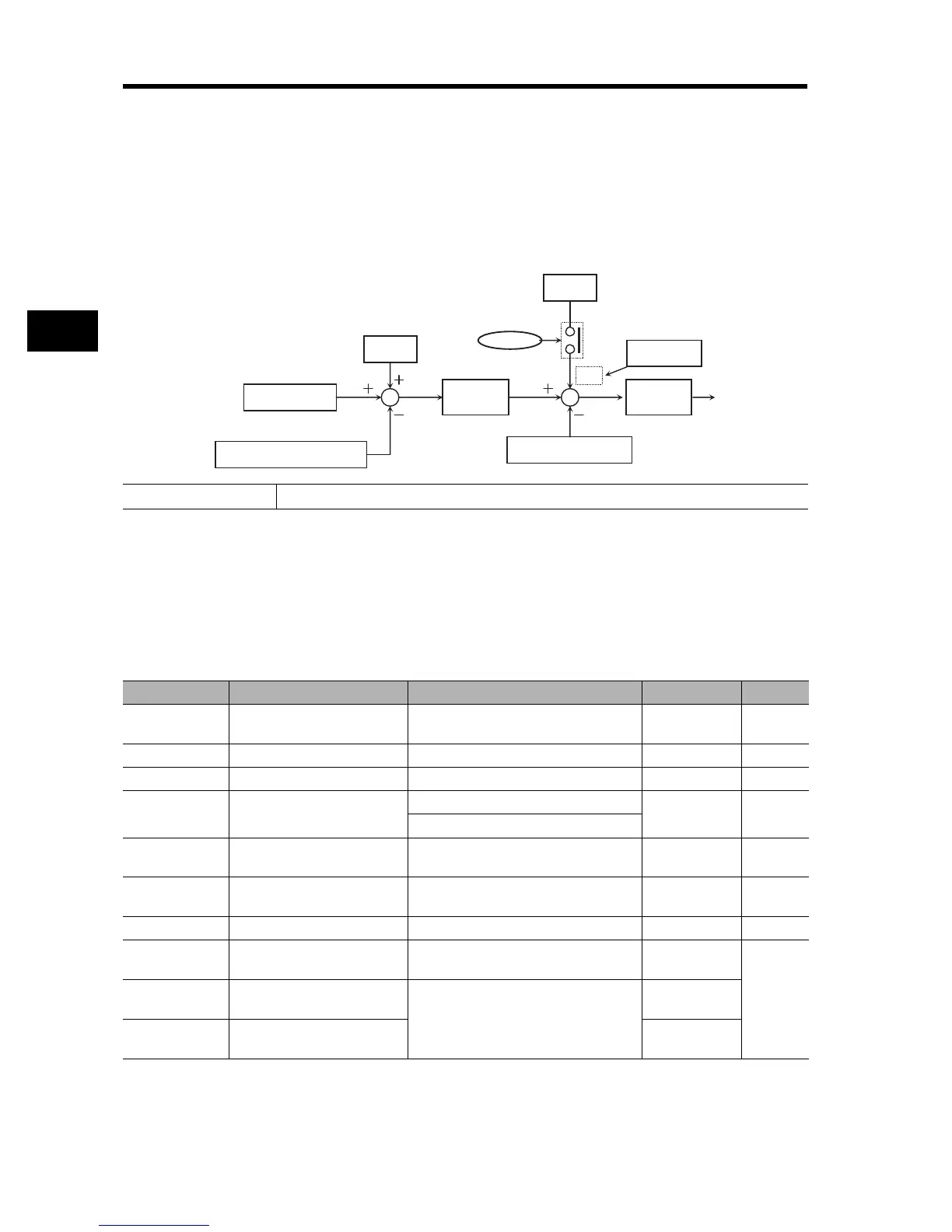

Speed Bias Function
This function applies speed command bias in the pulse train position control mode.
Set a bias value in frequency addition amount A145, and select a sign in frequency addition direc-
tion A146.
Allocate 50 (ADD) to any of the multi-function inputs. While the ADD terminal is turned on, the bias
value is added to the speed command.
Orientation Function
This function determines a motor position at a single desired point during one rotation of the motor,
and can be used to exchange tools for the machine tool main spindle or others.
During positioning, the Z-pulse (one rotation position signal) is used as the reference signal. Input
Z-pulse between EZP and EZN.
Position command variation
Position feedback variation
P024
Position control
Speed feedback value
Speed control
A145
+/-
ADD terminal
Position bias
Speed bias
Set with A146.
Related functions A145, A146
Parameter No. Function name Data Default setting Unit
P011 Encoder pulses
128. to 9999./1000 to 6553
(10000 to 65530)
1024. Pulse
P014 Orientation stop position 0. to 4095. 0.
P015 Orientation speed setting 0.00 to 99.99/100.0 to 120.0 5.00 Hz
P016 Orientation direction setting
00: Forward side
00
01: Reverse side
P017 Position ready range setting
0. to 9999./
1000 (10000)
5. Pulse
P018
Position ready delay time
setting
0.00 to 9.99 0.00 s
P023 Position loop gain 0.00 to 99.99/100.0 0.50 rad/s
C001 to C008
Multi-function inputs
1 to 8 selection
45: ORT (orientation)
C021 to C025
Multi-function output terminal
selection
23: POK (position ready)
C026
Relay output (AL2, AL1)
function selection
05
