Omron RX - Options

7-14
7-3 Options
7
Specifications
7-3 Options

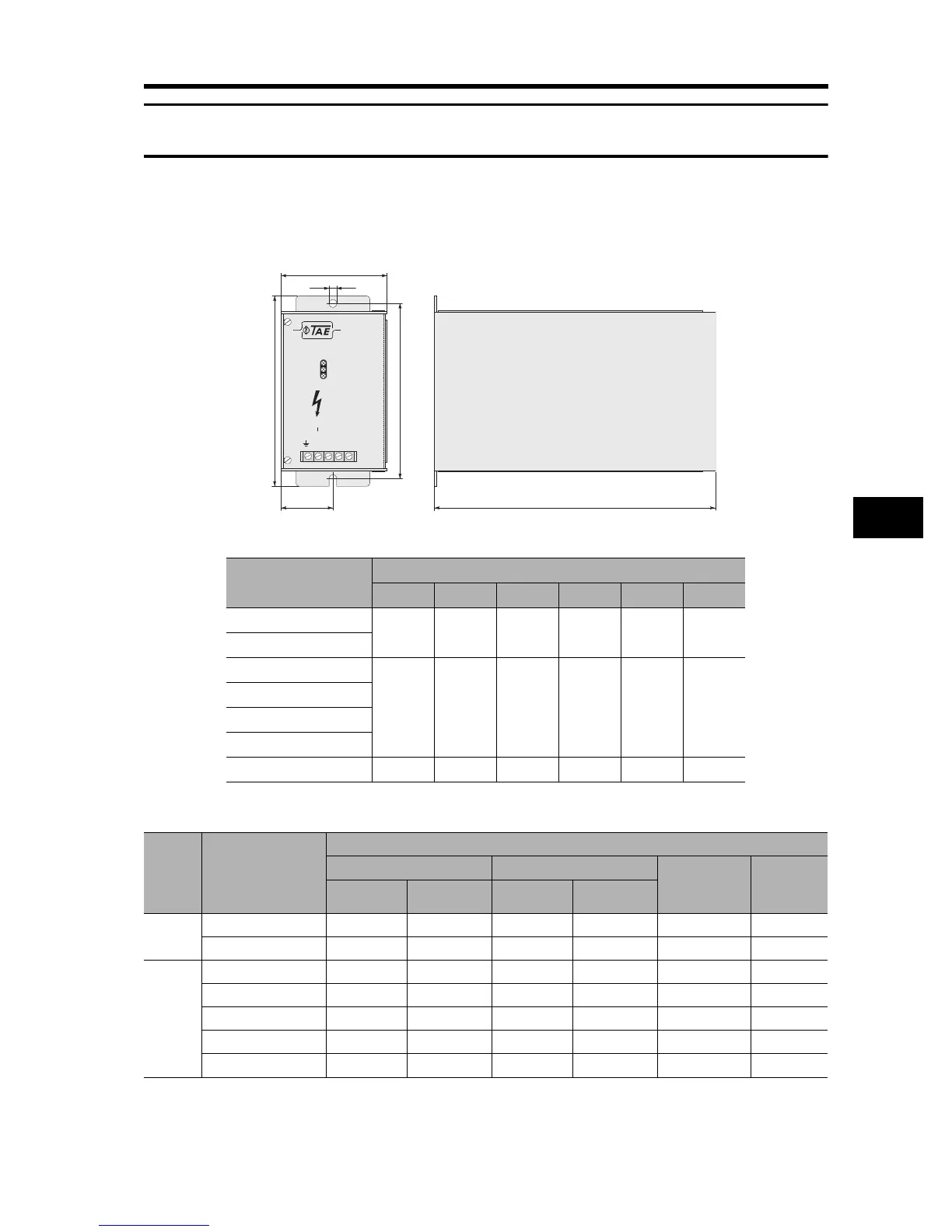

Braking Unit (AX-BCR-TE)
Dimensional Drawing
Specifications
Reference
Dimensions
B B1 H H1 T S
AX-BCR4015045-TE
82.5 40.5 150 138 220 6
AX-BCR4017068-TE
AX-BCR2035090-TE
130 64.5 205 193 208 6
AX-BCR2070130-TE
AX-BCR4035090-TE
AX-BCR4070130-TE
AX-BCR4090240-TE 131 64.5 298 280 300 9
Voltage Reference
Specifications
Permanent Peak (5s max)
Minimum
connectable
resistor (Ohms)
Superfast
fuse F2 (A)
Current (A)
Brake power
(KVA)
Current (A)
Brake power
(KVA)
200V
AX-BCR2035090-TE 35 13 90 32 4 100
AX-BCR2070130-TE 70 25 130 47 2.8 125
400V
AX-BCR4015045-TE 15 11 45 33 16 50
AX-BCR4017068-TE 17 13 68 51 11 63
AX-BCR4035090-TE 35 26 90 67 8.5 100
AX-BCR4070130-TE 70 52 130 97 5.5 125
AX-BCR4090240-TE 90 67 240 180 3.2 250
S
B
H1
T1B
H
ACTIVE
POWER
OVERCURRENT
BUSS BUSS+ R R
BC...
CHOPPER
DANGER
HIGH VOLTAGE !
