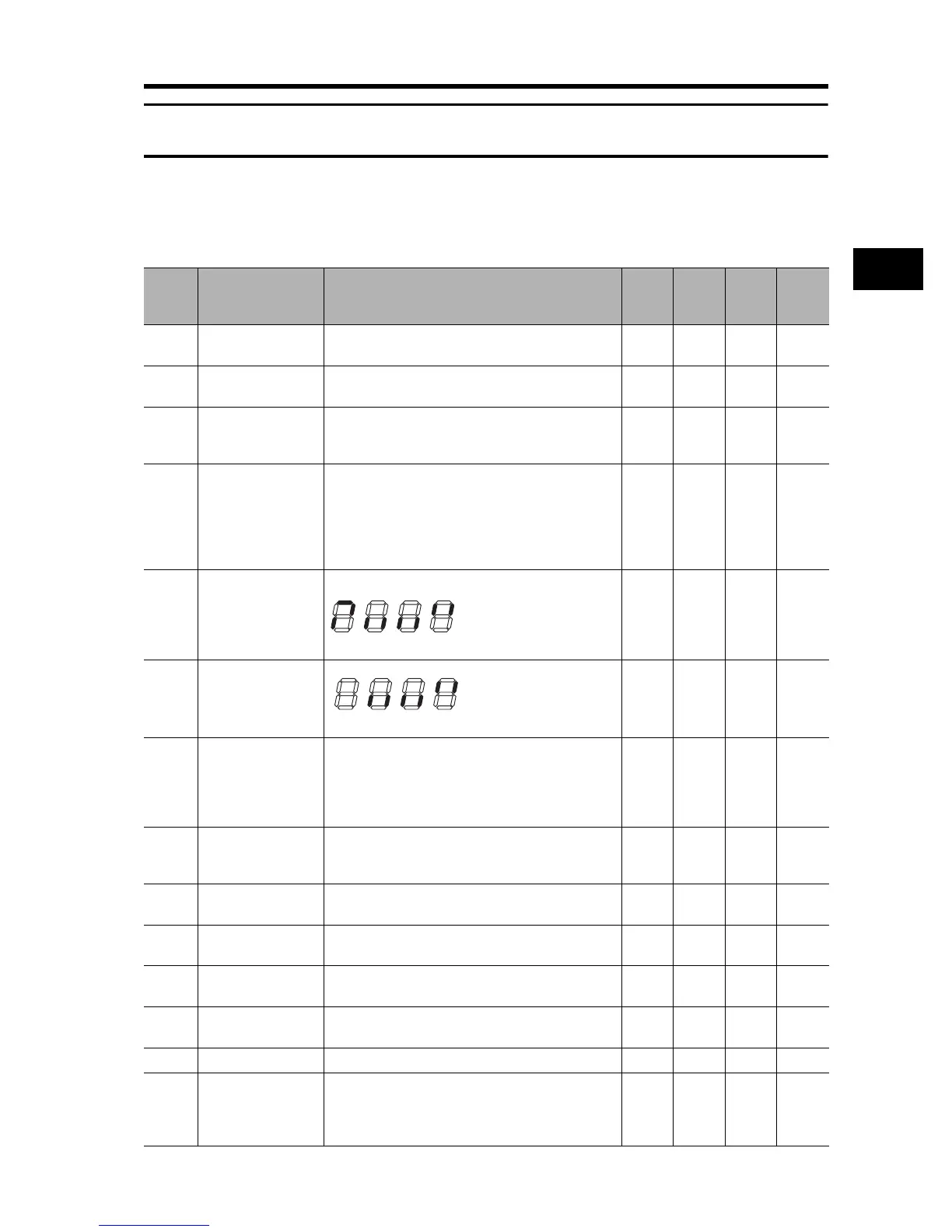

3-7 Parameter List
3
Operation
3-7 Parameter List
Monitor Mode (d)
•The default setting displays "d001" at power-on. To select the optional display, change the setting
in "b038".
Parameter
No.
Function name Monitor or data range
Default
setting
Changes
during
operation
Unit Page
d001
Output frequency
monitor
0.0 to 400.0  Yes Hz 4-1
d002
Output current
monitor
0.0 to 999.9
1000 to 9999
 A4-1
d003
Rotation direction
monitor
F: Forward
o: Stop
r: Reverse
4-1
d004
PID feedback value
monitor
0.00 to 99.99
100.0 to 999.9
1000. to 9999.
1000 to 9999 (10000 to 99990)
100 to 999 (100000 to 999000)
(Enabled when the PID function is selected)
4-1
d005
Multi-function input
monitor
4-2
d006
Multi-function
output monitor
4-2
d007
Output frequency
monitor
(after conversion)
0.00 to 99.99
100.0 to 999.9
1000. to 9999.
1000 to 3996 (10000 to 39960)
(Output frequency × Conversion factor of b086)
 Yes  4-2
d008
Actual frequency
monitor
-400. to -100.
-99.9 to 0.00 to 99.99
100.0 to 400.0
Hz 4-3
d009
Torque reference
monitor
-200. to +200. %4-3
d010
Torque bias
monitor
-200. to +200. %4-3
d012
Output torque
monitor
-200. to +200. %4-3
d013
Output voltage
monitor
0. to 600.  V4-3
d014 Input power monitor 0.0 to 999.9 kW 4-4
d015
Integrated power
monitor
0.0 to 999.9
1000. to 9999.
1000 to 9999 (10000 to 99990)
100 to 999 (100000 to 999000)

4-4
FW
87654321
(Example) Terminals FW, 7, 2, 1 : ON
Terminals 8, 6, 5, 4, 3: OFF
AL2 15 14 13 12 11
(Example) Terminals 12, 11 : ON
Terminals AL2, 15, 14, 13: OFF
