7-3 Options
7
Specifications
Output AC Reactor (AX-RAO-DE)

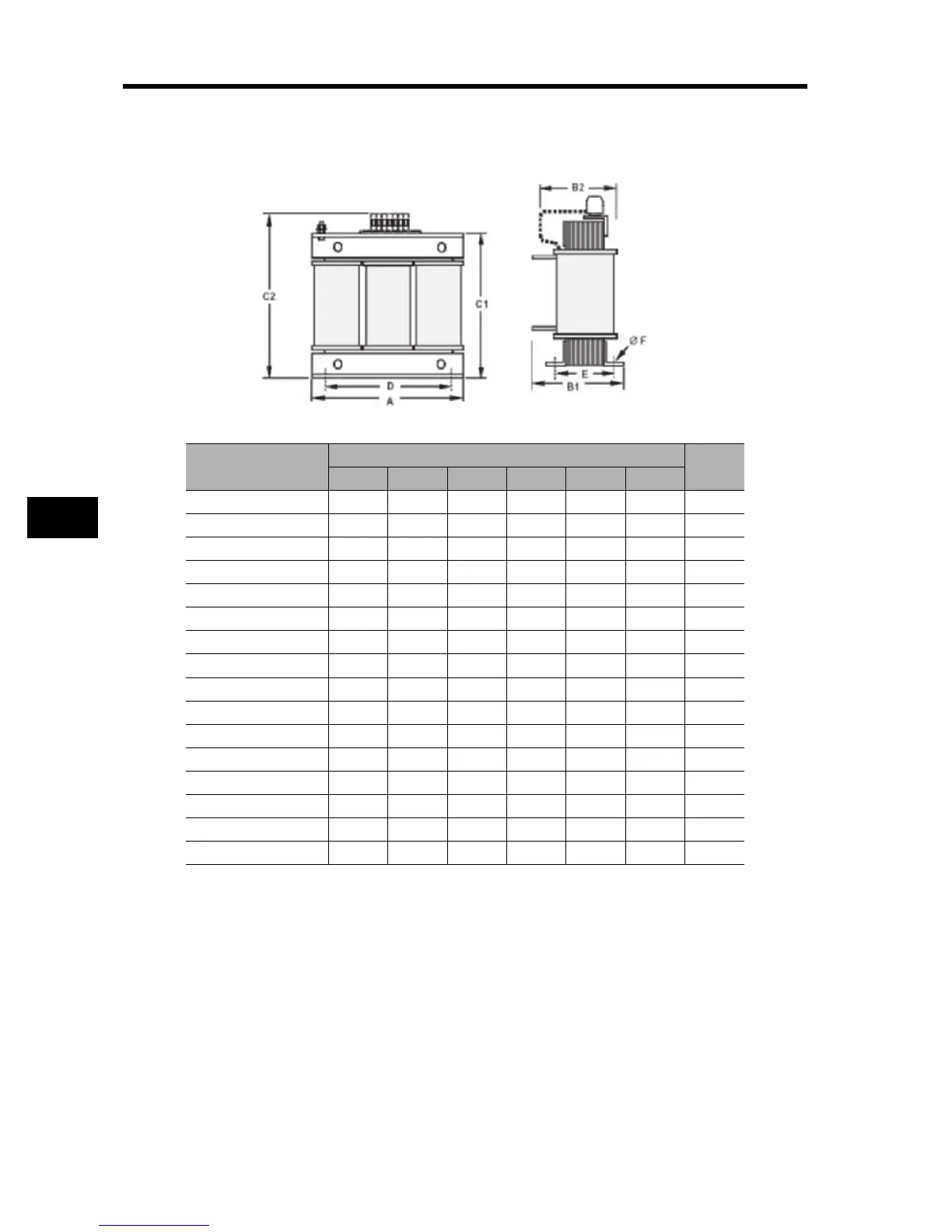

Dimensional Drawing
Reference
Dimensions Weight
Kg
A B2 C2 D E F
AX-RAO11500026-DE 120 70 120 80 52 5.5 1.78
AX-RAO07600042-DE 120 70 120 80 52 5.5 1.78
AX-RAO04100075-DE 120 80 120 80 62 5.5 2.35
AX-RAO03000105-DE 120 80 120 80 62 5.5 2.35
AX-RAO01830180-DE 180 85 190 140 55 6 5.5
AX-RAO01150220-DE 180 85 190 140 55 6 5.5
AX-RAO00950320-DE 180 85 205 140 55 6 6.5
AX-RAO00630430-DE 180 95 205 140 65 6 9.1
AX-RAO00490640-DE 180 95 205 140 65 6 9.1
AX-RAO16300038-DE 120 70 120 80 52 5.5 1.78
AX-RAO11800053-DE 120 80 120 80 52 5.5 2.35
AX-RAO07300080-DE 120 80 120 80 62 5.5 2.35
AX-RAO04600110-DE 180 85 190 140 55 6 5.5
AX-RAO03600160-DE 180 85 205 140 55 6 6.5
AX-RAO02500220-DE 180 95 205 140 55 6 9.1
AX-RAO02000320-DE 180 105 205 140 85 6 11.7
