18 SmartController EX User's Guide 11069-000 Rev. H
3.1 Controller Installation
27.4
14.0
200.5
4X 40356-00000
8X M3 x 6MM
273.9
8.1
16.0
44.9
6.6 346.6
359.8
R3.6 TYP.
16.1
44.9

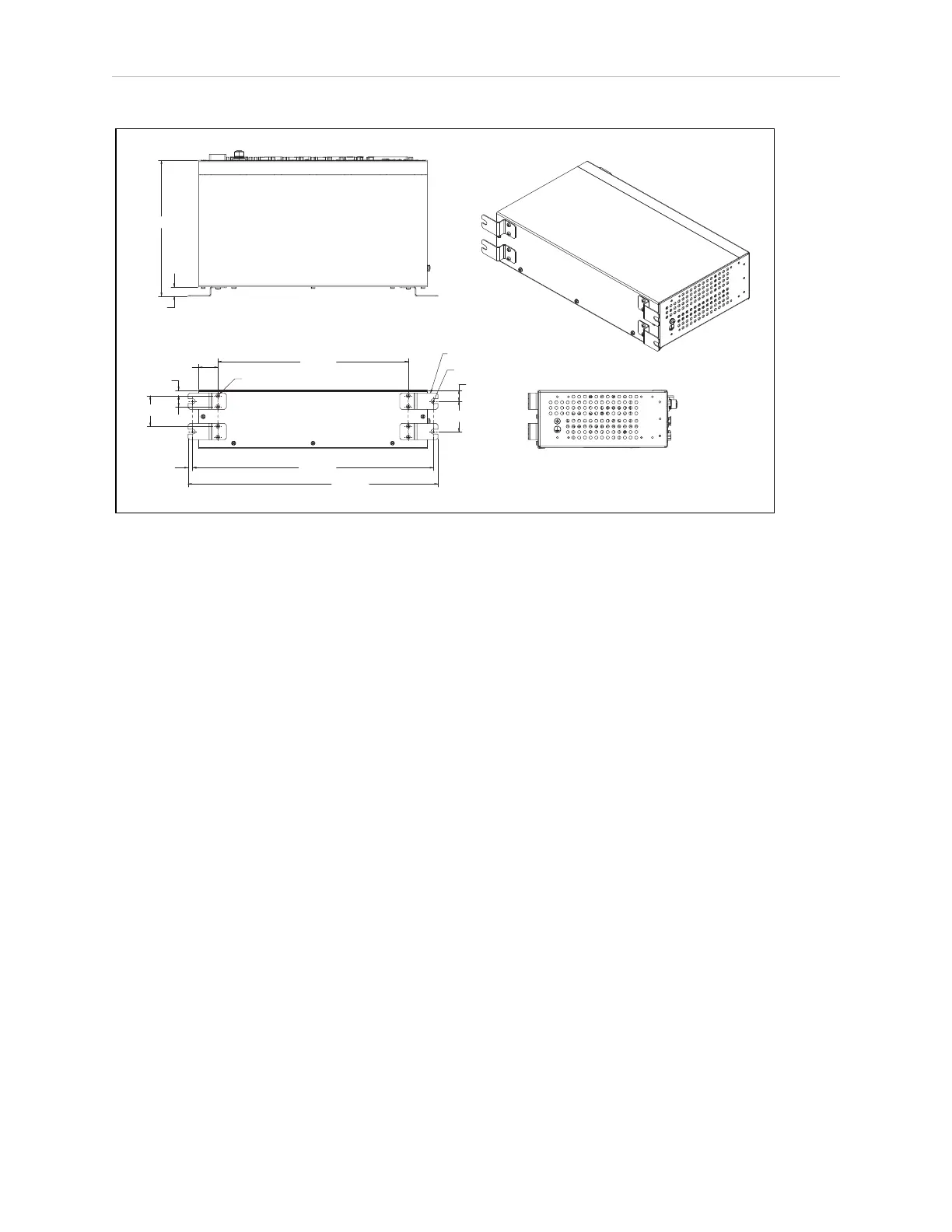

Figure 3-2. Panel-Mounting the SmartController EX Motion Controller (Units in mm)
Table-Mounting the SmartController EX Motion Controller
To table-mount the controller, install two brackets on each side near the bottom of the unit, as
shown in the following figure. These brackets must be ordered separately. They do not come
with the controller.
