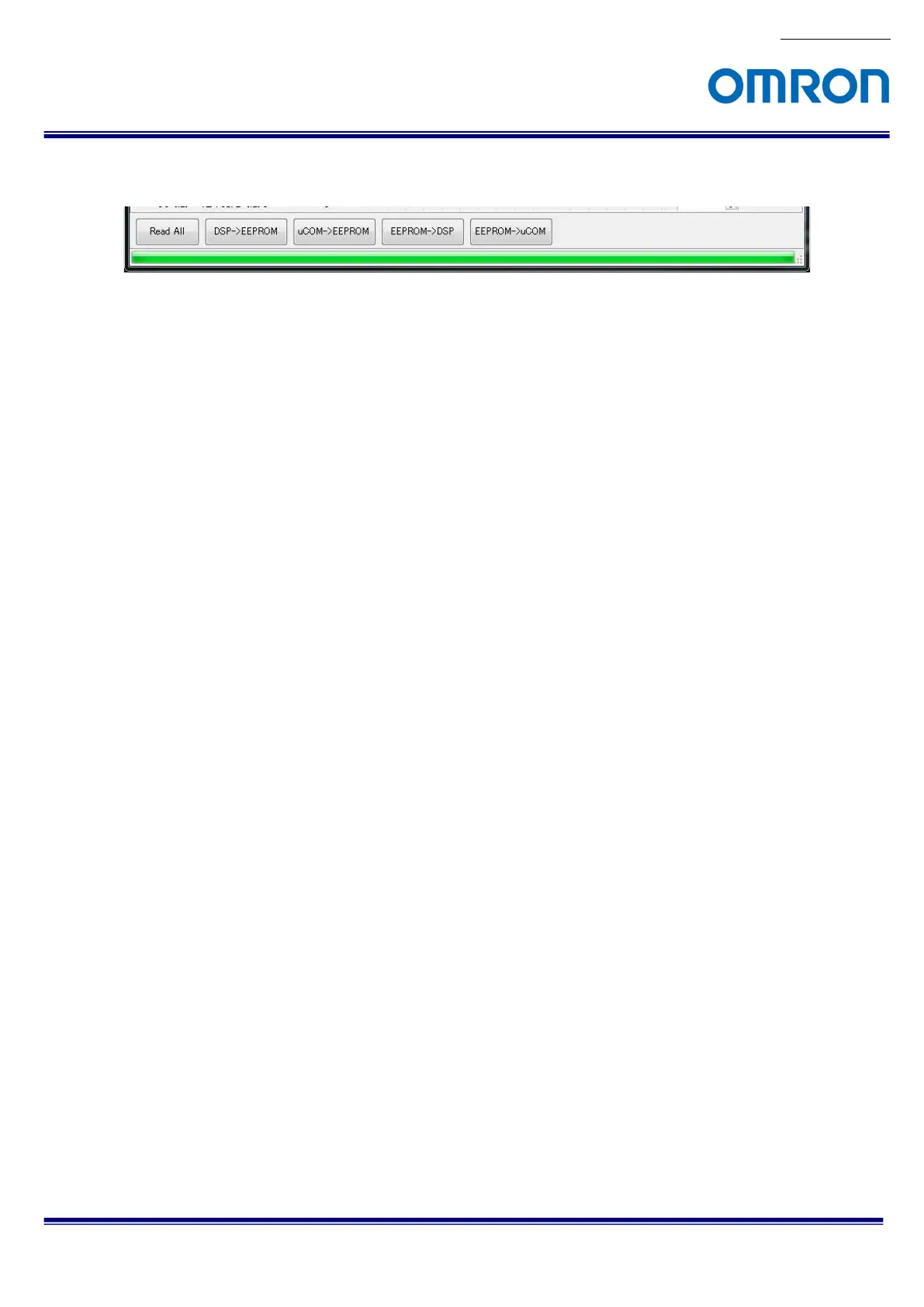

7.3 Button Description
Read All
Read out All of DPS register and uCOM register settings on camera.
Please execute this button when turning on camera every time.
DSP -> EEPROM
Save the DSP register settings (that settings are on DSP tab) into EEPROM.
uCOM -> EEPROM
Save the uCOM register settings (that settings are on uCOM tab) into EEPROM.
EEPROM -> DSP
Read the DSP register settings on EEPROM.
EEPROM -> uCOM
Read the uCOM register settings on EEPROM.
7.4 The Differences of uCOM register and DSP register
Mainly video control functions are in DSP register area.
The communication settings and other functions as button setting are in uCOM register.
DSP has the eight User presets and user can configure each DSP Preset for each application.
