2-2 Nomenclature

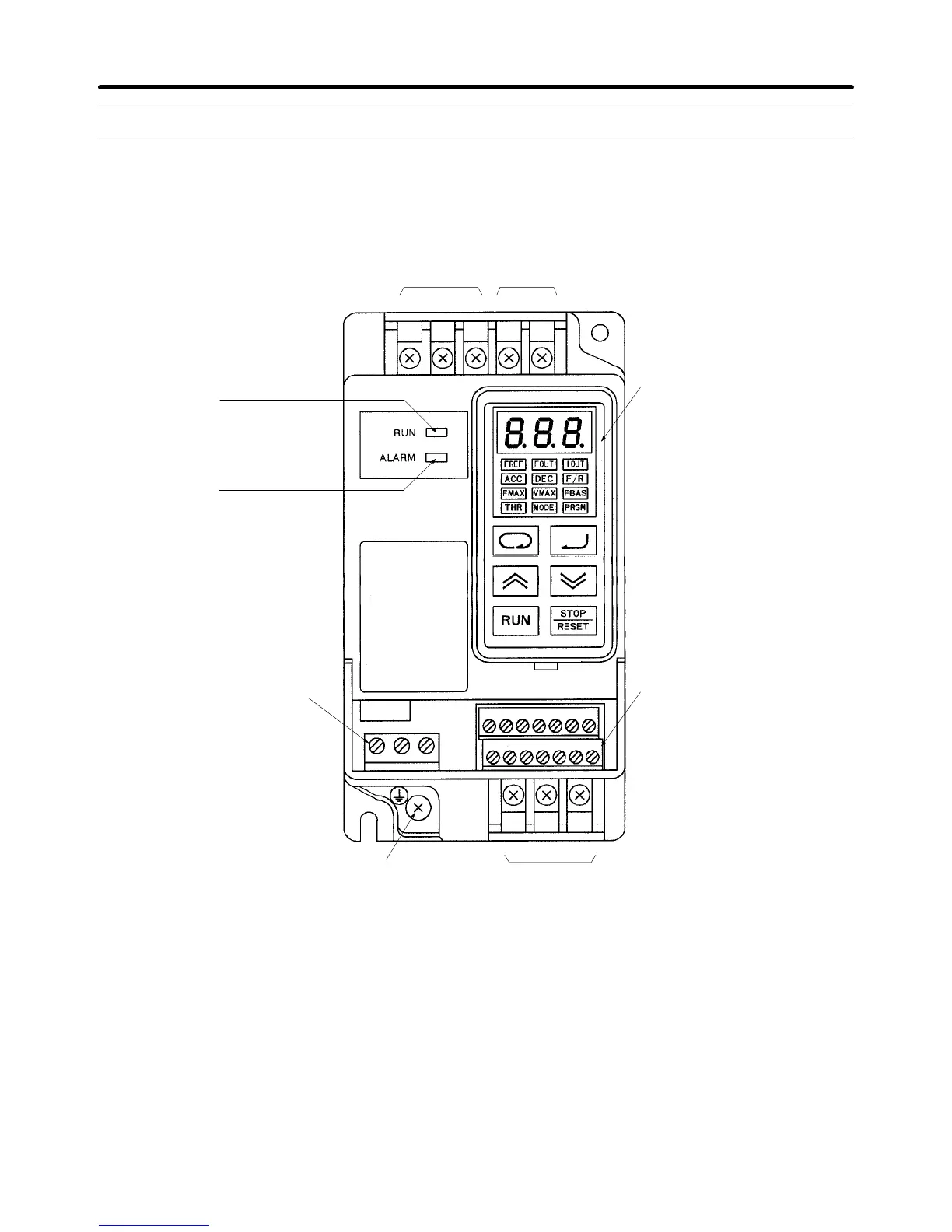

H Main Unit
Main Circuit Terminals (Input)
Power input
terminals
Braking resistor
connection terminals
Run indicator
Alarm indicator
Control circuit terminals (output)
Ground terminal
Main Circuit Terminals (Output)
Motor output
terminals
Digital Operator
Control circuit terminals
(input/output)
MA MB MC
SF SR S1 SC FS FR FC
L1 N/L2 L3 B1 B2
S2 S3 SC AM AC PA PC
UV W
Note This diagram shows the Inverter with all terminal block covers removed.
The standard Inverters are not provided with the upper terminal block (S2 to PC).
