D Three-phase 400-VAC Input Model
3G3EV model Output W H D W1 H1 Weight (kg)
A4002(M)-CUE 0.2 kW
108 128
92
96 118
Approx. 1.0
A4004(M)-CUE 0.4 kW 110 Approx. 1.0
A4007(M)-CUE 0.75 kW 140 Approx. 1.5
A4015(M)-CUE 1.5 kW 130 170 118 Approx. 2.0
3-1-2 Installation Conditions
H Installation Site
• Install the Inverter under the following conditions:
Ambient temperature for operation: –10°C to 50°C
Humidity: 90% RH or less (non-condensing)
• Install the Inverter in a clean location free from oil mist and dust. Alternatively, install it in a totally en-
closed panel that is completely shielded from suspended dust.
• When installing or operating the Inverter, always take special care so that metal powder, oil, water, or
other foreign matter do not get in the Inverter.
• Do not install the Inverter on inflammables such as wood.
H Direction of Installation
• Install the Inverter on a vertical surface so that the characters on the nameplate are oriented upward.
H Installation Space

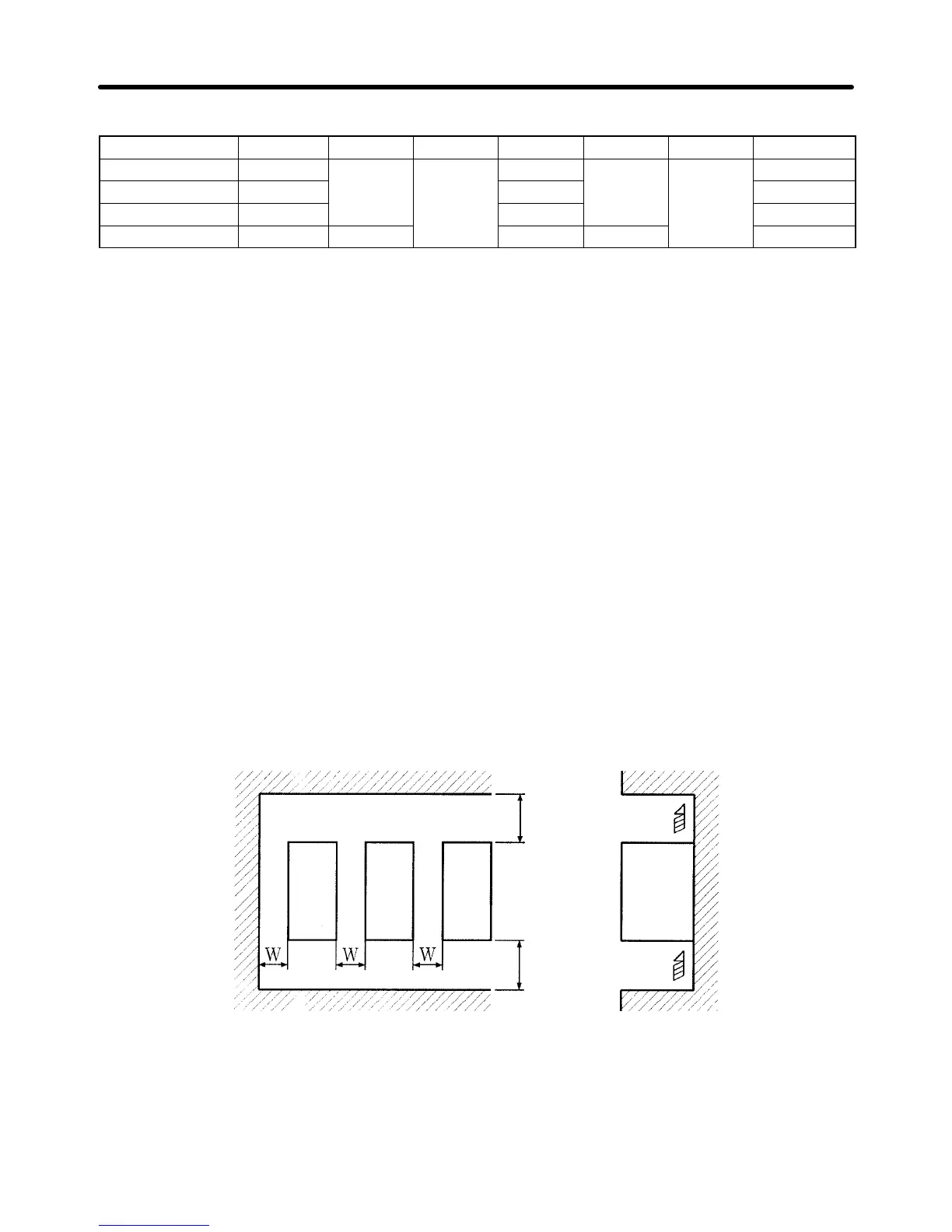

• When installing the Inverter, always provide the following installation space to allow normal heat dis-
sipation from the Inverter:
W= 30 mm min.
100 mm min.
100 mm min.
Air
Side
Air
Inverter
Inverter
Inverter
Design Chapter 3
To Next Page
