3-1 Installation
3-1-1 Outside/Mounting Dimensions
Note All dimensions are in millimeters.

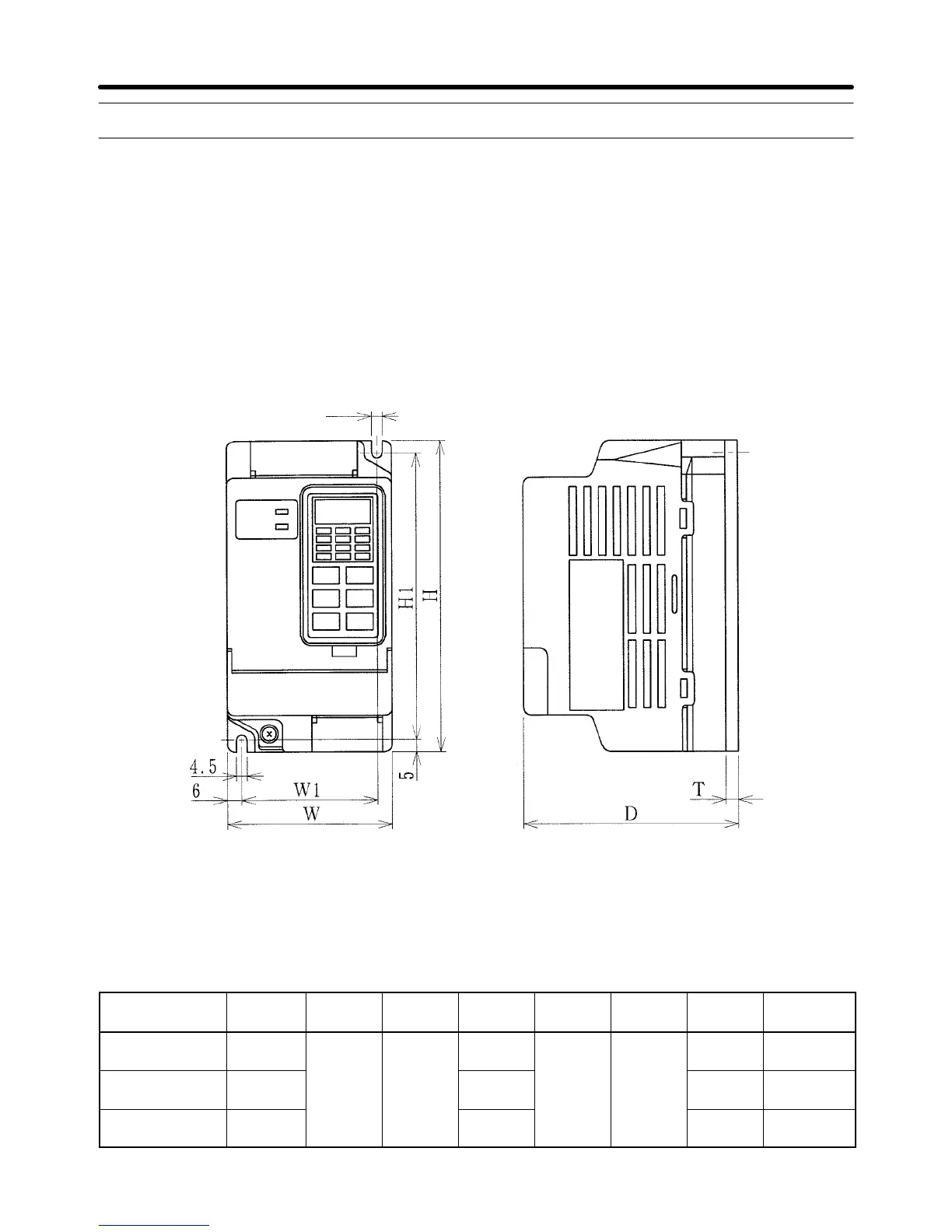

H 3G3EV-A2001(M)-CUE to 3G3EV-A2004(M)-CUE (0.1 to 0.4 kW):
Three-phase 200-VAC Input
H 3G3EV-AB001(M)-CUE to 3G3EV-AB002(M)-CUE (0.1 to 0.2 kW):
Single/Three-phase 200-VAC Input
4.5 dia.
Note 1. For the 3G3EV-A2001(M)-CUE, 3G3EV-A2002(M)-CUE, and 3G3EV-AB001(M)-CUE, a U-
shaped notch (4.5 mm wide) is provided instead of the upper mounting hole (4.5 mm in diame-
ter).
Note 2. Install the Inverter with two M4 bolts.
D Three-phase 200-VAC Input Model
3G3EV model Output W H D W1 H1 T Weight
(kg)
A2001(M)-CUE 0.1 kW
68 128
75
56 118
3 Approx.
0.5
A2002(M)-CUE 0.2 kW 88 3 Approx.
0.6
A2004(M)-CUE 0.4 kW 110 5 Approx.
0.9
Design Chapter 3
