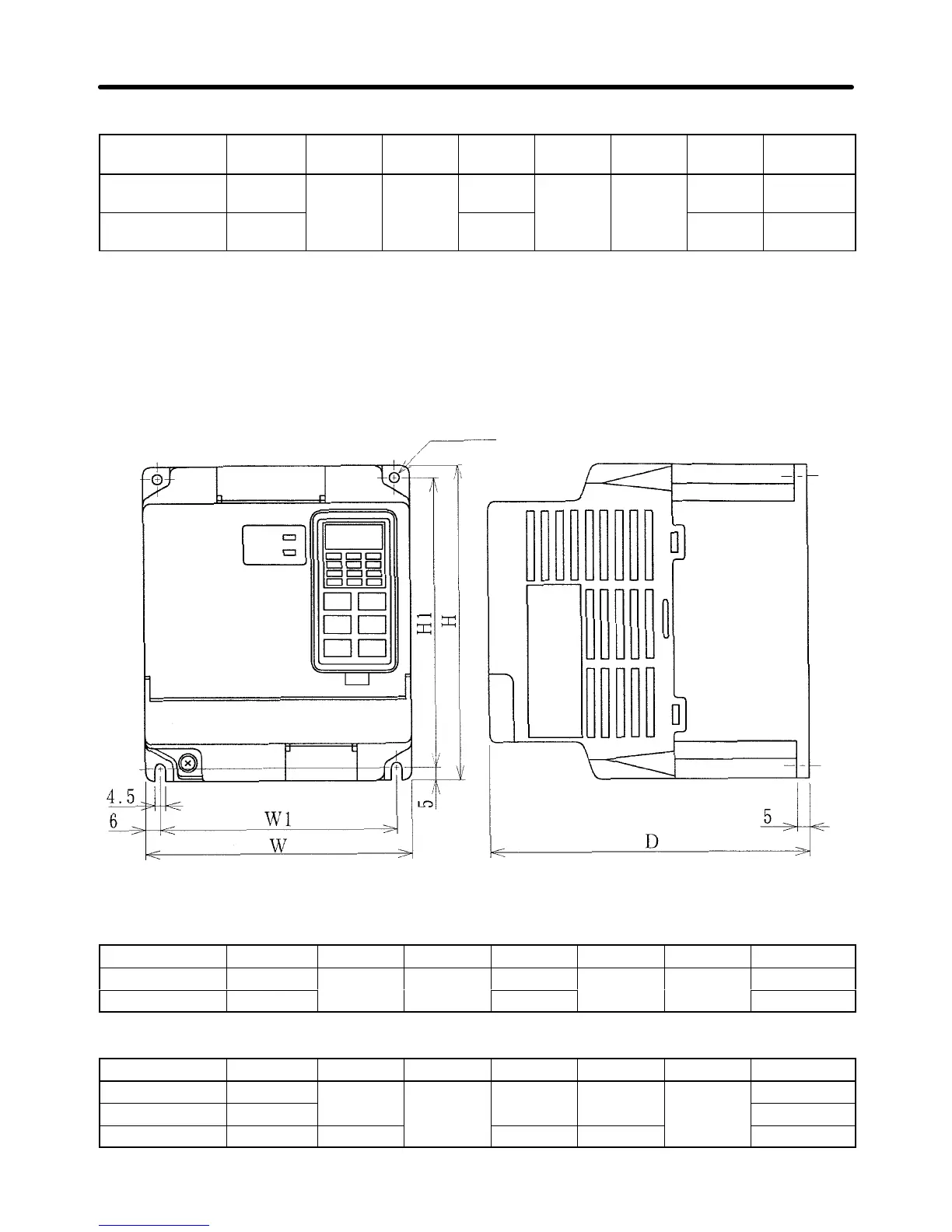

3-3
D Single/Three-phase 200-VAC Input Model
3G3EV model Output W H D W1 H1 T Weight
(kg)
AB001(M)-CUE 0.1 kW
68 128
75
56 118
3 Approx.
0.5
AB002(M)-CUE 0.2 kW 108 3 Approx.
0.6
H 3G3EV-A2007(M)-CUE to 3G3EV-A2015(M)-CUE (0.75 to 1.5 kW):
Three-phase 200-VAC Input
3G3EV-AB004(M)-CUE to 3G3EV-AB015(M)-CUE (0.4 to 1.5 kW):
Single/Three-phase 200-VAC Input
3G3EV-A4002(M)-CUE to 3G3EV-A4015(M)-CUE (0.2 to 1.5 kW):
Three-phase 400-VAC Input
Two, 4.5 dia.
Note Install the Inverter with four M4 bolts.
D Three-phase 200-VAC Input Model
3G3EV model Output W H D W1 H1 Weight (kg)
A2007(M)-CUE 0.75 kW
108 128
130
96 118
Approx. 1.3
A2015(M)-CUE 1.5 kW 155 Approx. 1.5
D Single/Three-phase 200-VAC Input Model
3G3EV model Output W H D W1 H1 Weight (kg)
AB004(M)-CUE 0.4 kW
108 128 130 96 118
Approx. 1.3
AB007(M)-CUE 0.75 kW Approx. 1.3
AB015(M)-CUE 1.5 kW 130 170 118 Approx. 2.0
