Appendix CStandard Models
108

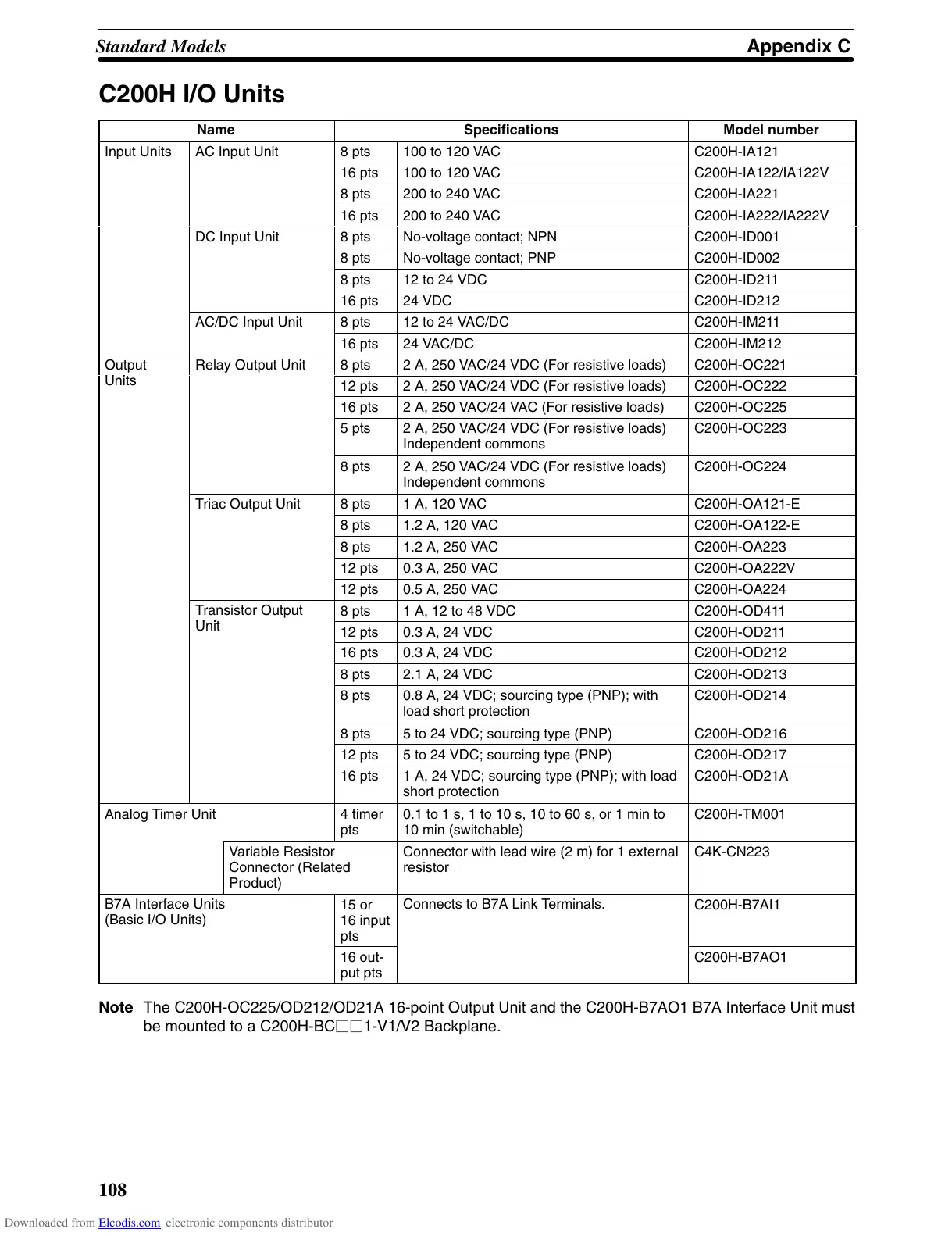

C200H I/O Units
Name Specifications Model number
Input Units AC Input Unit 8 pts 100 to 120 VAC C200H-IA121
16 pts 100 to 120 VAC C200H-IA122/IA122V
8 pts 200 to 240 VAC C200H-IA221
16 pts 200 to 240 VAC C200H-IA222/IA222V
DC Input Unit 8 pts No-voltage contact; NPN C200H-ID001
8 pts No-voltage contact; PNP C200H-ID002
8 pts 12 to 24 VDC C200H-ID211
16 pts 24 VDC C200H-ID212
AC/DC Input Unit 8 pts 12 to 24 VAC/DC C200H-IM211
16 pts 24 VAC/DC C200H-IM212
Output
Relay Output Unit 8 pts 2 A, 250 VAC/24 VDC (For resistive loads) C200H-OC221
Units
12 pts 2 A, 250 VAC/24 VDC (For resistive loads) C200H-OC222
16 pts 2 A, 250 VAC/24 VAC (For resistive loads) C200H-OC225
5 pts 2 A, 250 VAC/24 VDC (For resistive loads)
Independent commons
C200H-OC223
8 pts 2 A, 250 VAC/24 VDC (For resistive loads)
Independent commons
C200H-OC224
Triac Output Unit 8 pts 1 A, 120 VAC C200H-OA121-E
8 pts 1.2 A, 120 VAC C200H-OA122-E
8 pts 1.2 A, 250 VAC C200H-OA223
12 pts 0.3 A, 250 VAC C200H-OA222V
12 pts 0.5 A, 250 VAC C200H-OA224
Transistor Output
8 pts 1 A, 12 to 48 VDC C200H-OD411
Unit
12 pts 0.3 A, 24 VDC C200H-OD211
16 pts 0.3 A, 24 VDC C200H-OD212
8 pts 2.1 A, 24 VDC C200H-OD213
8 pts 0.8 A, 24 VDC; sourcing type (PNP); with
load short protection
C200H-OD214
8 pts 5 to 24 VDC; sourcing type (PNP) C200H-OD216
12 pts 5 to 24 VDC; sourcing type (PNP) C200H-OD217
16 pts 1 A, 24 VDC; sourcing type (PNP); with load
short protection
C200H-OD21A
Analog Timer Unit 4 timer
pts
0.1 to 1 s, 1 to 10 s, 10 to 60 s, or 1 min to
10 min (switchable)
C200H-TM001
Variable Resistor
Connector (Related
Product)
Connector with lead wire (2 m) for 1 external
resistor
C4K-CN223
B7A Interface Units
(Basic I/O Units)
15 or
16 input
pts
Connects to B7A Link Terminals.
C200H-B7AI1
16 out
-
put pts
C200H-B7AO1
Note The
C200H-OC225/OD212/OD21A 16-point Output Unit and the C200H-B7AO1 B7A Interface Unit must
be mounted to a C200H-BCjj1-V1/V2 Backplane.
