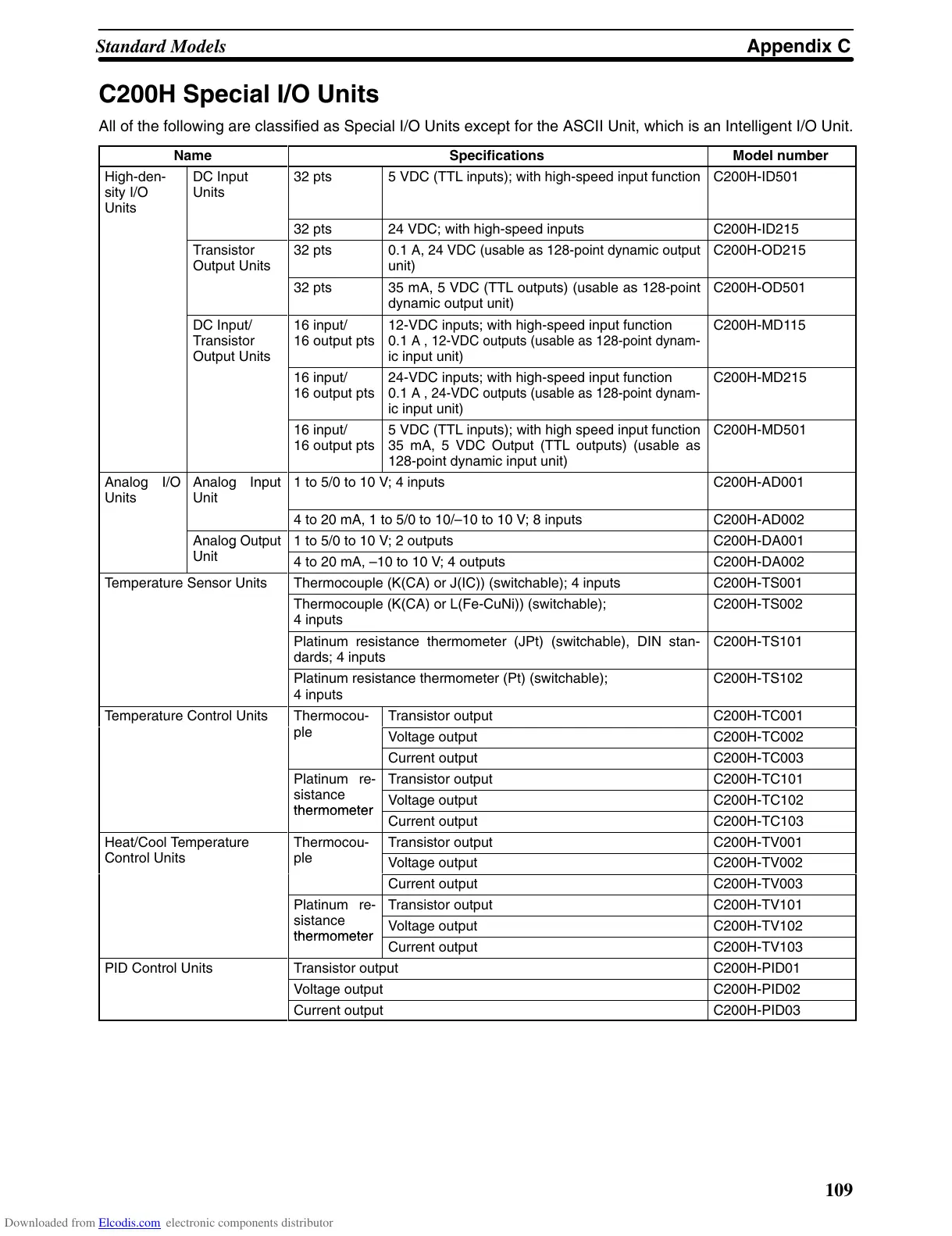

C200H Special I/O Units
All of the following are classified as Special I/O Units except for the ASCII Unit, which is an Intelligent I/O Unit.
Name Specifications Model number
High-den-
sity I/O
Units
DC Input
Units
32 pts 5 VDC (TTL
inputs); with high-speed input function
C200H-ID501
32 pts 24 VDC; with high-speed inputs C200H-ID215
Transistor
Output Units
32 pts 0.1
A, 24 VDC (usable as 128-point dynamic output
unit)
C200H-OD215
32 pts 35 mA, 5 VDC (TTL outputs) (usable as 128-point
dynamic
output unit)
C200H-OD501
DC Input/
Transistor
Output Units
16 input/
16 output pts
12-VDC inputs; with high-speed input function
0.1
A , 12-VDC outputs (usable as 128-point dynam
-
ic
input unit)
C200H-MD115
16 input/
16 output pts
24-VDC inputs; with high-speed input function
0.1
A , 24-VDC outputs (usable as 128-point dynam
-
ic
input unit)
C200H-MD215
16 input/
16 output pts
5 VDC (TTL inputs); with high speed input
function
35 mA, 5 VDC Output (TTL outputs) (usable as
128-point dynamic input unit)
C200H-MD501
Analog I/O
Units
Analog Input
Unit
1
to 5/0 to 10 V
; 4 inputs C200H-AD001
4 to 20 mA, 1 to 5/0 to 10/–10 to 10 V
; 8 inputs C200H-AD002
Analog
Output
Unit
4 to 20 mA, –10 to 10 V; 4 outputs C200H-DA002
Temperature Sensor Units Thermocouple (K(CA) or J(IC)) (switchable); 4 inputs C200H-TS001
Thermocouple (K(CA) or L(Fe-CuNi)) (switchable);
4 inputs
C200H-TS002
Platinum resistance thermometer (JPt) (switchable), DIN stan-
dards; 4 inputs
C200H-TS101
Platinum resistance thermometer (Pt) (switchable);
4 inputs
C200H-TS102
Temperature Control Units Thermocou-
ermometer
Current
output
C200H-TV103
PID Control Units Transistor output C200H-PID01
V
oltage output
C200H-PID02
Current output C200H-PID03
