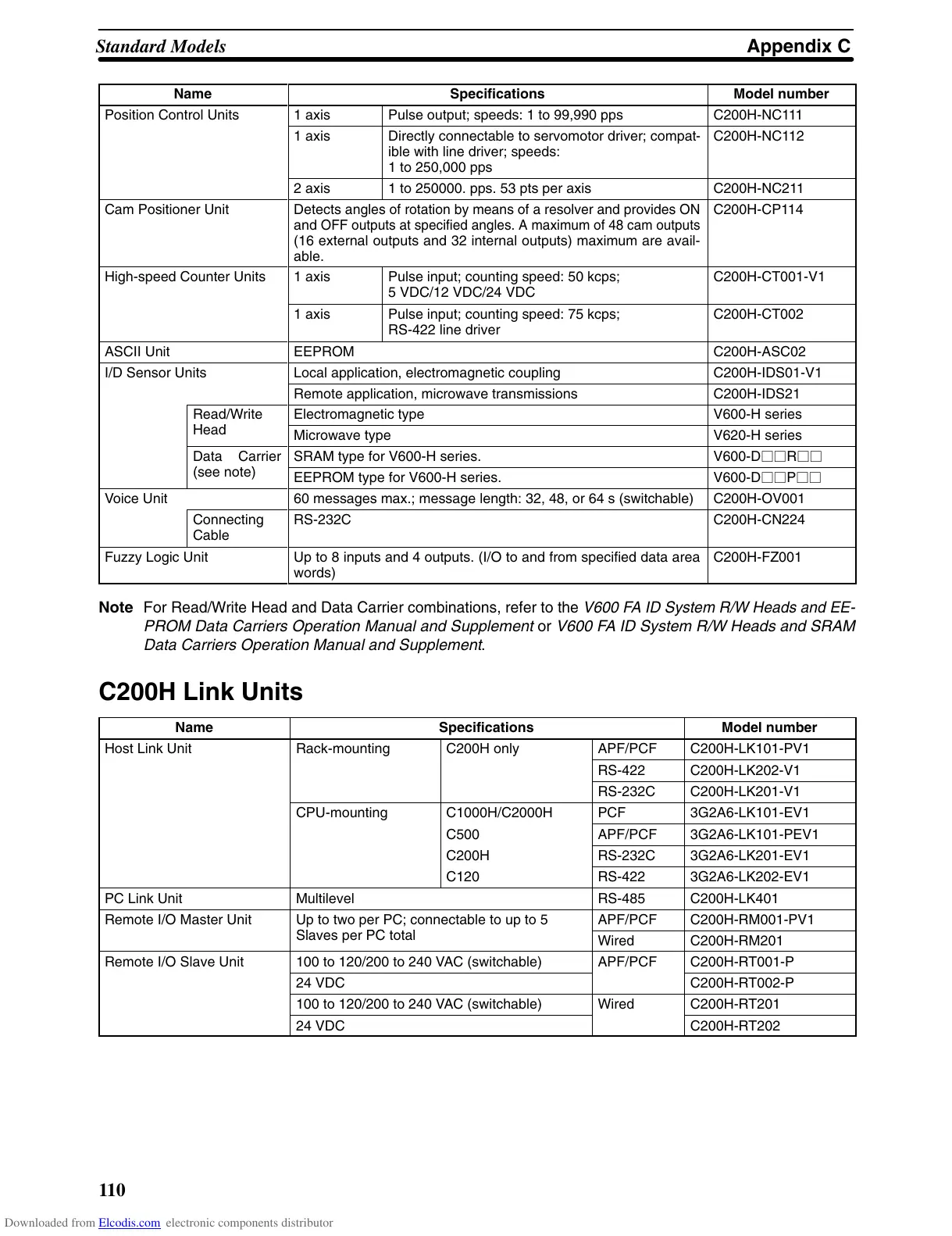

Appendix CStandard Models
110
Name Model numberSpecifications
Position Control Units 1 axis Pulse output; speeds: 1 to 99,990 pps C200H-NC111
1 axis Directly connectable to servomotor driver; compat-
ible with line driver; speeds:
1 to 250,000 pps
C200H-NC112
2 axis 1 to 250000. pps. 53 pts per axis C200H-NC211
Cam Positioner Unit Detects
angles of rotation by means of a resolver and provides ON
and
OFF outputs at specified angles. A maximum of
48 cam outputs
(16 external outputs and 32 internal outputs) maximum are avail-
able.
C200H-CP114
High-speed Counter Units 1 axis Pulse input; counting speed: 50 kcps;
5 VDC/12 VDC/24 VDC
C200H-CT001-V1
1 axis Pulse input; counting speed: 75 kcps;
RS-422 line driver
C200H-CT002
ASCII Unit EEPROM C200H-ASC02
I/D Sensor Units Local application, electromagnetic coupling C200H-IDS01-V1
Remote application, microwave transmissions C200H-IDS21
Read/Write
Electromagnetic type V600-H series
Head
Microwave type V620-H series
Data Carrier
SRAM type for V600-H series. V600-DjjRjj
(see note)
EEPROM type for V600-H series. V600-DjjPjj
Voice Unit 60 messages max.; message length: 32, 48, or 64 s (switchable) C200H-OV001
Connecting
Cable
RS-232C C200H-CN224
Fuzzy Logic Unit Up to 8 inputs and 4 outputs. (I/O to and from specified data area
words)
C200H-FZ001
Note For
Read/W
rite Head and Data Carrier combinations, refer to the
V600 F
A ID System R/W Heads and EE
-
PROM Data Carriers Operation Manual and Supplement
or
V600 FA ID System R/W Heads and SRAM
Data Carriers Operation Manual and Supplement
.
C200H Link Units
Name Specifications Model number
Host Link Unit Rack-mounting C200H only APF/PCF C200H-LK101-PV1
RS-422 C200H-LK202-V1
RS-232C C200H-LK201-V1
CPU-mounting C1000H/C2000H PCF 3G2A6-LK101-EV1
C500 APF/PCF 3G2A6-LK101-PEV1
C200H RS-232C 3G2A6-LK201-EV1
C120 RS-422 3G2A6-LK202-EV1
PC Link Unit Multilevel RS-485 C200H-LK401
Remote I/O Master Unit
Up to two per PC; connectable to up to 5
APF/PCF C200H-RM001-PV1
Slaves per PC total
Wired C200H-RM201
Remote I/O Slave Unit
100 to 120/200 to 240 V
AC (switchable) APF/PCF C200H-RT001-P
24 VDC C200H-RT002-P
100 to 120/200 to 240 V
AC (switchable) Wired C200H-RT201
24 VDC C200H-RT202
