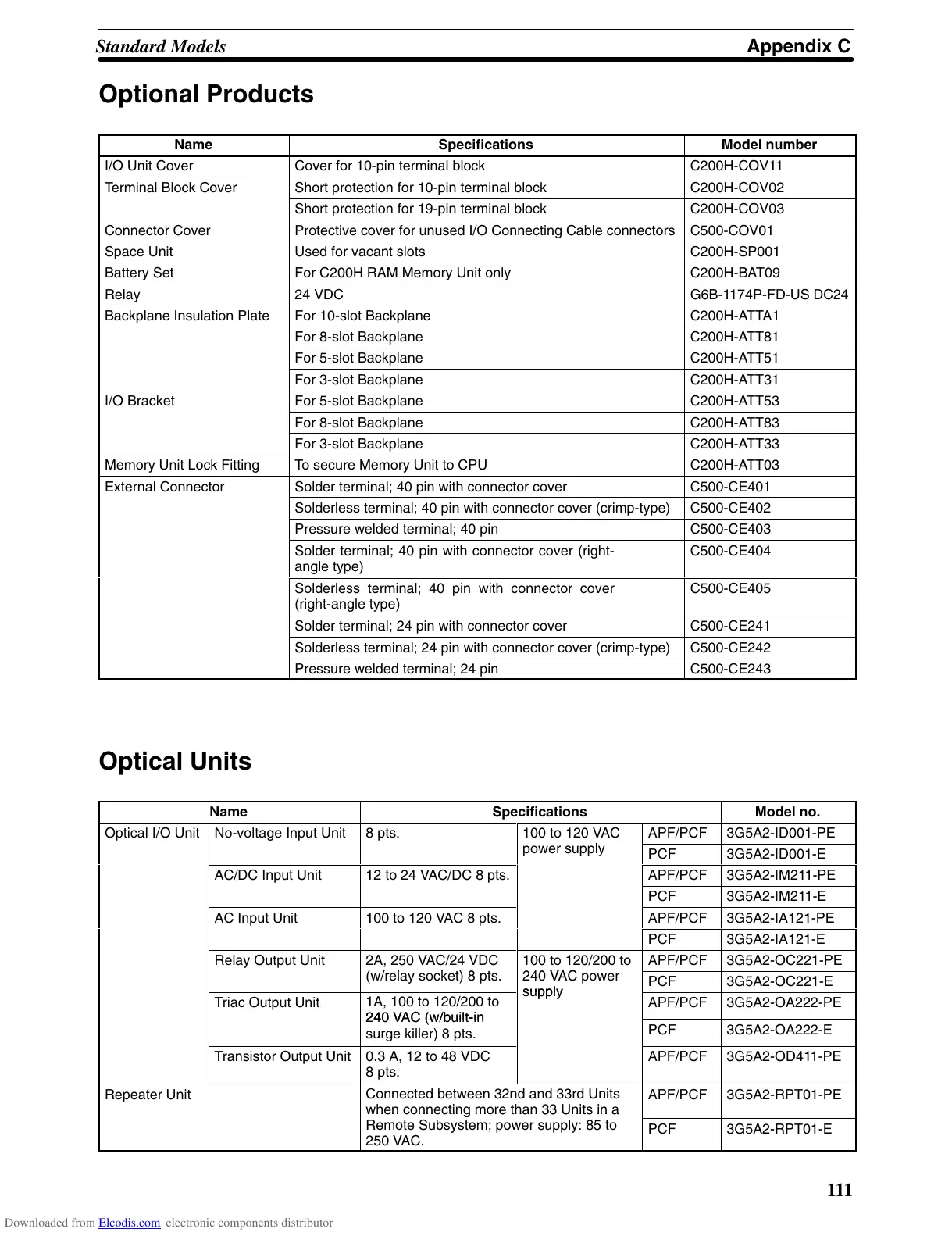

Appendix CStandard Models
111
Optional Products
Name Specifications Model number
I/O Unit Cover Cover for 10-pin terminal block C200H-COV11
Terminal Block Cover Short protection for 10-pin terminal block C200H-COV02
Short protection for 19-pin terminal block C200H-COV03
Connector Cover Protective cover for unused I/O Connecting Cable connectors C500-COV01
Space Unit Used for vacant slots C200H-SP001
Battery Set For C200H RAM Memory Unit only C200H-BAT09
Relay 24 VDC G6B-1174P-FD-US DC24
Backplane Insulation Plate For 10-slot Backplane C200H-ATTA1
For 8-slot Backplane C200H-ATT81
For 5-slot Backplane C200H-ATT51
For 3-slot Backplane C200H-ATT31
I/O Bracket For 5-slot Backplane C200H-ATT53
For 8-slot Backplane C200H-ATT83
For 3-slot Backplane C200H-ATT33
Memory Unit Lock Fitting To secure Memory Unit to CPU C200H-ATT03
External Connector Solder terminal; 40 pin with connector cover C500-CE401
Solderless terminal; 40 pin with connector cover (crimp-type) C500-CE402
Pressure welded terminal; 40 pin C500-CE403
Solder terminal; 40 pin with connector cover (right-
angle type)
C500-CE404
Solderless terminal; 40 pin with connector cover
(right-angle type)
C500-CE405
Solder terminal; 24 pin with connector cover C500-CE241
Solderless terminal; 24 pin with connector cover (crimp-type) C500-CE242
Pressure welded terminal; 24 pin C500-CE243
Optical Units
Name Specifications Model no.
Optical I/O Unit No-voltage Input Unit 8 pts.
100 to 120 VAC
l
APF/PCF 3G5A2-ID001-PE
power supply
PCF 3G5A2-ID001-E
AC/DC Input Unit 12 to 24 VAC/DC 8 pts. APF/PCF 3G5A2-IM211-PE
PCF 3G5A2-IM211-E
AC Input Unit 100 to 120 VAC 8 pts. APF/PCF 3G5A2-IA121-PE
PCF 3G5A2-IA121-E
Relay Output Unit
2A, 250 VAC/24 VDC
(/ l k)8
100 to 120/200 to
240 VAC
APF/PCF 3G5A2-OC221-PE
,
(w/relay socket) 8 pts. 240 VAC power
su
pp
ly
PCF 3G5A2-OC221-E
Triac Output Unit
1A, 100 to 120/200 to
240 VAC (w/built-in
supp
l
y
APF/PCF 3G5A2-OA222-PE
240 VAC (
w
/b
u
ilt
-
i
n
surge killer) 8 pts.
PCF 3G5A2-OA222-E
Transistor Output Unit 0.3 A, 12 to 48 VDC
8 pts.
APF/PCF 3G5A2-OD411-PE
Repeater Unit
Connected between 32nd and 33rd Units
when connecting more than 33 Units in a
APF/PCF 3G5A2-RPT01-PE
when connecting more than 33 Units in a
Remote Subsystem; power supply: 85 to
250 VAC.
PCF 3G5A2-RPT01-E
