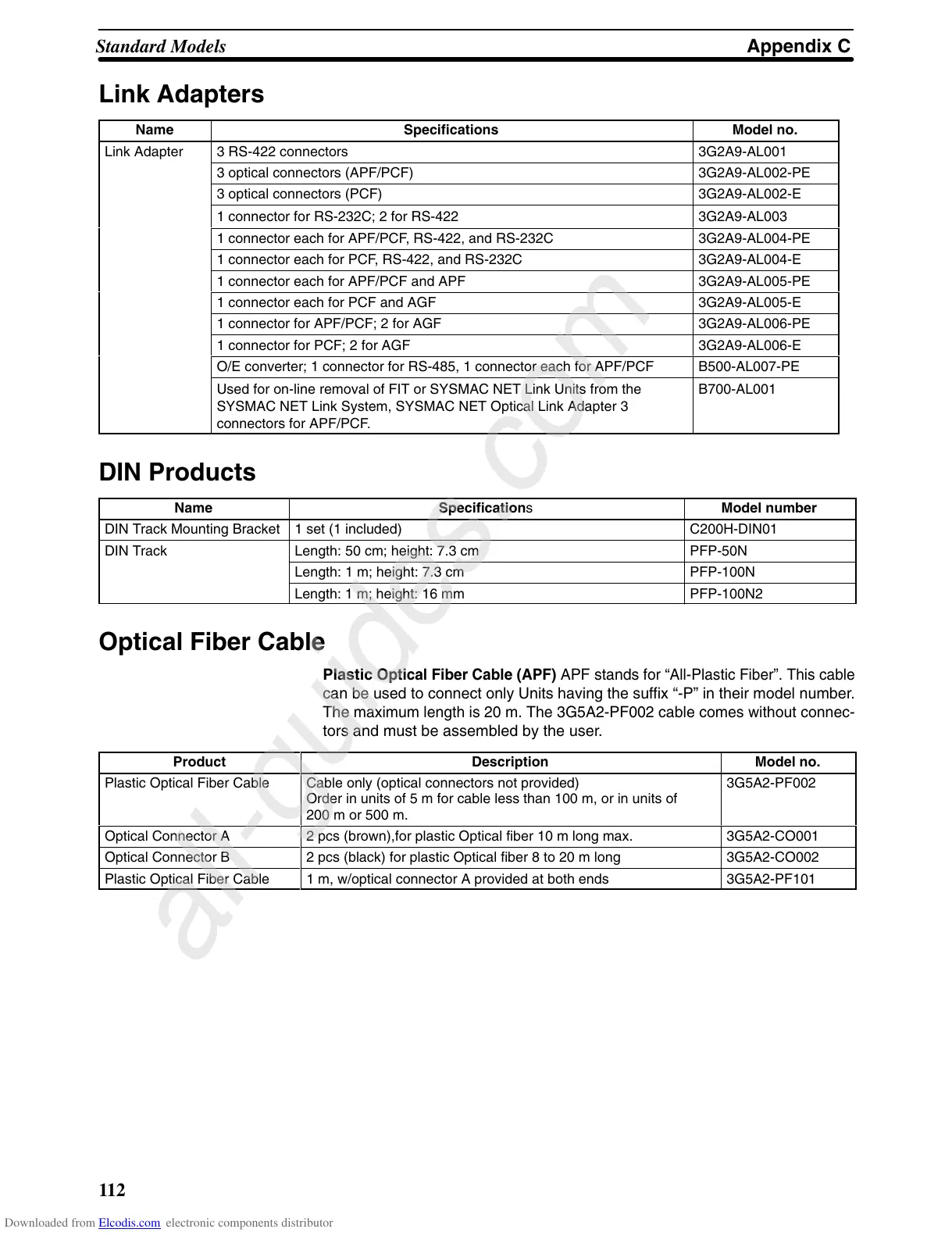

Appendix CStandard Models
112
Link Adapters
Name Specifications Model no.
Link Adapter 3 RS-422 connectors 3G2A9-AL001
3 optical connectors (APF/PCF) 3G2A9-AL002-PE
3 optical connectors (PCF) 3G2A9-AL002-E
1 connector for RS-232C; 2 for RS-422 3G2A9-AL003
1 connector each for APF/PCF, RS-422, and RS-232C 3G2A9-AL004-PE
1 connector each for PCF, RS-422, and RS-232C 3G2A9-AL004-E
1 connector each for APF/PCF and APF 3G2A9-AL005-PE
1 connector each for PCF and AGF 3G2A9-AL005-E
1 connector for APF/PCF; 2 for AGF 3G2A9-AL006-PE
1 connector for PCF; 2 for AGF 3G2A9-AL006-E
O/E converter; 1 connector for RS-485, 1 connector each for APF/PCF B500-AL007-PE
Used for on-line removal of FIT or SYSMAC NET Link Units from the
SYSMAC NET Link System, SYSMAC NET Optical Link Adapter 3
connectors for APF/PCF.
B700-AL001
DIN Products
Name Specifications Model number
DIN Track Mounting Bracket 1 set (1 included) C200H-DIN01
DIN Track Length: 50 cm; height: 7.3 cm PFP-50N
Length: 1 m; height: 7.3 cm PFP-100N
Length: 1 m; height: 16 mm
PFP-100N2
Optical Fiber Cable
Plastic
Optical Fiber Cable (APF)
APF stands
for “All-Plastic Fiber”. This cable
can
be
used to connect only Units having the suf
fix “-P” in their model number
.
The
maximum length is 20
m. The 3G5A2-PF002 cable comes without connec
-
tors and must be assembled by the user.
Product Description Model no.
Plastic Optical Fiber Cable Cable only (optical connectors not provided)
Order in units of 5 m for cable less than 100 m, or in units of
200 m or 500 m.
3G5A2-PF002
Optical Connector A 2 pcs (brown),for plastic Optical fiber 10 m long max. 3G5A2-CO001
Optical Connector B 2 pcs (black) for plastic Optical fiber 8 to 20 m long 3G5A2-CO002
Plastic Optical Fiber Cable 1 m, w/optical connector A provided at both ends 3G5A2-PF101
