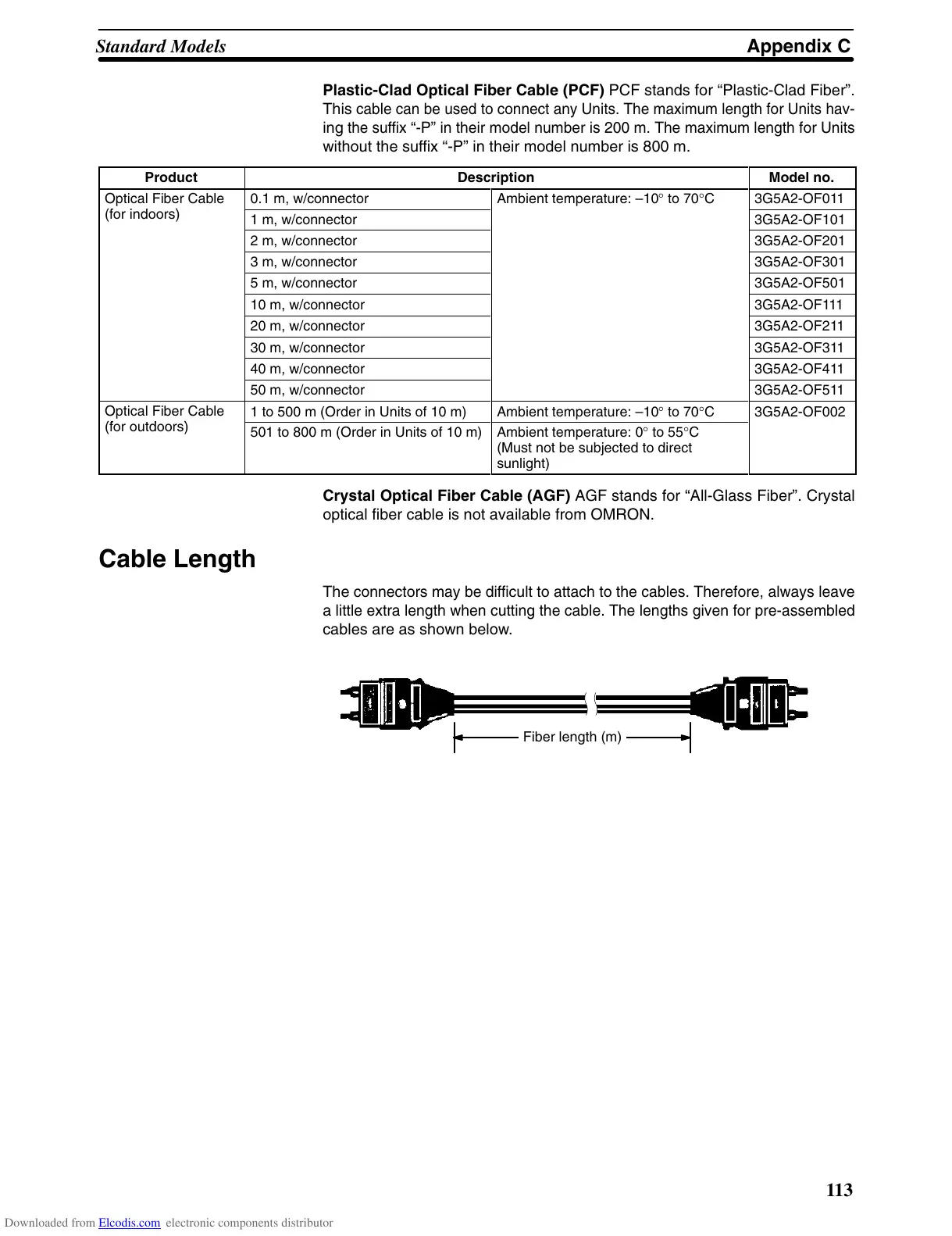

Plastic-Clad Optical Fiber Cable (PCF) PCF stands for “Plastic-Clad Fiber”.
This
cable can be used to connect any Units. The maximum length for Units hav
-
ing
the suf
fix “-P” in their model number is 200 m. The maximum length for
Units
without the suffix “-P” in their model number is 800 m.
Product Description Model no.
Optical Fiber Cable
0.1 m, w/connector Ambient temperature: –10°
to 70
°C 3G5A2-OF011
(for indoors)
1 m, w/connector 3G5A2-OF101
2 m, w/connector 3G5A2-OF201
3 m, w/connector 3G5A2-OF301
5 m, w/connector 3G5A2-OF501
10 m, w/connector 3G5A2-OF111
20 m, w/connector 3G5A2-OF211
30 m, w/connector 3G5A2-OF311
40 m, w/connector 3G5A2-OF411
50 m, w/connector 3G5A2-OF511
Optical Fiber Cable
1 to 500 m (Order in Units of 10 m) Ambient temperature: –10°
to 70
°C 3G5A2-OF002
(for outdoors)
501 to 800 m (Order in Units of 10 m) Ambient temperature: 0°
to 55
°C
(Must not be subjected to direct
sunlight)
Crystal Optical Fiber Cable (AGF) AGF stands for “All-Glass Fiber”. Crystal
optical fiber cable is not available from OMRON.
Cable Length
The
connectors may be dif
ficult to attach to the cables. Therefore, always leave
a
little extra length when cutting the cable. The lengths given for pre-assembled
cables are as shown below.
Fiber length (m)
