7-2SectionWiring
58
When

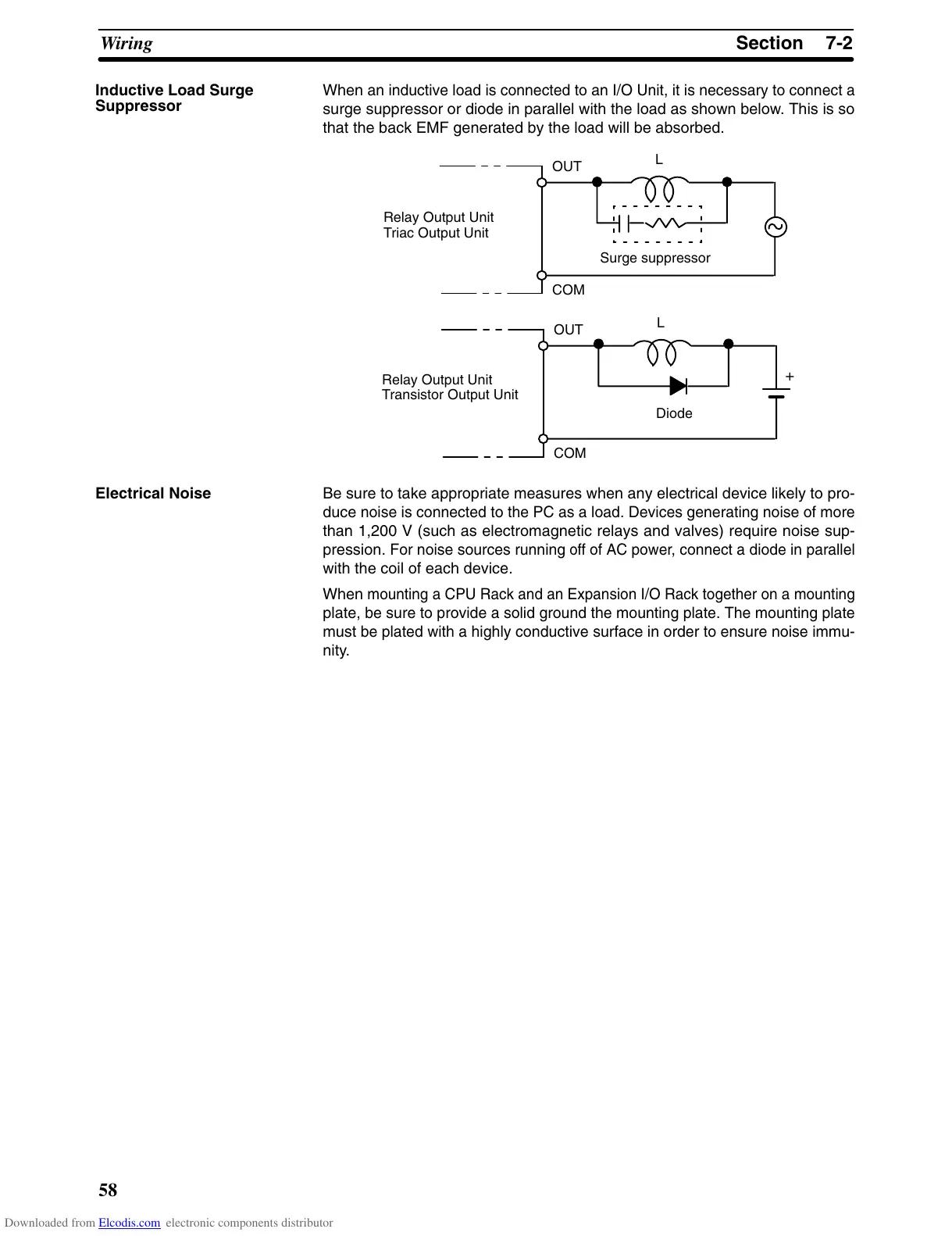

an inductive load is connected to an I/O Unit, it is necessary to connect a
surge suppressor or diode in parallel with the load as shown below. This is so
that the back EMF generated by the load will be absorbed.
Relay Output Unit
Transistor Output Unit
L
OUT
COM
Surge suppressor
L
OUT
COM
Relay Output Unit
Triac Output Unit
+
Diode
Be
sure to take appropriate measures when any electrical device likely to pro
-
duce
noise is connected to the PC as a load. Devices generating noise of more
than 1,200 V (such as electromagnetic relays and valves) require noise sup-
pression.
For noise sources running
of
f of AC power
, connect a diode in parallel
with the coil of each device.
When
mounting a CPU Rack and an Expansion I/O Rack together on a mounting
plate,
be sure to provide a solid ground the mounting plate. The mounting plate
must
be plated with a
highly conductive surface in order to ensure noise immu
-
nity.
Inductive Load Surge
Suppressor
Electrical Noise
