59

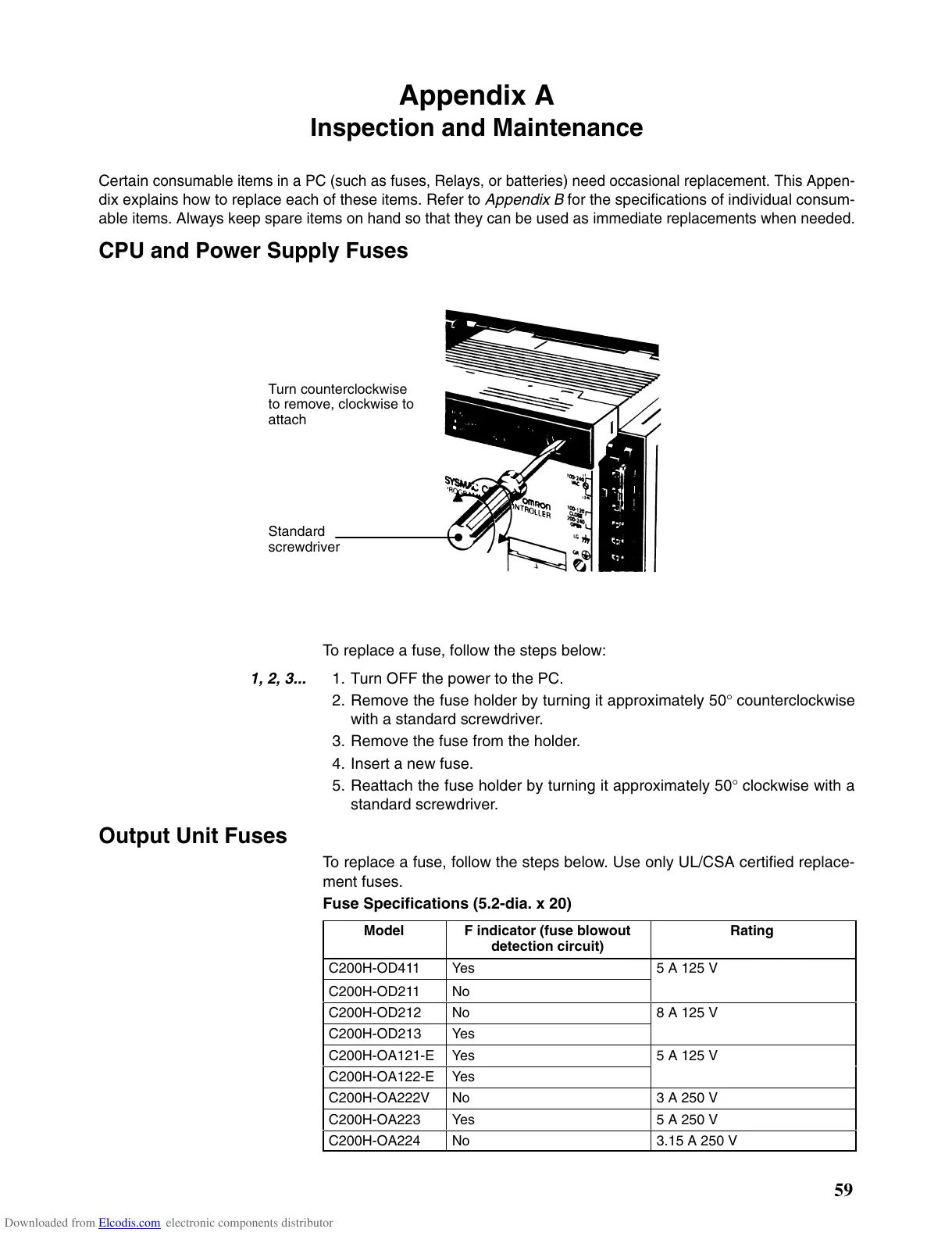

Appendix A
Inspection and Maintenance
Certain
consumable items in a PC (such as fuses, Relays, or batteries) need occasional replacement. This Appen
-
dix
explains how to replace each of these items. Refer to
Appendix
B
for the specifications of individual consum
-
able
items. Always keep spare items on hand so that they can be used as immediate replacements when needed.
CPU and Power Supply Fuses
Standard
screwdriver
Turn counterclockwise
to remove, clockwise to
attach
To replace a fuse, follow the steps below:
1, 2, 3...
1. Turn OFF the power to the PC.
2. Remove the fuse holder by turning it approximately 50° counterclockwise
with a standard screwdriver.
3. Remove the fuse from the holder.
4. Insert a new fuse.
5. Reattach the fuse holder by turning it approximately 50° clockwise with a
standard screwdriver.
Output Unit Fuses
To replace a fuse, follow the steps below. Use only UL/CSA certified replace-
ment fuses.
Fuse Specifications (5.2-dia. x 20)
Model F indicator (fuse blowout
detection circuit)
Rating
C200H-OD411 Yes 5 A 125 V
C200H-OD211 No
C200H-OD212 No 8 A 125 V
C200H-OD213 Yes
C200H-OA121-E Yes 5 A 125 V
C200H-OA122-E Yes
C200H-OA222V No 3 A 250 V
C200H-OA223 Yes 5 A 250 V
C200H-OA224 No 3.15 A 250 V
