Omron SYSMAC C200H CPU01-E User Manual

!
65

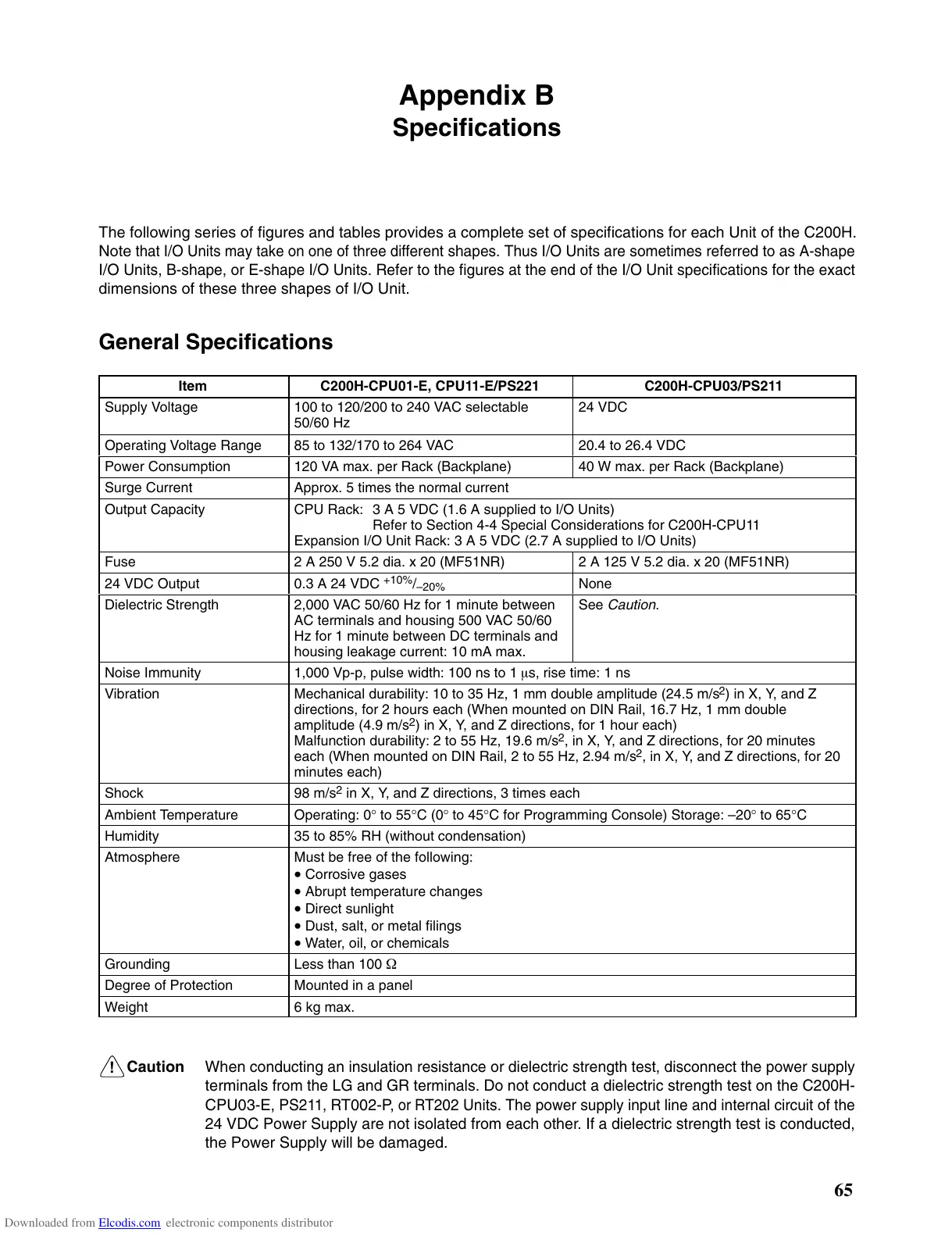

Appendix B
Specifications
The following series of figures and tables provides a complete set of specifications for each Unit of the C200H.
Note that I/O Units may take on one of three dif ferent shapes. Thus I/O Units are sometimes referred to as A-shape
I/O Units, B-shape, or E-shape I/O Units. Refer to the figures at the end of the I/O Unit specifications for the exact
dimensions of these three shapes of I/O Unit.
General Specifications
Item C200H-CPU01-E, CPU11-E/PS221 C200H-CPU03/PS211
Supply Voltage 100 to 120/200 to 240 V AC selectable
50/60 Hz
24 VDC
Operating Voltage Range 85 to 132/170 to 264 V AC 20.4 to 26.4 VDC
Power Consumption 120 VA max. per Rack (Backplane) 40 W max. per Rack (Backplane)
Surge Current Approx. 5 times the normal current
Output Capacity CPU Rack: 3 A 5 VDC (1.6 A supplied to I/O Units)
Refer to Section 4-4 Special Considerations for C200H-CPU11
Expansion I/O Unit Rack: 3 A 5 VDC (2.7 A supplied to I/O Units)
Fuse 2 A 250 V 5.2 dia. x 20 (MF51NR) 2 A 125 V 5.2 dia. x 20 (MF51NR)
24 VDC Output 0.3 A 24 VDC
+10%
/
–20%
None
Dielectric Strength 2,000 VAC 50/60 Hz for 1 minute between
AC terminals and housing 500 VAC 50/60
Hz for 1 minute between DC terminals and
housing leakage current: 10 mA max.
See Caution .
Noise Immunity 1,000 Vp-p, pulse width: 100 ns to 1 ms, rise time: 1 ns
Vibration Mechanical durability: 10 to 35 Hz, 1 mm double amplitude (24.5 m/s
2
) in X, Y, and Z
directions, for 2 hours each (When mounted on DIN Rail, 16.7 Hz, 1 mm double
amplitude (4.9 m/s
2
) in X, Y, and Z directions, for 1 hour each)
Malfunction durability: 2 to 55 Hz, 19.6 m/s
2
, in X, Y, and Z directions, for 20 minutes
each (When mounted on DIN Rail, 2 to 55 Hz, 2.94 m/s
2
, in X, Y, and Z directions, for 20
minutes each)
Shock 98 m/s
2
in X, Y, and Z directions, 3 times each
Ambient Temperature Operating: 0° to 55 °C (0° to 45 °C for Programming Console) Storage: –20° to 65 °C
Humidity 35 to 85% RH (without condensation)
Atmosphere Must be free of the following:
• Corrosive gases
• Abrupt temperature changes
• Direct sunlight
• Dust, salt, or metal filings
• Water, oil, or chemicals
Grounding Less than 100 W
Degree of Protection Mounted in a panel
Weight 6 kg max.
Caution When conducting an insulation resistance or dielectric strength test, disconnect the power supply
terminals from the LG and GR terminals. Do not conduct a dielectric strength test on the C200H-
CPU03-E, PS21 1, R T002-P , or R T202 Units. The power supply input line and internal circuit of the
24 VDC Power Supply are not isolated from each other . If a dielectric strength test is conducted,
the Power Supply will be damaged.
