Appendix BSpecifications
78

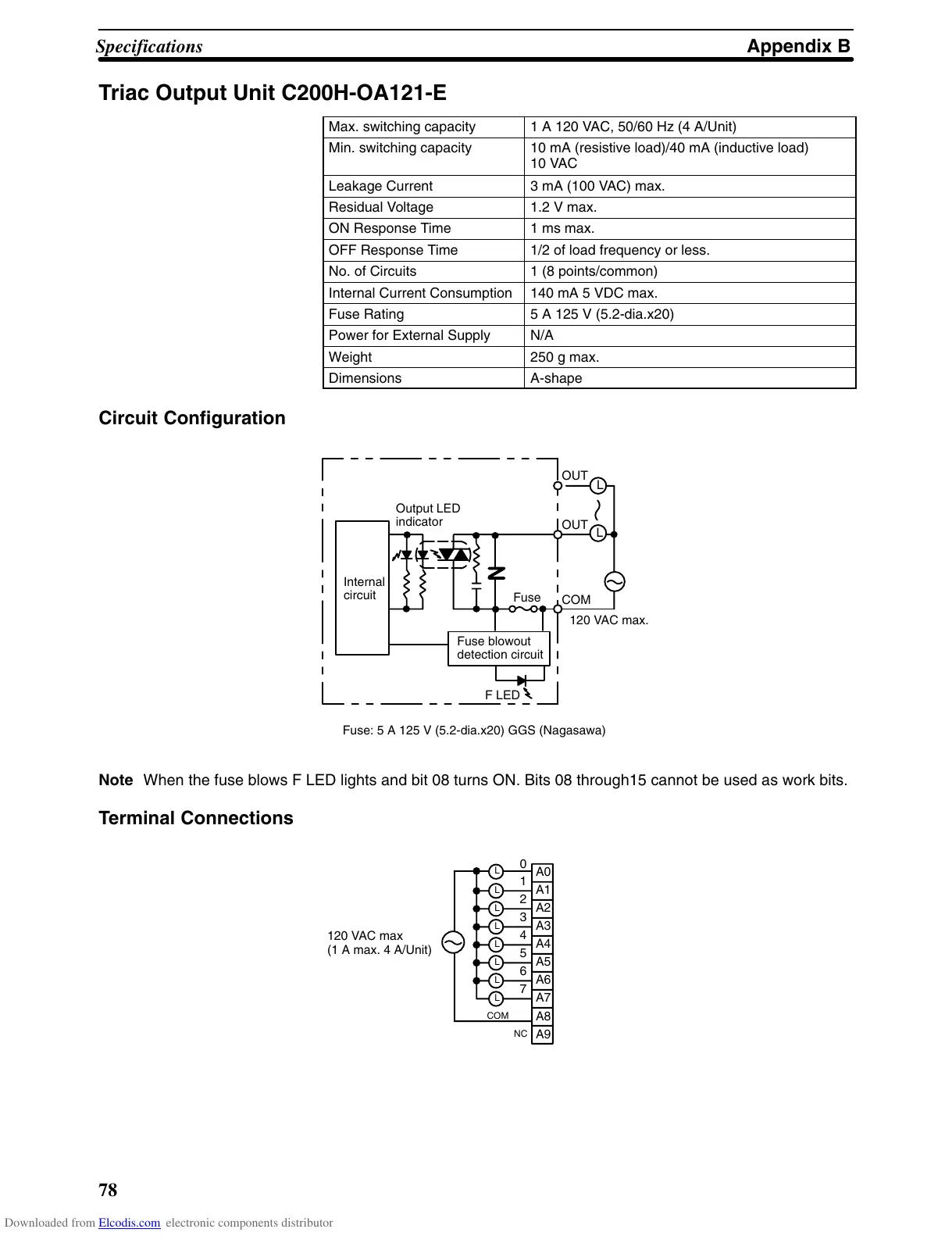

Triac Output Unit C200H-OA121-E
Max. switching capacity 1 A 120 VAC, 50/60 Hz (4 A/Unit)
Min. switching capacity 10 mA (resistive load)/40 mA (inductive load)
10 VAC
Leakage Current 3 mA (100 VAC) max.
Residual Voltage 1.2 V max.
ON Response Time 1 ms max.
OFF Response Time 1/2 of load frequency or less.
No. of Circuits 1 (8 points/common)
Internal Current Consumption 140 mA 5 VDC max.
Fuse Rating 5 A 125 V (5.2-dia.x20)
Power for External Supply N/A
Weight 250 g max.
Dimensions A-shape
Circuit Configuration
Internal
circuit
L
OUT
COM
OUT
Output
LED
indicator
L
120 V
AC max.
F LED
Fuse blowout
detection circuit
Fuse: 5 A 125 V (5.2-dia.x20) GGS (Nagasawa)
Fuse
Note When the fuse blows F LED lights and bit 08 turns ON. Bits 08 through15 cannot be used as work bits.
Terminal Connections
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
0
1
2
3
4
5
6
7
L
L
L
L
L
L
L
L
COM
NC
120
V
AC max
(1 A max. 4 A/Unit)
