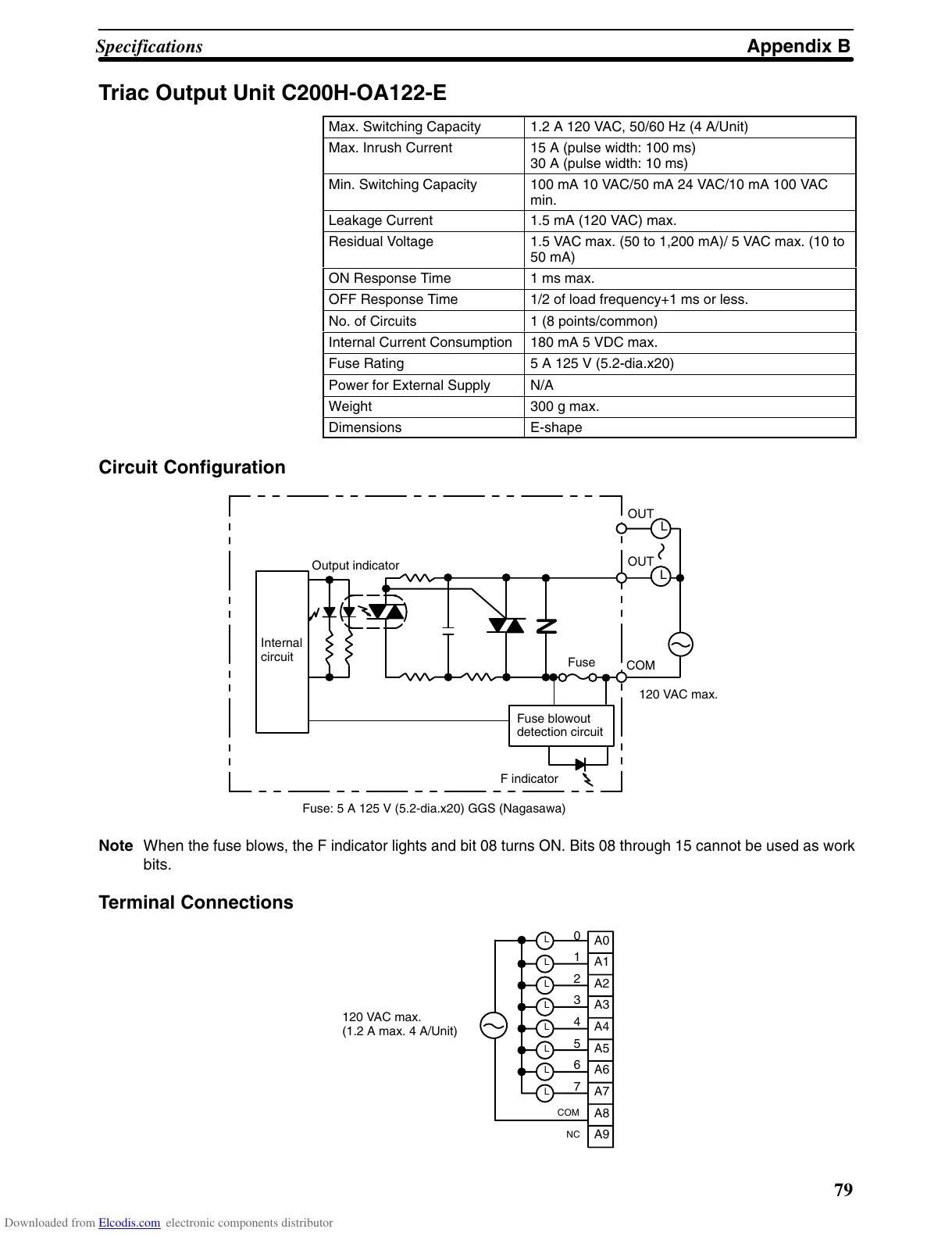

Triac Output Unit C200H-OA122-E
Max. Switching Capacity 1.2 A 120 VAC, 50/60 Hz (4 A/Unit)
Max. Inrush Current 15 A (pulse width: 100 ms)
30 A (pulse width: 10 ms)
Min. Switching Capacity 100 mA 10 VAC/50 mA 24 VAC/10 mA 100 VAC
min.
Leakage Current 1.5 mA (120 VAC) max.
Residual Voltage 1.5 VAC max. (50 to 1,200 mA)/ 5 VAC max. (10 to
50 mA)
ON Response Time 1 ms max.
OFF Response Time 1/2 of load frequency+1 ms or less.
No. of Circuits 1 (8 points/common)
Internal Current Consumption 180 mA 5 VDC max.
Fuse Rating 5 A 125 V (5.2-dia.x20)
Power for External Supply N/A
Weight 300 g max.
Dimensions E-shape
Circuit Configuration
L
Internal
circuit
OUT
COM
OUT
Output
indicator
L
120 V
AC max.
Fuse: 5 A 125 V (5.2-dia.x20) GGS (Nagasawa)
Fuse
F indicator
Fuse blowout
detection circuit
Note When
the fuse blows, the F indicator lights and bit 08 turns ON. Bits 08
through 15 cannot be used as work
bits.
Terminal Connections
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
0
1
2
3
4
5
6
7
L
L
L
L
L
L
L
L
COM
120
V
AC max.
(1.2 A max. 4 A/Unit)
NC
