Appendix BSpecifications
148
Input Specifications (Connector 2)
Rated Input Voltage 24 VDC
Operating Input Voltage 20.4 to 26.4 VDC
Input Impedance 5.6 kΩ
Input Current 4.1 mA (at 24 VDC)
ON Voltage 14.4.0 VDC min.
OFF Voltage 5.0 VDC max.
General Specifications
No. of Circuits 2 (dynamic, 64 points/circuit)
Internal Current Consumption 180 mA 5 VDC max.
Weight 300 g max.
Dimensions 130×34.5×100.5 (H×W×D, in millimeters)

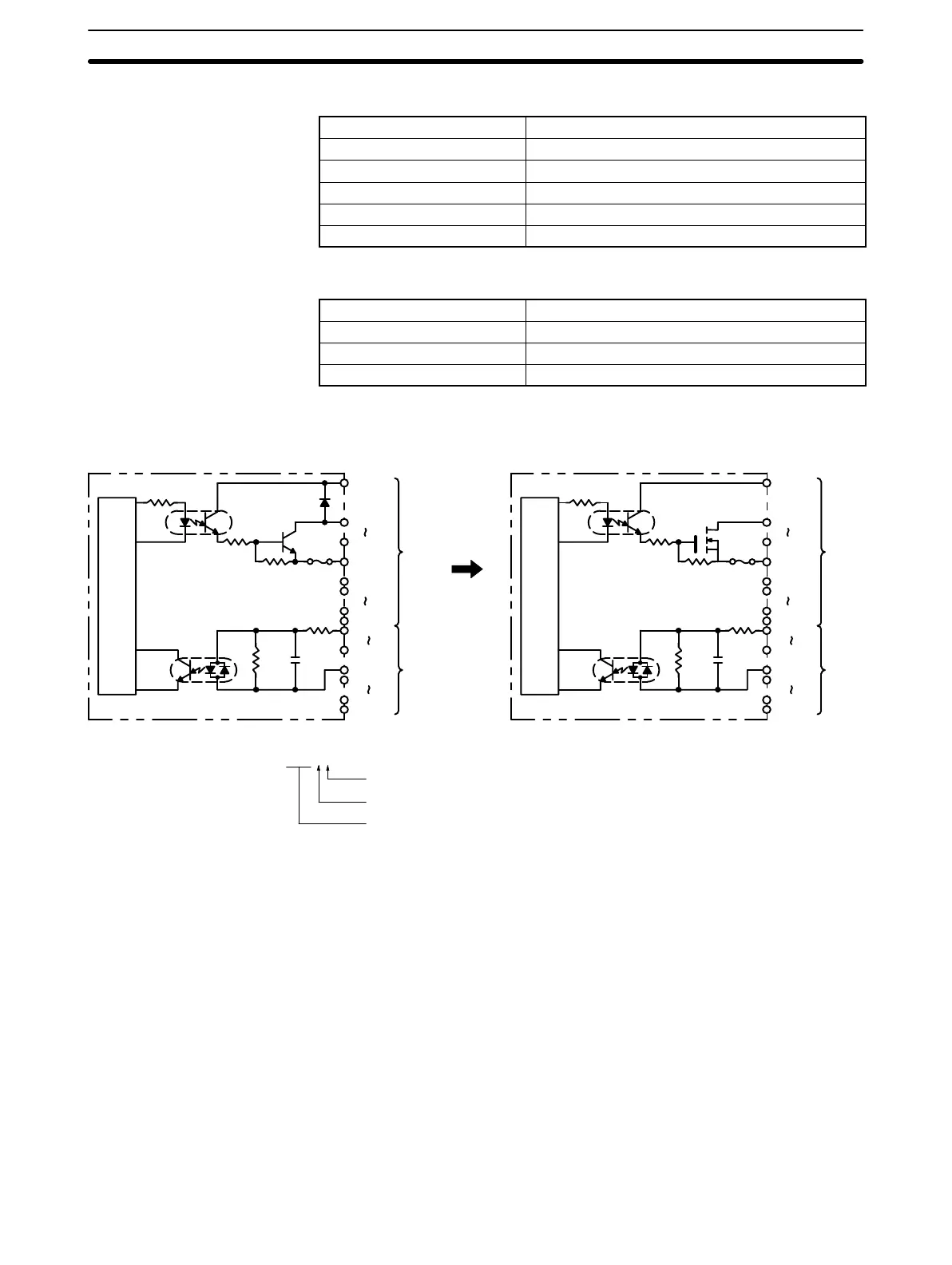

Circuit Configuration
Units manufactured on or before November 29th, 1999
(manufacturing numbers 29Y9 or earlier*)
Units manufactured on or after November 30th, 1999
(manufacturing numbers 30Y9 or later*)
STB00
STB07
COM0
STB08
STB15
COM1
COM2
DATA08
DATA15
COM3
DATA00
DATA07
CN1
CN2
Internal
Circuit
Fuse
5.6 kW
24 VDC
24 VDC
1,000 pF
620 W
STB00
STB07
COM0
STB08
STB15
COM1
COM2
DATA08
DATA15
COM3
DATA00
DATA07
CN1
CN2
Internal
Circuit
Fuse
24 VDC
24 VDC
10 kΩ
8.2 kΩ
15 kΩ
6.8 kΩ
5.6 kW
1,000 pF
620 W
*Manufacturing Numbers
jjY9
Year: Last digit of calendar year; e.g., 1999→9, 2000→0
Month: 1 to 9 (January to September), X (October), Y (November), Z (December)
Day: 01 to 31
