7. Connection Procedure
3

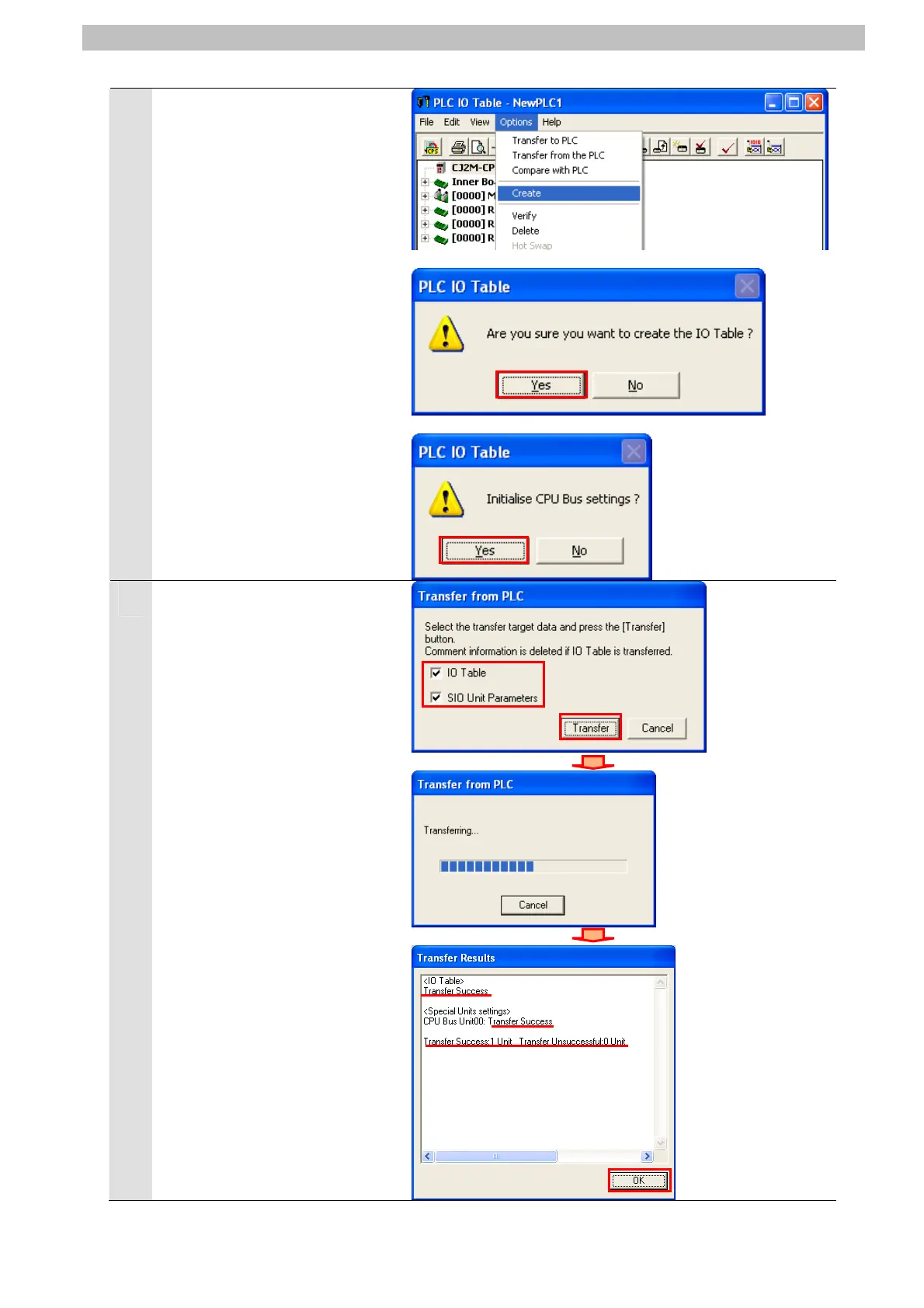

Select Create from the Options
Menu of the PLC I/O Table
Window.
The dialog box on the right is
displayed. Click the Yes Button.
The dialog box on the right is
displayed. Click the Yes Button.
4
The Transfer from PLC Dialog
Box is displayed. Select the I/O
Table Check Box and SIO Unit
Parameters Check Box, and
click the Transfer Button.
When the transfer is completed,
the Transfer Results Dialog Box
is displayed.
Read the message in the dialog
box to confirm that the transfer
was normally executed.
When the I/O table is created
normally, the dialog box shows
the following:
Transfer Success: 1 Unit
Transfer Unsuccessful: 0 Unit
Click the OK Button.
