7. Connection Procedure
7.3.3. Creating the I/O Table
Create the I/O table of the PLC.

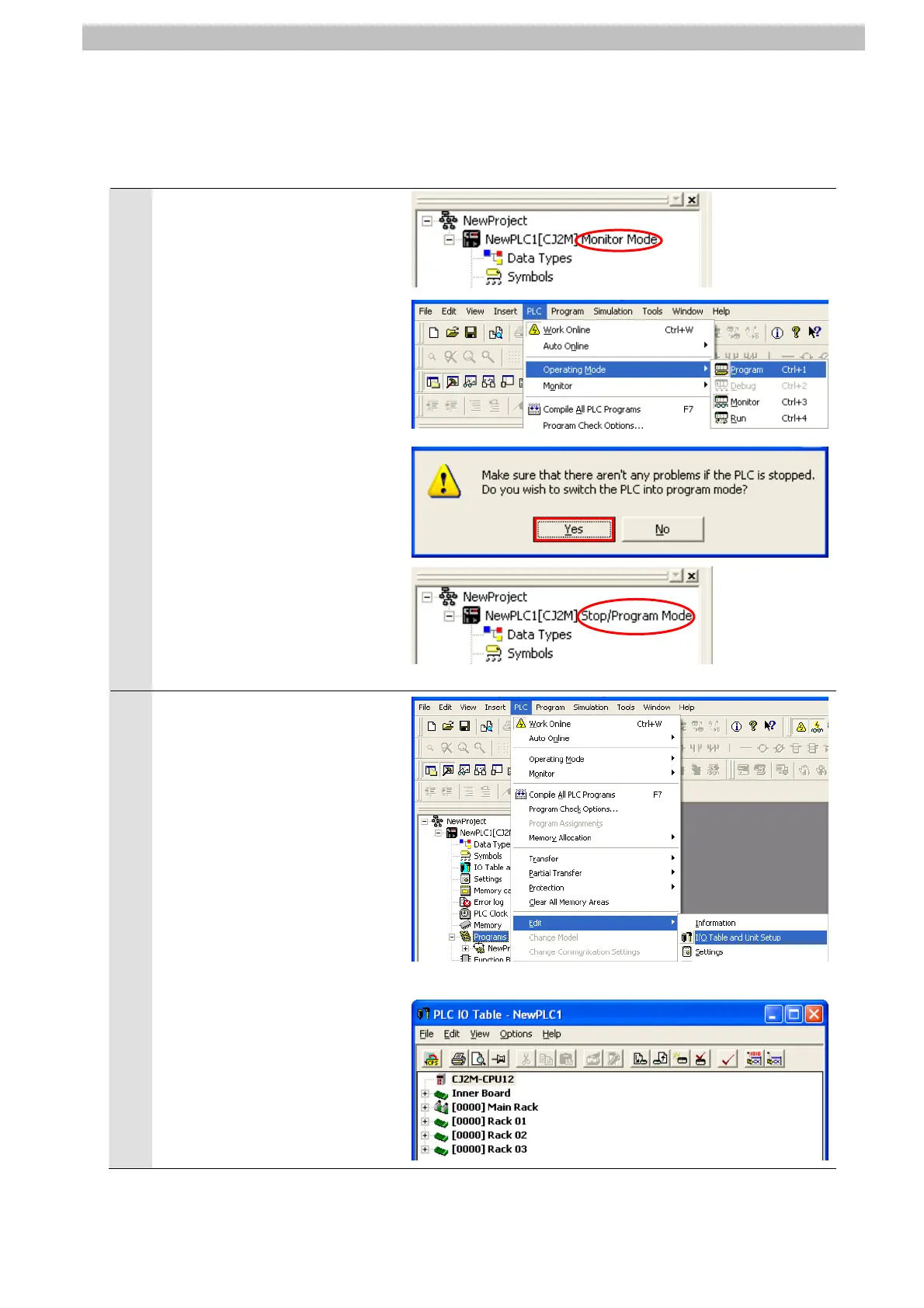

1
If the operating mode of the PLC
is RUN Mode or Monitor Mode,
change it to Program Mode by
following steps (1) to (3).
(1)Select Operating Mode -
Program from the PLC Menu
of the CX-Programmer.
(2)The dialog box on the right is
displayed. Click the Yes
Button.
*Please refer to Additional
Information on the previous
page for the settings
concerning the dialog display.
(3)Confirm that Stop/Program
Mode is displayed on the right
of the PLC model in the
Project workspace of the
CX-Programmer.
(Project workspace)
2
Select Edit - I/O Table and Unit
Setup from the PLC Menu of the
CX-Programmer.
The PLC I/O Table Window is
displayed.
25
To Next Page
