Omron Sysmac NJ-series Connection Guide

5
．
Applicable Devices and Device Configuration
7

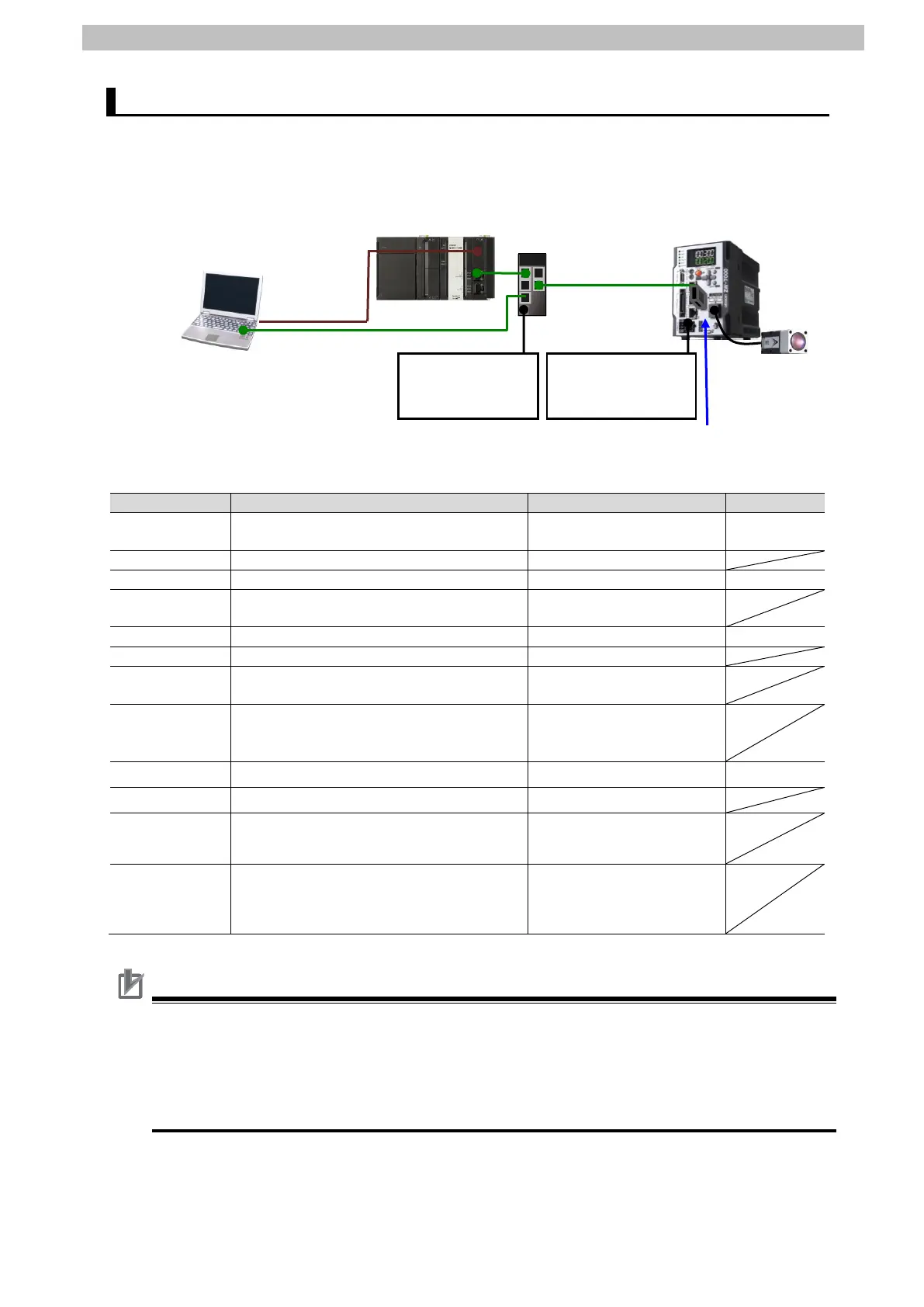

5.2. Device Configuration
The hardware components to reproduce the connection procedures in this document are as
follows:
Manufacturer
Name
Model
Version
OMRON
NJ-series CPU Unit
(Built-in EtherNet/IP port)
NJ501-1500
Ver.1.10
OMRON
Power Supply Unit
NJ-PA3001
OMRON
Switching hub
W4S1-05C
Ver.1.0
-
24 VDC power supply
(for Switching hub)
-
OMRON
Sysmac Studio
SYSMAC-SE2[][][]
Ver.1.15
-
Personal computer (OS: Windows 7)
-
-
USB cable
(USB 2.0 type B connector)
-
-
LAN cable (STP (shielded,
twisted-pair) cable of Ethernet
category 5 or higher)
-
OMRON
Sensor Controller
ZW-7000
Ver.2.020
OMRON Sensor Head ZW-S7030
OMRON Calibration ROM (Supplied with Sensor
Head)
OMRON
24 VDC power supply
(for Sensor Controller)
(24 VDC, 2.5A, 60W)
S8VS-06024
Precautions for Correct Use
Update Sysmac Studio to the version specified in this Clause 5.2. or to a higher version.
If you use a version higher than the one specified, the procedures and related screenshots
described in Section 7. and subsequent sections may not be applicable. In that case, use the
equivalent procedures described in this document by referring to the Sysmac Studio Version
1 Operation Manual (Cat. No. W504).
ZW-7000
24 VDC power
supply
(for Sensor Controller)
ZW-S7030
USB cable
LAN cable
NJ501-1500
(Built-in EtherNet/IP port)
W4S1-05C
Personal computer
(Sysmac Studio installed,
OS: Windows 7)
LAN cable
24 VDC power
supply
(for Switching hub)
Calibration ROM
