Omron Sysmac NJ-series Connection Guide

7
．
EtherNet/IP Connection Procedure
16

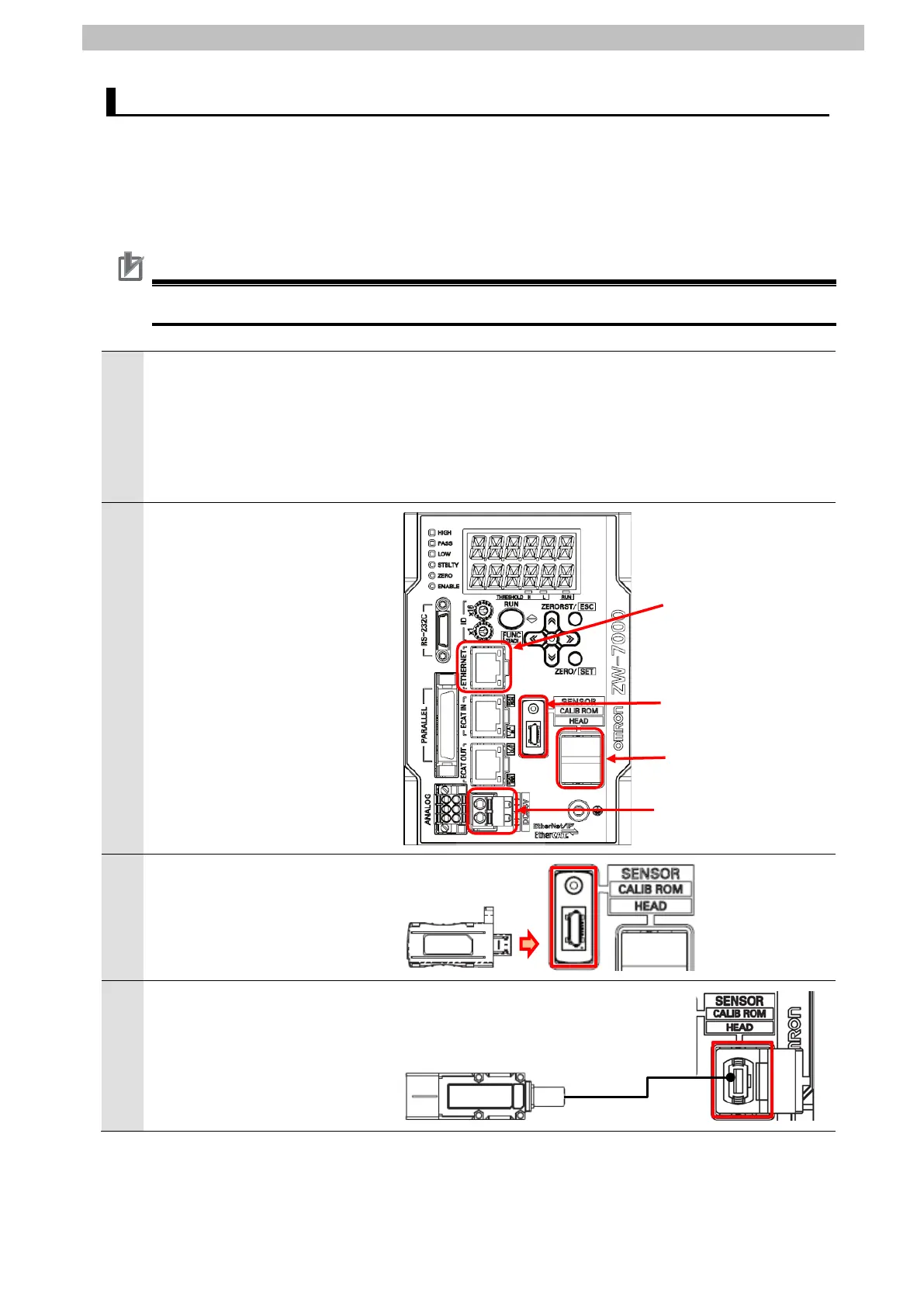

7.2. Sensor Controller Setup
Set up Sensor Controller.
7.2.1. Hardware Settings
Connect cables and others to Sensor Controller.
Precautions for Correct Use
Make sure that the power supply is OFF when you set up.
1
Make sure that Sensor
Controller is powered OFF.
*If it is ON, the settings
described in the following steps
and subsequent procedures
may not be applicable.
2
Check the position of
connectors on Sensor Controller
by referring to the figure on the
right.
3
Connect Calibration ROM to
ROM connector.
4
Connect Fiber connector on
Sensor Head to Fiber adapter.
Fiber adapter
ROM connector
Ethernet
connector
24V input terminal
block
