EtherNet/IP Connection Procedure
22

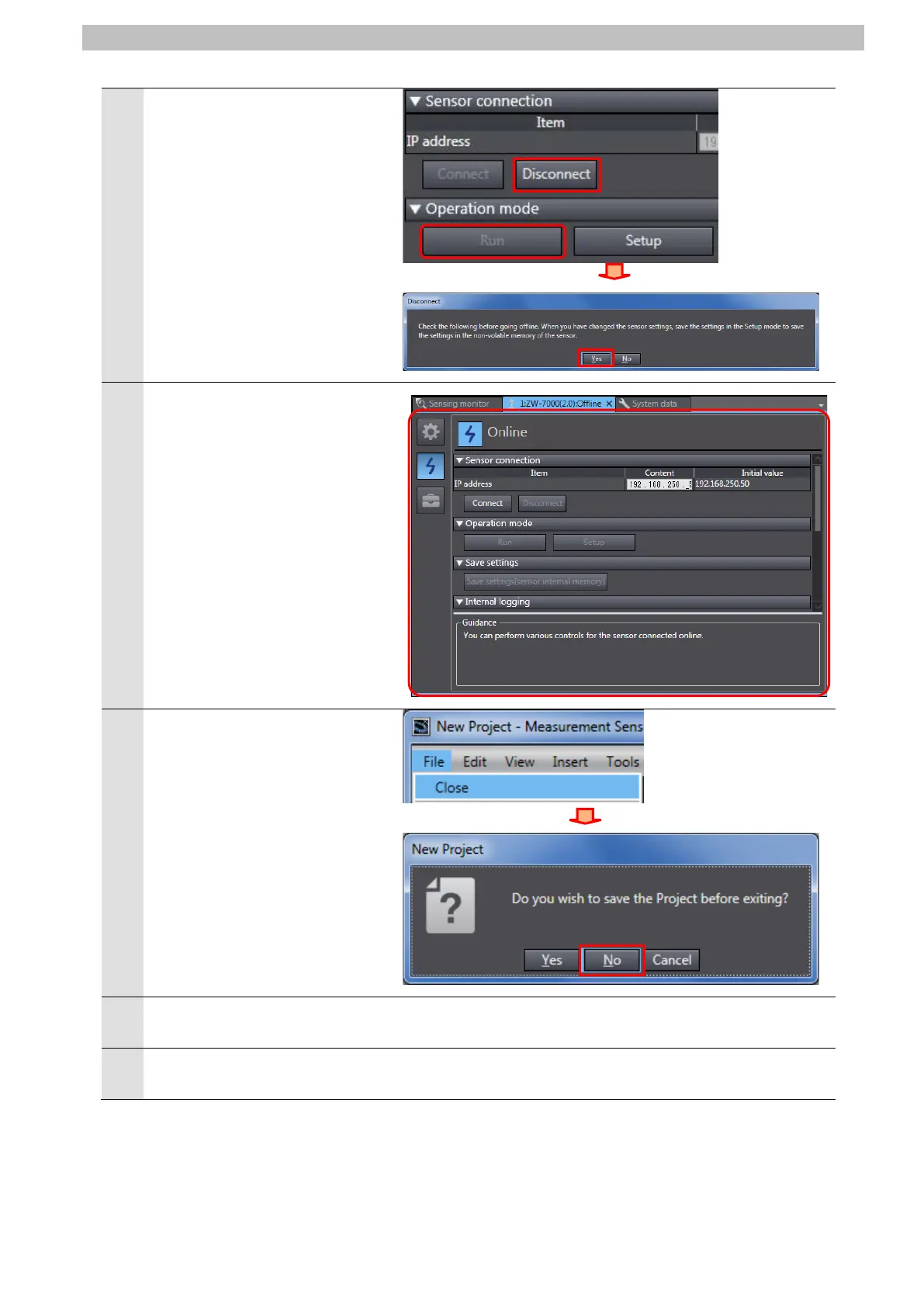

Check that the Run Button in
the Operation mode Field
becomes dim. Click Disconnect
in the Sensor connection Field.
The Disconnect Dialog Box is
displayed. Check the contents
and click Yes.
The connection goes offline, and
the yellow frame surrounding
the Edit Pane disappears.
Select Close from the File
Menu.
The New Project Dialog Box is
displayed.
Click No if you do not need to
save the project.
Turn OFF Sensor Controller and
Switching hub.
Remove the LAN cable from
Ethernet connector.
To Next Page
