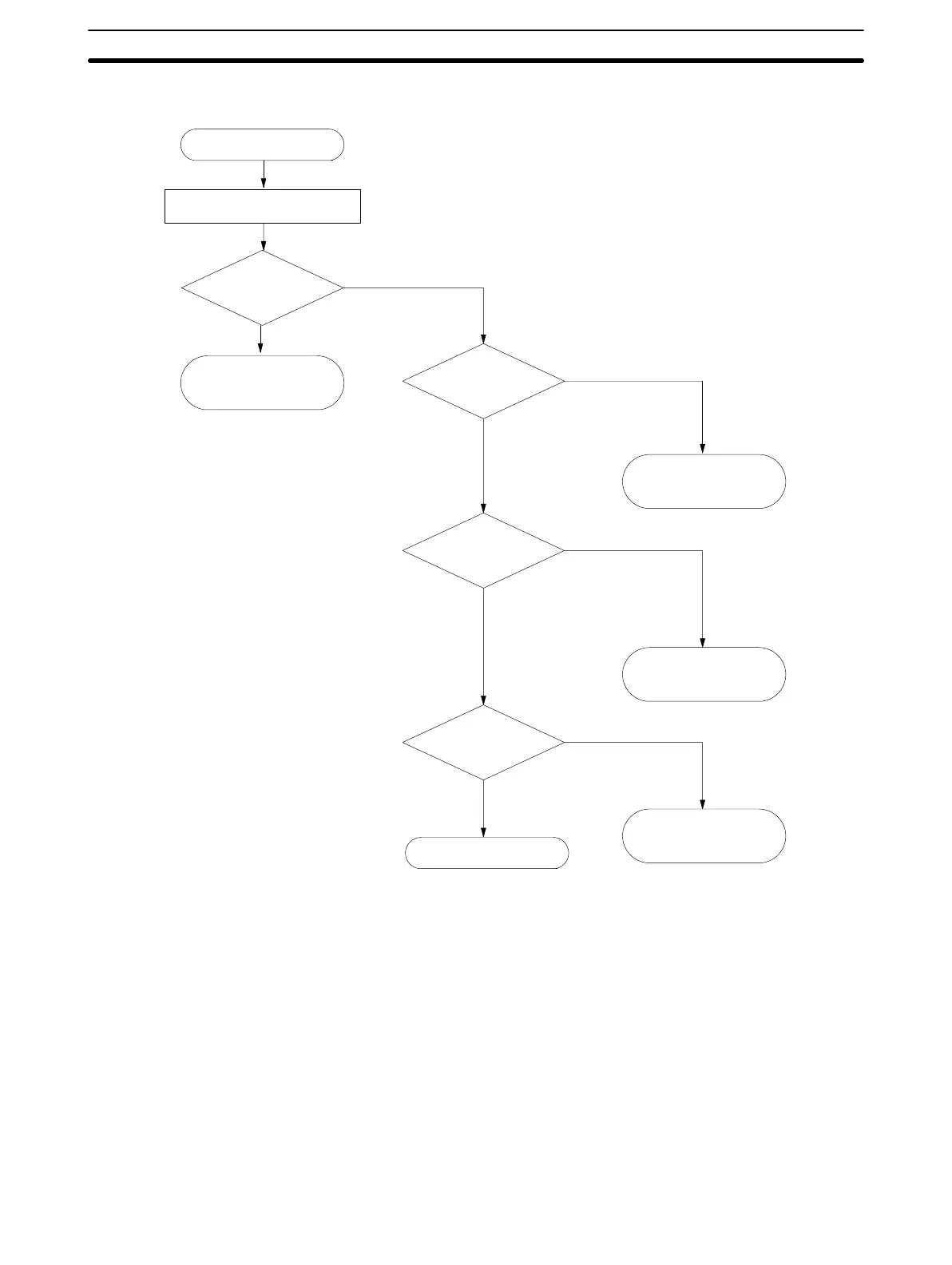

6-6-3 Host Communications Troubleshooting Flowchart
Is response
normal?
Issue TS command from host
START
NO
YES
Local Communications
Troubleshooting
Flowchart
Is
communications
format OK?
Is connector wiring
OK?
Are host
operations OK?
YES
Correct communications
format
NO
NO
Correct host program
or replace host computer
NO
YES
YES
OK
Repair connector
wiring
